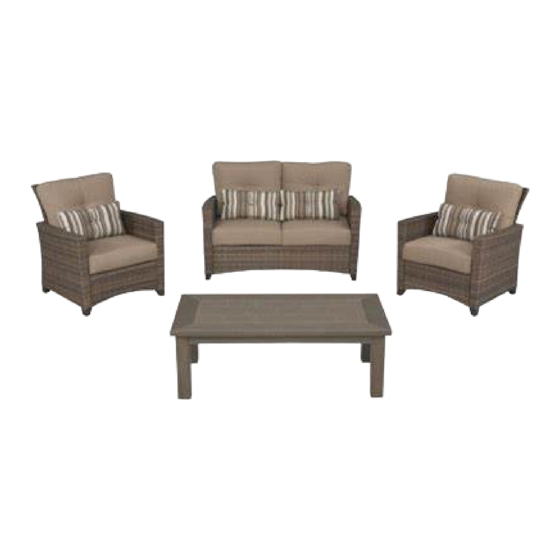

TACANA 4-PIECE WOVEN DEEP SEATING SET
Questions, problems, missing parts? Before returning to the store
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!

Advertisement

loading
Need help?

Need help?

Do you have a question about the FRS80413-ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HAMPTON BAY FRS80413-ST

Summary of Contents for HAMPTON BAY FRS80413-ST

  • Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

  • Page 2: Table Of Contents

    Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Safety Information ............2 Planning Assembly ..............3 Hardware Included ..............3 Product Caution ..............2 Chair Package Contents ............4 Safety Warnings ..............2 Loveseat Package Contents .............5 Warranty ................
  • Page 3 M6x20 combination bolt 14+1 M6x35 combination bolt 12+1 M6x40 combination bolt M6x90 combination bolt Hex wrench Wrench HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 4 Part Description Quantity t f e Seat Backrest Seat cushion...
  • Page 5 Part Description Quantity t f e Seat cushion Back cushion Pillow Loveseat seat Loveseat backrest Corner brace HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.

  • Page 6: Pre-Assembly

    Pre-Assembly (continued) TABLE PACKAGE CONTENTS Part Description Quantity Table top Table leg...
  • Page 7 Connecting the right arm to the backrest Place the right arm (A) on a soft surface. Align the holes on the right side of the backrest (D) to the holes on the right arm (A). Insert an M6x20 combination bolt (AA) into the lower aligned hole near the foot. Insert an M6x35 combination bolt (BB) into the upper aligned hole.
  • Page 8 Connecting the left arm to the backrest Place the left arm (B) on a soft surface. Align the holes on the left side of the backrest (D) to the holes on the left arm (B). Insert an M6x20 combination bolt (AA) into the lower aligned hole near the foot. Insert an M6x35 combination bolt (BB) into the upper aligned hole.
  • Page 9 Connecting the seat to the right arm Insert the seat (C) between the right arm (A) and the left arm (B). Attach the seat (C) to the right arm (A) by inserting M6x40 combination bolts (CC) into the aligned holes under the seat (C). Insert an M6x20 combination bolt (AA) into the aligned holes near the front foot.
  • Page 10 Connecting the seat to the left arm Attach the seat (C) to the right arm (A) by inserting M6x40 combination bolts (CC) into the aligned holes under the seat (C). Insert an M6x20 combination bolt (AA) into the aligned holes near the front foot.
  • Page 11 Tightening the bolts Once all of the bolts are in place, fully tighten the bolts using the hex wrench (EE). Turn the chair right side up. Ensure all connections are secure before use. Place the seat cushion (E), the back cushion (F) and the pillow (G) to nish the assembly of the chair. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 12 Connecting the right arm to the loveseat backrest Align the holes on the right side of the loveseat backrest (I) to the holes on the right arm (A). Insert an M6x20 combination bolt (AA) into the lower aligned hole neer the foot. Insert an M6x35 combination bolt (BB) into the upper aligned hole.
  • Page 13 Connecting the left arm to the loveseat backrest Align the holes on the left side of the loveseat backrest (I) to the holes on the left arm (B). Insert an M6x20 combination bolt (AA) into the lower aligned hole near the foot. Insert an M6x35 combination bolt (BB) into the upper aligned hole.
  • Page 14 Connecting the loveseat seat to the rigth arm Turn the right arm (A), the left arm (B) and the loveseat backrest (I) upside down on a soft place. Attache the loveseat seat (H) to the right arm (A) by inserting M6x40 combination bolts(CC) into the aligned holes under the loveseat seat (H).
  • Page 15 Connecting the loveseat seat to the left arm Attached the loveseat seat (H) to the left arm (B) by inserting M6x40 combination bolts (CC) into the aligned holes under the loveseat seat (H). Insert an M6x20 combination bolt (AA) into the lower aligned hole near the foot. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 16 Securing the loveseat seat to the loveseat backrest Secure the loveseat seat (H) to the loveseat backrest (I) by inserting M6x20 combination bolts (AA) through the corner brace (J) into the loveseat seat (H) and the loveseat backrest (I).
  • Page 17 Tightening the bolts Once all of the bolts are in place, fully tighten the bolts using the hex wrench (DD). Turn the loveseat right side up. Ensure all connections are secure before use. Place the seat cushions (F), the back cushions (E) and the pillows (G) to nish the assembly of the loveseat. HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON for further assistance.
  • Page 18 Table Assembly Connececting the table legs to the table top Place the table top (K) upside down on a soft place. Attach each of the table legs (L ) to the table top (K) using M8x90 combination bolts (DD). NOTE: Loosely tighten the bolts using the wrench (FF).

  • Page 19: Care And Cleaning

    Table Assembly (continued) Tightening the bolts Once all of the bolts are in place, fully tighten the bolts using the wrench (FF). Turn the Table right side up. Ensure all connections are secure before use. Care and Cleaning □ For best results, clean the frame and cushions with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate.
  • Page 20 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use.
