Item # 1001 215 085
1001 215 084
Model # FRS80937A-STG
FRS80937A-ST
USE AND CARE GUIDE

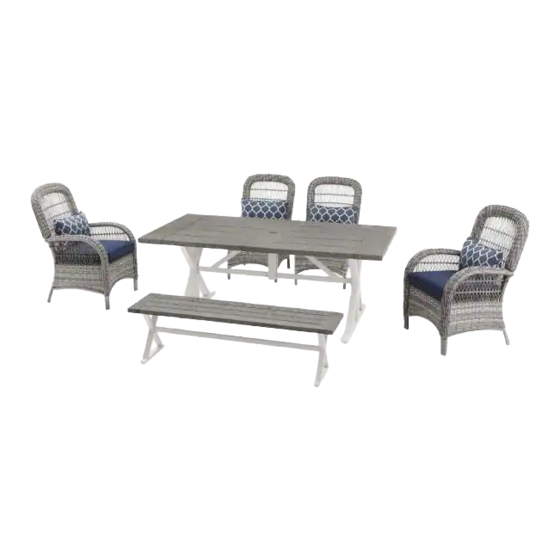

BEACON PARK 6 PIECE DINING SET - TABLE
Questions, problems, missing parts? Before returning to the store,
call Hampton Bay Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HOMEDEPOT.CA
THANK YOU
y through the purchase of this dining table. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY BEACON PARK FRS80937A-STG
Summary of Contents for HAMPTON BAY BEACON PARK FRS80937A-STG

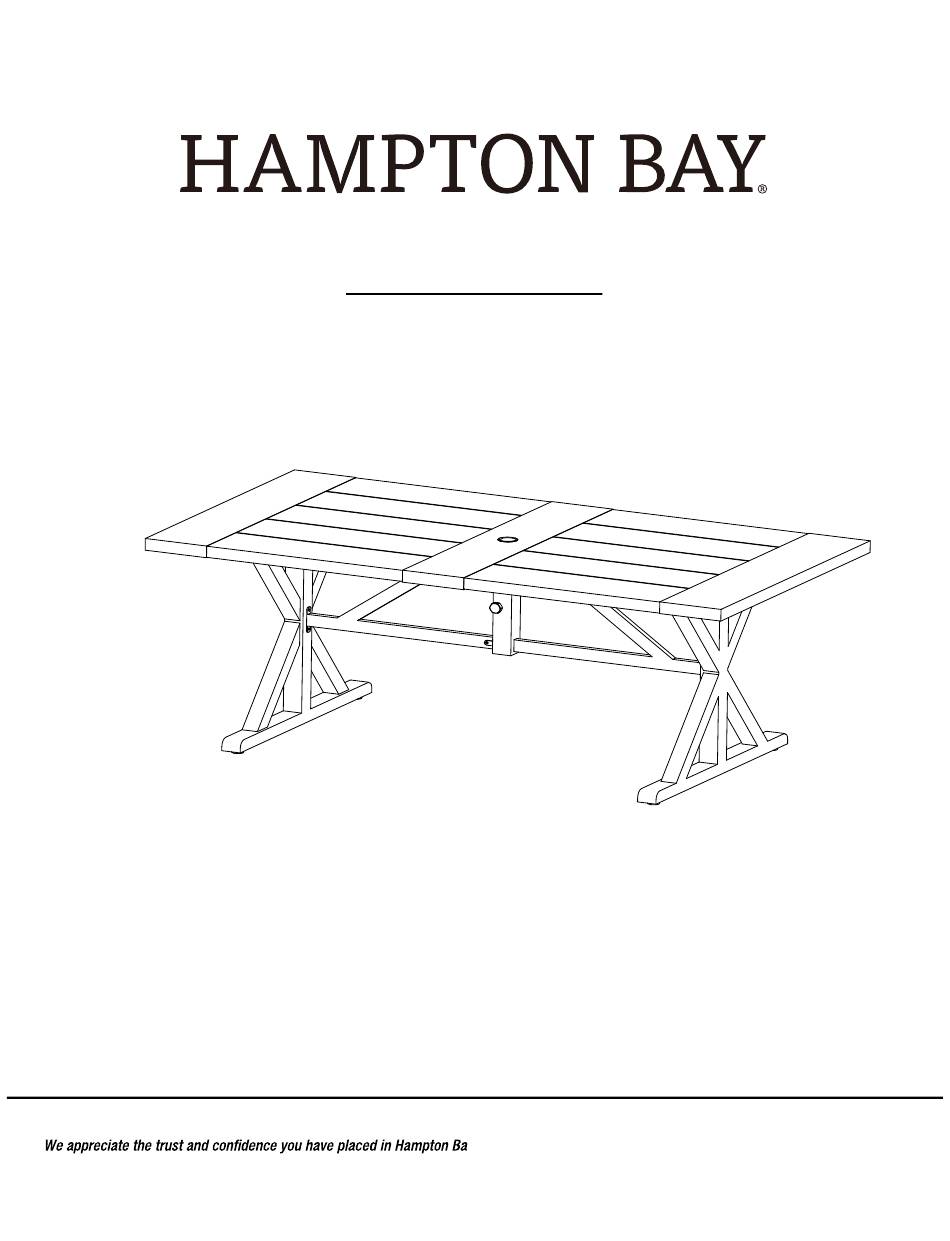

- Page 1 We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Hampton Bay!
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Important Safety Instructions ........2 Planning Assembly ..............3 Save These Instructions ............2 Hardware Included ..............3 Read All Instructions Before Use ..........2 Package Contents ..............4 Warranty ................ -
Page 3: Warranty
Warranty 2 YEAR LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for two WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover s warranty. -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Part Description Quantity Table top Table top with umbrella hole Table leg Leg connector 1 Leg connector 2 Umbrella cap Knob... -
Page 5: Assembly
Assembly CONNECTING THE TABLE TOPS Place the table tops upside down on a soft surface. Attach the table top (A) to the table top with umbrella hole (B) using M6x40 combination bolts (CC), M6 washers (EE) and M6 nuts (FF). Do not fully tighten the bolts at this step. - Page 6 Assembly (continued) ATTACHING THE TABLE LEGS TO THE TABLE TOP Attach the table legs (C) to the assembled table top using M6x30 combination bolts (BB). Do not fully tighten the bolts at this step. NOTE : Loosely tighten all bolts using the hex wrench (HH).
- Page 7 Assembly (continued) ATTACHING THE LEG CONNECTORS TO THE TABLE LEG Attach the leg connector 1 & 2 (D & E) to the table legs (C) using M6x15 combination bolts (AA). Do not fully tighten the bolts at this step. NOTE : Loosely tighten all bolts using the hex wrench (HH). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
- Page 8 Assembly (continued) CONNECTING THE LEG CONNECTOR 1 TO THE TABLE TOP WITH UMBRELLA HOLE Connect the leg connector 1 (D) to the table top with umbrella hole (B) using M6x55 combination bolt (DD). Do not fully tighten the bolts at this step. NOTE : Loosely tighten all bolts using the hex wrench (HH).
- Page 9 Assembly (continued) CONNECTING THE LEG CONNECTORS Connect the leg connector 1 (D) to the leg connector 2 (E) using the knob (G). Place the umbrella cap (F) on the table top with umbrella hole (B). HOMEDEPOT.CA Please contact 1-855-HD-HAMPTON for further assistance.
-
Page 10: Care And Cleaning
Assembly (continued) CHECKING THE TABLE Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (HH) and the wrench (GG). Turn the table right side up. Ensure all connections are secure before use. Care and Cleaning For best results, clean the table with a damp cloth and dry thoroughly. - Page 11 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HOMEDEPOT.CA Retain this manual for future use. Factory ID # FTS61192...
