Item # 1003 954 762
1003 954 782
Model # FRS80937A
FRS80937AG

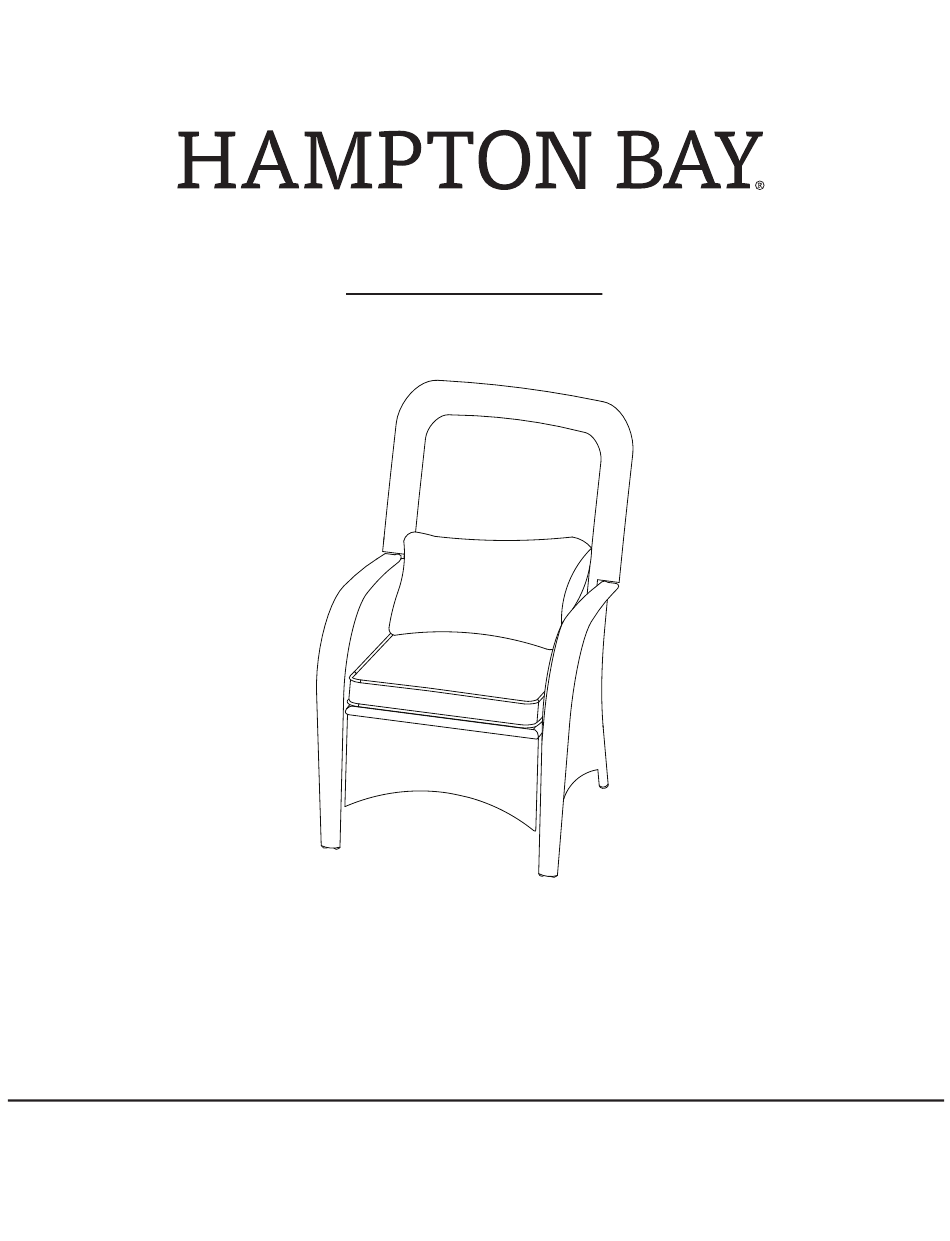

USE AND CARE GUIDE

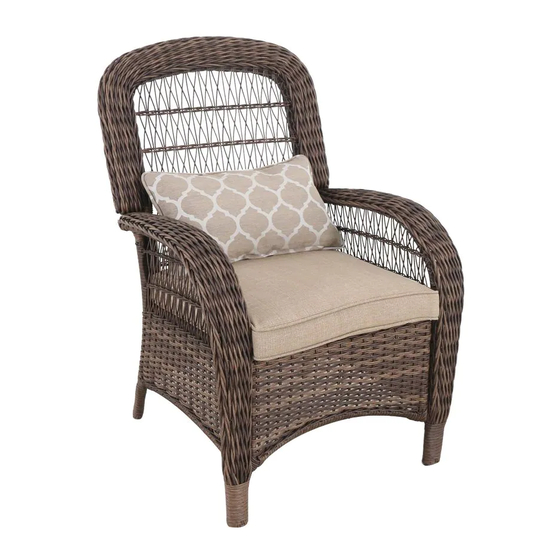

BEACON PARK 2-PACK CAPTAIN DINING CHAIR
Questions, problems, missing parts? Before returning to the store
call Hampton Bay Customer Service.
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HAMPTON
HAMPTONBAY.COM
THANK YOU
We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Hampton Bay!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HAMPTON BAY Beacon Park FRS80937A
Summary of Contents for HAMPTON BAY Beacon Park FRS80937A
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Hampton Bay through the purchase of this chair. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
-
Page 2: Table Of Contents
Table of Contents Table of Contents ............2 Pre-Assembly ..............3 Planning Assembly ..............3 Important Safety Instructions ........2 Hardware Included ..............Save These Instructions ............2 Package Contents ..............Read All Instructions Before Use ..........2 Assembly ................ -
Page 3: Warranty
Warranty 3 YEAR FRAME AND 3 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years, and a three year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. -
Page 4: Package Contents
Pre-Assembly (continued) PACKAGE CONTENTS Description Quantity Part Right arm Left arm Seat Back Seat cushion Accent pillow... -
Page 5: Assembly
Assembly CONNECTING THE SEAT TO THE LEFT ARM Attach the seat (C) to the left arm (B) using M6x20 combination bolts (AA). Do not fully tighten all the bolts at this step. NOTE : Loosely tighten all bolts using the hex wrench (CC). HAMPTONBAY.COM Please contact 1-855-HD-HAMPTON... - Page 6 Assembly (continued) CONNECTING THE SEAT AND THE LEFT ARM TO THE BACK Attach the seat (C) to the back (D) using M6x50 combination bolts (BB). Attach the left arm (B) to the back (D) using an M6x20 combination bolt (AA). Do not fully tighten all the bolts at this step.
- Page 7 Assembly (continued) CONNECTING THE SEAT AND THE BACK TO THE RIGHT ARM Attach the seat (C) to the right arm (A) using M6x20 combination bolts (AA). Attach the back (D) to the right arm (A) using an M6x20 combination bolt (AA). Do not fully tighten all the bolts at this step.
- Page 8 Assembly (continued) CONNECTING THE ARMS TO THE BACK Connect the arms (A & B) to the back (D) using M6x50 combination bolts (BB). Do not fully tighten the bolts at this step.
-
Page 9: Care And Cleaning
Assembly (continued) TIGHTENING THE BOLTS Once all of the bolts are in place, fully tighten the bolts using the hex wrench (CC). Place the seat cushion (E) and the accent pillow (F) to finish the assembly of the chair. Ensure all connections are secure before use. Care and Cleaning For best results, clean the chair with a damp cloth and dry thoroughly. - Page 10 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service. 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. Factory chair ID # FRS80937A...
