Item # 1006 572 478

Model # FRS80433DR-ST

Scan for easy 3D instructions

Tap. Zoom. Rotate

interactive instructions on the BILT app.

USE AND CARE GUIDE

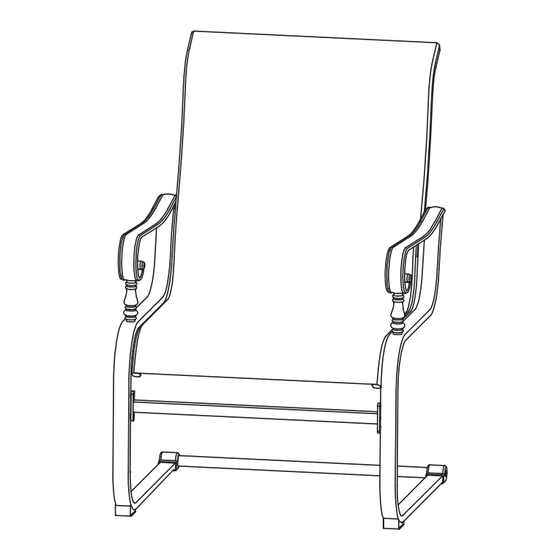

GLENRIDGE FALLS 7PC DINING SET - CHAIR

Questions, problems, missing parts? Before returning to the store,

call Hampton Bay Customer Service

8 a.m. - 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday

1-855-HD-HAMPTON

HAMPTONBAY.COM

THANK YOU

We appreciate the trust and conﬁdence you have placed in Hampton Bay through the purchase of this chair. We strive continually to create

quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.

Thank you for choosing Hampton Bay!

Need help?

Do you have a question about the GLENRIDGE FALLS FRS80433DR-ST and is the answer not in the manual?

Questions and answers

Summary of Contents for HAMPTON BAY GLENRIDGE FALLS FRS80433DR-ST

Page 1 THANK YOU We appreciate the trust and conﬁdence you have placed in Hampton Bay through the purchase of this chair. We strive continually to create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Page 2 Table of Contents Table of Contents........2 Pre-Assembly.
Page 3 Warranty 3 YEAR FRAME AND 2 YEAR FABRIC LIMITED WARRANTY WHAT IS COVERED We warrant the frames to be free of manufacturing defects to the original purchaser for three years, and a two year limited warranty for the fabric. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center.
Page 4 Pre-Assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x15 Combination Bolt 24+1 M6x30 Combination Bolt 36+1 M6x25 Bolt 12+1 Hex Wrench PACKAGE CONTENTS Part Description Quantity Left Arm Right Arm Sling Bucket Connector Bar Support Bar...
Page 5 Assembly Connecting the Sling Bucket and the Connector Bar to the Right Arm Place the right arm (B) on a soft surface. Attach the sling bucket (C) to the right arm (B) using M6x30 combination bolts (BB). Attach the connector bar (D) to the right arm (B) using M6x15 combination bolts (AA). Do not tighten all bolts at this step.
Page 6 Assembly (continued) Securing the Support Bar Turn the chair right side up. Tighten the support bar (E) to the left arm (A) and the right arm (B) using M6x25 bolts (CC). Do not tighten all bolts at this step. Tightening All the Bolts Once all of the bolts are in place, fully tighten all the bolts using the hex wrench (DD).
Page 7 Care and Cleaning For best results, clean the frame and fabric with a damp cloth and dry thoroughly. This will help prevent mildew by removing dirt particles that may accumulate. Do not clean with abrasive materials, bleach, or solvents. Store the chair in a dry sheltered place when not in use. Keep the chair away from re, extreme heat, freezing conditions, and inclement weather such as rain, hail, sleet, snow, or wind.
Page 8 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certiﬁcation use only...
Page 9 THANK YOU We appreciate the trust and conﬁdence you have placed in Hampton Bay through the purchase of this table. We strive continually to create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Page 10 Table of Contents Table of Contents........2 Pre-Assembly.
Page 11 Warranty 3 YEAR FRAME LIMITED WARRANTY WHAT IS COVERED We warrant the frame to be free of manufacturing defects to the original purchaser for three (3) years. WHAT IS NOT COVERED It remains the customer’s responsibility for freight and packaging charges to and from our service center. This warranty does not cover commercial use, hardware, acts of nature, re, freezing, and abusive use.
Page 12 Pre-Assembly (continued) HARDWARE INCLUDED NOTE: Hardware not shown to actual size. Part Description Quantity M6x45 Combination Bolt Hex Wrench PACKAGE CONTENTS Part Description Quantity Umbrella Ring Cover Umbrella Ring Table Top Support Tube Table Leg...
Page 13 Assembly Opening the Folded Table Top Place the folded table top (C) on a soft surface. Fully open the folded table top, as shown below. Attaching the Support Tubes to the Table Top Attach the support tubes (D) to the table top (C) using M6x45 combination bolts (AA). Once all of the bolts are in place, fully tighten the bolts using the hex wrench (BB).
Page 14 Assembly (continued) Attaching the Table Legs to the Table Top Attach the table legs (E) to the table top (C), as shown below. Tightening the Table Legs to the Table Top Fully tighten the table legs (E) to the table top (C) in clockwise direction.
Page 15 Assembly (continued) Checking the Table Turn the table right side up. Insert the umbrella ring (B) and place the umbrella ring cover (A) on the table top to nish the assembly of the table. Ensure the table is tightly assembled and stable before use. Care and Cleaning For best results, clean the table with a damp cloth and dry thoroughly.
Page 16 Questions, problems, missing parts? Before returning to the store, call Hampton Bay Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-855-HD-HAMPTON HAMPTONBAY.COM Retain this manual for future use. For certiﬁcation use only...
