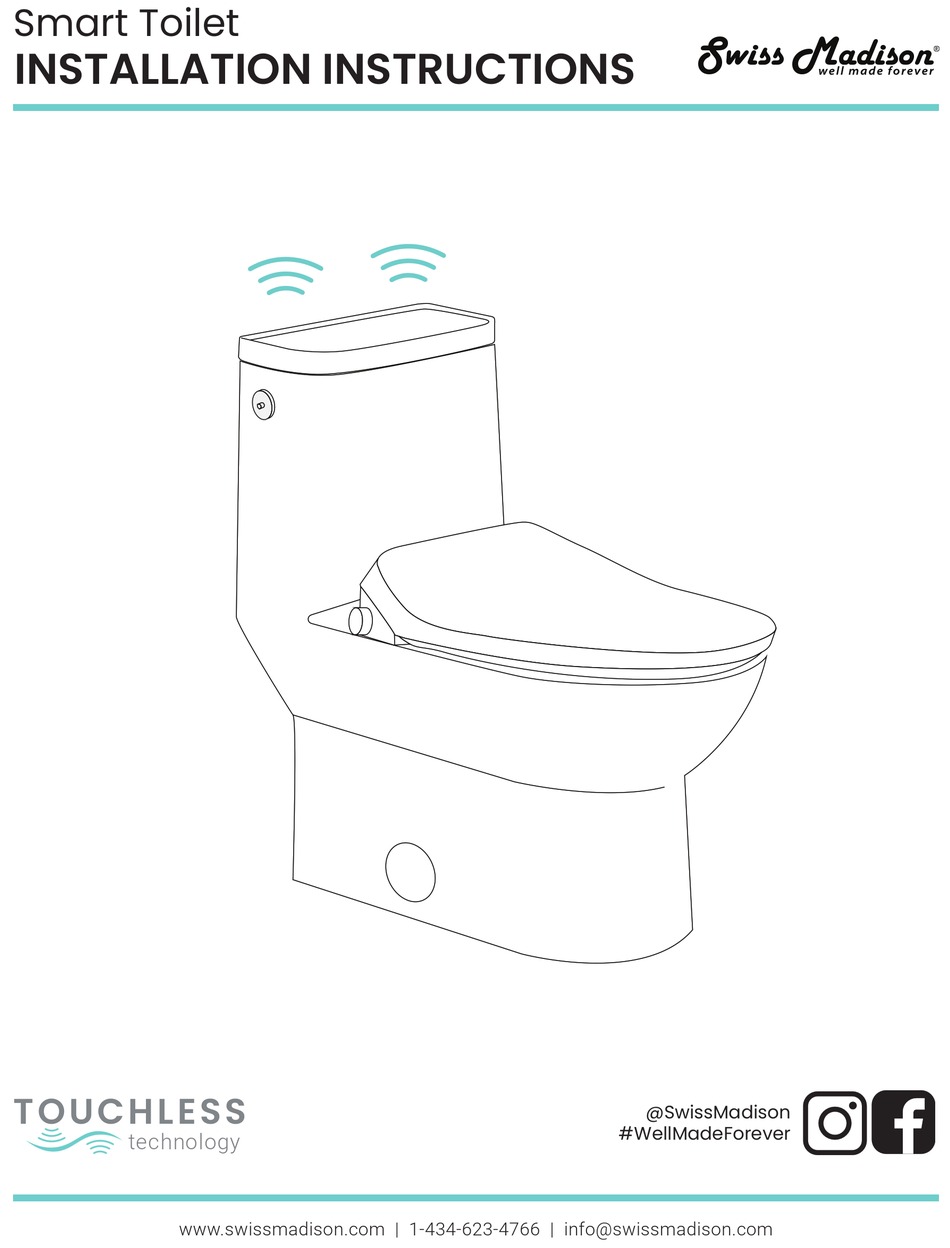

- Page 1 Smart Toilet wiss adison INSTALLATION INSTRUCTIONS ® T OU C HL ESS @SwissMadison #WellMadeForever technology www.swissmadison.com | 1-434-623-4766 | info@swissmadison.com...
-
Page 2: Installation Instructions
· · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection. - Page 3 ONE-PIECE TOILET INSTALLATION INSTRUCTIONS 1. Turn Off Water Supply 2. Rough-In the Toilet · Close toilet supply valve and flush tank · Measure the wall from behind the toilet to the completely, use towel to remove excess water. middle of the closet bolt. Your rough-in ·...
- Page 4 · · The step-by-step guidelines in the installation instructions are a general reference. Should there be any discrepancies, Swiss Madison cannot be held liable. It is recommended to install all Swiss Madison products by hiring a licensed professional. · Read installation and maintenance instructions thoroughly before installing. Be sure to use proper tools and always wear proper personal safety accessories for your protection.
- Page 5 SMART SEAT BIDET INSTALLATION INSTRUCTIONS When using electrical products, especially when children are present, basic safety precautions should always be followed: 1. The appliance is not to be used by people (including children) with reduced physical, sensory, mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
-
Page 6: Grounding Instructions
SMART SEAT BIDET INSTALLATION INSTRUCTIONS CAUTION - Failure to follow the instructions may cause body injury or property damage. 1. Do not install or use the product in wet places such as a steam room etc. 2. It is recommended to use a water-proof electrical outlet which should be installed in a place where it cannot easily get wet. 3. -
Page 7: Technical Specifications
SMART SEAT BIDET TECHNICAL SPECIFICATIONS SM-STS21 Water Inlet Side Power Cord Inlet Side Net Weight 7.05 lb. Rated Voltage 120V~, 60Hz Rated Power Consumption 960W (When entering water temperature 15°C,flow rate 600ml/min) Maximum Power Consumption 1450W/120V Length of Power Cord 39.4”... - Page 8 SMART SEAT BIDET TECHNICAL SPECIFICATIONS 1. Remove Old Seat 2. Install Mounting Hardware · Remove old seat according to Installation A: manufacturer’s instructions. · Insert expansion bolts into ceramic holes. · Place the fixing bracket over the expansion bolts, followed by the adjustment sheets then screws. ·...
-
Page 9: Knob Functions
SMART SEAT BIDET FUNCTIONS DEFAULT SETTINGS · When power is on the product will self test, when self test is over it will make a sound to notify the user it is ready to be used. · The water temperature default is about 95°F. ·... -
Page 10: Function Settings
SMART SEAT BIDET FUNCTIONS FUNCTION SETTINGS · The knob lamp can be turned off by pressing the water temperature and seat temperature buttons at the same time. Water temperature Seat temperature adjustment indicator adjustment indicator Prompt °F °F Light OFF Lowlighted Highlighted Water temperature Seat temperature... -
Page 11: Surface Cleaning
SMART SEAT BIDET MAINTENANCE SURFACE CLEANING · Turn off power supply before cleaning. · Wipe surface with a sponge or soft cloth dampened with room temperature water or natural detergent. · Do not replace toilet seat until ceramic toilet is completely washed, it may corrode the surface of the product. NOZZLE MAINTENANCE ·... -
Page 12: Troubleshooting
SMART SEAT BIDET TROUBLESHOOTING PROBLEM CAUSE SOLUTION Cool water should be It is normal, and provides normal Spray tube extends released from front end too slowly flushing about 5s later. before flushing. Insufficient water Knob is not completely turned Increase knob regulating angle. amount Insufficient water Adjust water temperature to... - Page 13 SMART SEAT BIDET TROUBLESHOOTING PROBLEM CAUSE SOLUTION Seat temperature is set at low Adjust seat temperature to Seat temperature is not sufficient gear. higher gear. Seat temperature is set at high Adjust seat temperature to Seat temperature is too high gear.
-
Page 14: One-Year Limited Warranty
(including, without limitation, costs associated with ‘professionals’ or ‘experts’, investigations, audits, analyses, attorneys and any other professional/hired services). The Swiss Madison® warranty is a comprehensive and explicit limit of liability. All items not disclosed within the warranty are not addressable within the responsibility of Swiss Madison®. Certain states have variances regarding implied warranties;...
