Tracer Dream
User's manual of MPPT solar charge
controller
Max PV input Voltage 100V
12V/24V 20A 40A
Dear Users:
Thank you for selecting our product. Please read this manual
carefully before you use this product.

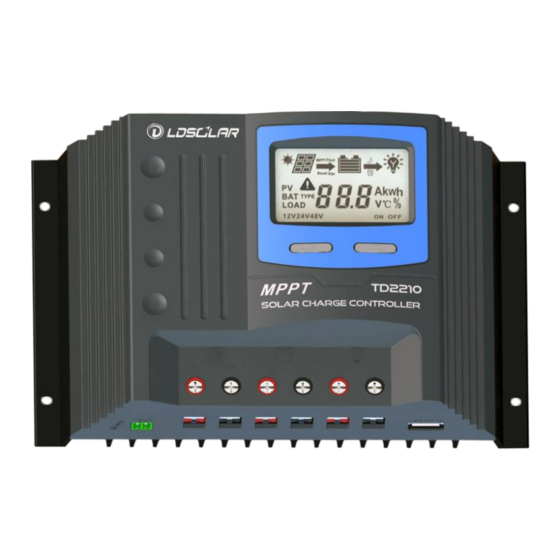

TD2210/TD2410
Thank you for using MPPT solar charge controllers, this series product
adopted positive design with LCD displaying. Base on MPPT technology,
which track the maximum power point of PV array exactly and quickly in any
condition. Obtain Max power from solar panel anytime, increased the
charging efficiency of solar panel. Used for communication system, off-grid
solar system, solar street light system and field monitoring. Excellent digital
protect function and professional connector maximum degree avoid damage
due to system fault or installation error.
Features:
Advanced MPPT technology, fast and stable track the Maximum Power
Point, tracking accuracy 99.5%
Adopt Synchronous Rectifier Technology, significantly improve the
transfer efficiency of circuit, maximum 98%.
accurate identification and tracking multi peak power point function
PV array limited power input function, to ensure that the controller does
not overload operation under any conditions.
Widely range of Maximum Power Point of PV array, Max PV input
Voltage 100V
12/24VDC system voltage automatic recognition
Humanized LCD displaying, dynamic display operation data and
working state
Built-in operation log, account system working state
Multi load control mode: Normal Mode, Sensor Mode, Timer and
Sensor Mode
3 stages charging mode, Sealed, Gel, Flooded 3 types battery charging
procedure selection
Temperature Compensation Function
Accumulation function of charging and discharging, actual time display
power generation function
Advertisement
Table of Contents
Related Manuals for Ldsolar TD2210
Summary of Contents for Ldsolar TD2210
- Page 1 Thank you for using MPPT solar charge controllers, this series product adopted positive design with LCD displaying. Base on MPPT technology, Tracer Dream TD2210/TD2410 which track the maximum power point of PV array exactly and quickly in any condition. Obtain Max power from solar panel anytime, increased the User’s manual of MPPT solar charge...
- Page 2 Fullest digital protection functions: Reverse connection, Overcharging, Over-discharging, Over voltage, Overload, Short circuit. 16mm connectors, red and black connector distinguish plus and minus MPPT Technology Introduction MPPT means Maximum Power Point Tracking, it is more advanced solar charging mode. In view of nonlinearity feature of solar panels, there is a Maximum Power output Point(P ）, and this point under changing light intensity and temperature.
-
Page 3: Important Safety Information
exceed 100V, otherwise it will trigger protection or damage to the controller. Important Safety Information Installation of Instruction This controller is base on solar panel feature researching, if use other power supply instead of solar panel, the controller may cause fault. Controller Fixed ... -
Page 4: Battery Charging Process
As figure, first connected the battery to controller correct poles. In order to avoid short circuit, please screw the cable of battery to the controller in advance, then 4) Insert type external temperature sensor: external temperature sensor used for connected to battery poles secondly. If your connection is correct, the LCD temperature compensation, please closed to battery as nearer as possible, if the displaying will show battery voltage and other technical data. -
Page 5: Main Interface
and gradually reduce the charging current, the boost charging continued 2H then Data about battery go to float charging mode. (Due to the load capacity and generated changing, the Battery Type controller can't keep constant voltage charging, the constant voltage charging time will be accumulated, accumulate 2hours cancel boost charging mode. - Page 6 interface will be flash, here is set up state. Loose the button, press “←”or“→”could plus or minus the data. After confirm the needed data, long press“←”≥5S, the data save and come out set up state. If no any operation inner 20s, automatically back to main interface.
-
Page 7: Protection Function
supplier suggestion, or unreasonable adjust will destroy battery. Battery Type Protection Function Over Voltage Protection 16.5V 16.5 V 16.5 V Fault Symbol Indication Charging Limited 15.0 V 15.0 V 15.0 V State Symbol Condition Over Voltage Reconnection 15.0 V 15.0 V 15.0 V Boost... -
Page 8: Technical Data
Fault and Handling Technical Data Fault Phenomenon Possible reason Solution Mode TD2210 TD2410 Battery Low System Voltage 12V/24V Please confirm the voltage of Battery Reverse LCD no display after battery reconnect PV Max Input Voltage 100V connected with battery...
