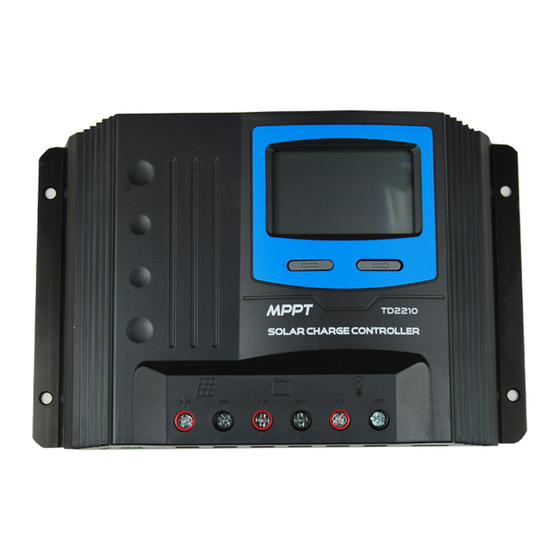

Ldsolar Tracer Dream TD2210 User Manual

Tracer Dream
User's manual of MPPT solar charge
controller
Max PV input Voltage 100V
12V/24V 20A 40A
Dear Users:
Thank you for selecting our product. Please read this manual
carefully before you use this product.
Thank you for choosing MPPT solar charge controller. This series product
adopts positive design with LCD displaying. Based on advanced MPPT technology
which track the maximum power point of PV array accurately and quickly under any
environment, MPPT solar charge controller can constantly obtain Max power from
solar panel, thus increasing the charging efficiency of solar panel. It can be used for
communication system, off-grid solar system, solar street light system and field
monitoring and so on. Excellent digital protect function and professional connector
TD2210/TD2410
can avoid damage, due to system fault or installation error, in maximum degree.

Features:

Advanced MPPT technology, can rapidly and steadily track the Maximum

Power Point, tracking accuracy is 99.5%
Adopt Synchronous Rectifier Technology, (dramatically) improving the

transfer efficiency of circuit, maximum 98%.
Accurate identification and tracking multi peak power point function

PV array limited power input function, ensuring that the controller does not

overload operation under any conditions.
Widely voltage range of PV array Maximum Power Point, Max PV input

Voltage to 100V
12/24VDC system voltage automatic recognition

Humanized LCD displaying, dynamic display operation data and working

state
Built-in operation log, recording system working state

Varied load control mode: Normal Mode, Sensor Mode, Timer and Sensor

Mode
3 stages of charging mode. 3 types of battery, Sealed, Gel, and Flooded,

alternative charging procedure
Temperature Compensation Function

Function of accumulated charging and discharging power as well as real-time

display power generation.
Fullest digital protection functions: Reverse connection, Overcharging,

Over-discharging, Over voltage, Overload, Short circuit.
Unique 16mm2 connectors, red and black connectors distinguish positive and

negative poles

MPPT Technology Introduction

MPPT means Maximum Power Point Tracking. It is a more advanced solar
charging mode. According to the nonlinearity feature of solar panels, there is a
Maximum Power output Point(P
Max
changing light intensity and temperature. Using traditional PWM solar charge
controller, the voltage of solar panel will be clamped by battery, and the voltage can
not be maintained at P to charge the battery, which greatly reduce the utilization
Max
rate of solar panels. MPPT solar charge controller adopts efficient DC-DC power
conversion technology, combining with advanced algorithm to track the MPP of
solar panels in (real time) to obtain Max power from solar panel for charging battery.
Compared with PWM controller, MPPT solar charge controller could increase the
energy utilization rate around 15%-30%.
The Vpp of solar panel used for 12 system is 17V. When the 12V battery is
charged by solar panel, the solar pane voltage will be clamped by battery as a result
of the constant current characteristic of solar panels. If the max charging current is
10A at this time, then the input power to the battery= 10A x 12V =120W, which not
yet completely achieve the maximum utilization rate of solar panels. However,
MPPT controller could constantly adjust the voltage and current of solar panels to
reach Max output power, and therefore the input power to the battery= 9A x 17V x
）on its power curve, and this point under
