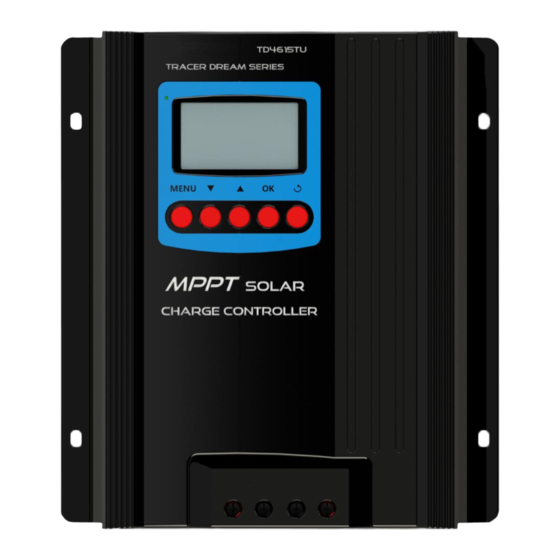

- Page 1 Tracer Dream series User’s manual of MPPT solar charge controller MAX PV Input voltage 150V 12V/24V/48V 50A 60A Dear Users: Thank you for selecting our product. Please read this manual carefully before you use this product.
-
Page 2: Safety Tips
Safety Tips The input voltage of this controller is high, non-standard operation will cause great damage to user. Please read this manual carefully and finish the safety operation regulation before using this controller. Please read all product safety caution and operation instruction carefully in this manual. ... -
Page 3: Product Feature
Temperature Compensation Function(After the lithium battery is selected, there is no temperature compensation function). Accumulation function of charging and discharging, actual time display power generation function. Fullest digital protection functions: Reverse connection, Overcharging, Over-discharging, Over voltage, Overload, Short circuit, Overtemperature. ... -
Page 4: Description Of Accessories
Name Name Charging Status Indicator Battery negative with backlight LCD Battery positive Button Operation area RS485 interface① Mounting hole External temperature interface② PV positive Dry contact③ PV negative radiator Connect PC or expand Bluetooth WIFI module Connect external temperature sensor to sample battery temperature data. Switch for controlling battery electrical equipment according to the voltage value of battery. - Page 5 Solar panels will produce high voltage when there is light. Do not touch or short circuit wires and terminals. When operation is required, pay attention to dry hands, use insulating tools and stand on dry ground. Only lead acid or Lithium batteries that meet the control range of this controller can be charged. For special batteries, please consult with technical personnel.
- Page 6 greater than the rated charging power of the controller If the input power exceeds the rated charging power of the controller, the controller will charge the battery according to the rated charging power of the controller. The actual operation power of PV array meets the following conditions: ...
- Page 7 charging voltage. The temperature sensor should be close to the battery and away from other heat sources, otherwise, the controller will have wrong action. Note: the interface of temperature sensor and exposed copper part of wire shall not contact any other live conductor, otherwise the controller will be damaged 4) The interface of dry contact is on terminal 11 of controller.
-
Page 8: Battery Charging Process
together. If the solar system needs to be grounded, you can choose any negative grounding! 8. About LCD backlight If no key is pressed, the LCD backlight will turn off automatically after 15s. When any key is pressed, the LCD backlight will turn on again. Battery Charging Process effectively extended. - Page 9 Battery Data about battery Battery Type Dry contact ON Dry contact OFF Dry contact Sensor and Timer mode output Dry contact Sensor mode output Contact LOAD Data about Dry contact Dry contact working mode Operation and Indication of controller Main Interface If no operation at main interface inner 10s, the main interface will cycle show battery voltage, PV array ...
- Page 10 At the menu interface press “▲”or“▼” could see the parameter, when reaching any parameter that can be set, press “OK” button to enter the parameter setting state, press “▲” or“▼” could adjust the value of the parameter. Long press “OK” button for 5s to save the setting data and exit the setting state or press “↺...
-
Page 11: Protection Function
system voltage. Protection Function Fault Symbol Indication State Symbol Condition LVD Protection Battery empty and Warning Flash together Battery Over Voltage Protection Battery full and Warning Flash together Controller Over Temperature Temperature symbol and Warning Flash together Protection Solar Panel Over Voltage Solar Panel symbol and Warning Flash together Protection The indicator lights flash... -
Page 12: Technical Data
Fault and Handling Fault Phenomenon Possible reason Solution Battery Low Please confirm the voltage of battery reconnect LCD no display after connected with Battery Reverse Connection the controller with battery firmly and correctly. battery The connection cut off ... - Page 13 Appendix一 Mechanical dimension drawing Uunit（mm）...
