Terminal Guard; Vertical Flues - Glow-worm cxi Installers Information

Advertisement

MINIMUM SITING DIMENSIONS FOR
FANNED FLUE TERMINALS POSITION
HORIZONTAL FLUES
A DIRECTLY BELOW AN OPENING, AIR BRICK,
OPENING WINDOWS
B ABOVE AN OPENING, AIR BRICK,
OPENING WINDOWS
C HORIZONTALLY TO AN OPENING,
AIR BRICK, OPENING WINDOWS
D BELOW GUTTER, DRAIN/SOIL PIPE
E BELOW EAVES
F BELOW A BALCONY OR CAR PORT
G FROM VERTICAL DRAIN PIPES AND
SOIL PIPES
H FROM INTERNAL/EXTERNAL CORNERS
*
H TO A BOUNDARY ALONGSIDE THE
TERMINAL
I
ABOVE ADJACENT GROUND OR
BALCONY LEVEL
*
J
FROM SURFACE OR A BOUNDARY
FACING THE TERMINAL
K FACING TERMINALS
L FROM OPENING (DOOR/WINDOW)
IN CAR PORT INTO DWELLING
M VERTICAL FROM A TERMINAL
N HORIZONTALLY FROM A TERMINAL

VERTICAL FLUES

P FROM ANOTHER TERMINAL
Q ABOVE ROOF LEVEL
R FROM ADJACENT OPENING WINDOW
S FROM ADJACENT WALL TO FLUE
2 Flue Location and Ventilation
MM
300
300
300
25
25
25
25
25
300
300
600
1200
1200
1500
300
600
300
1000
300

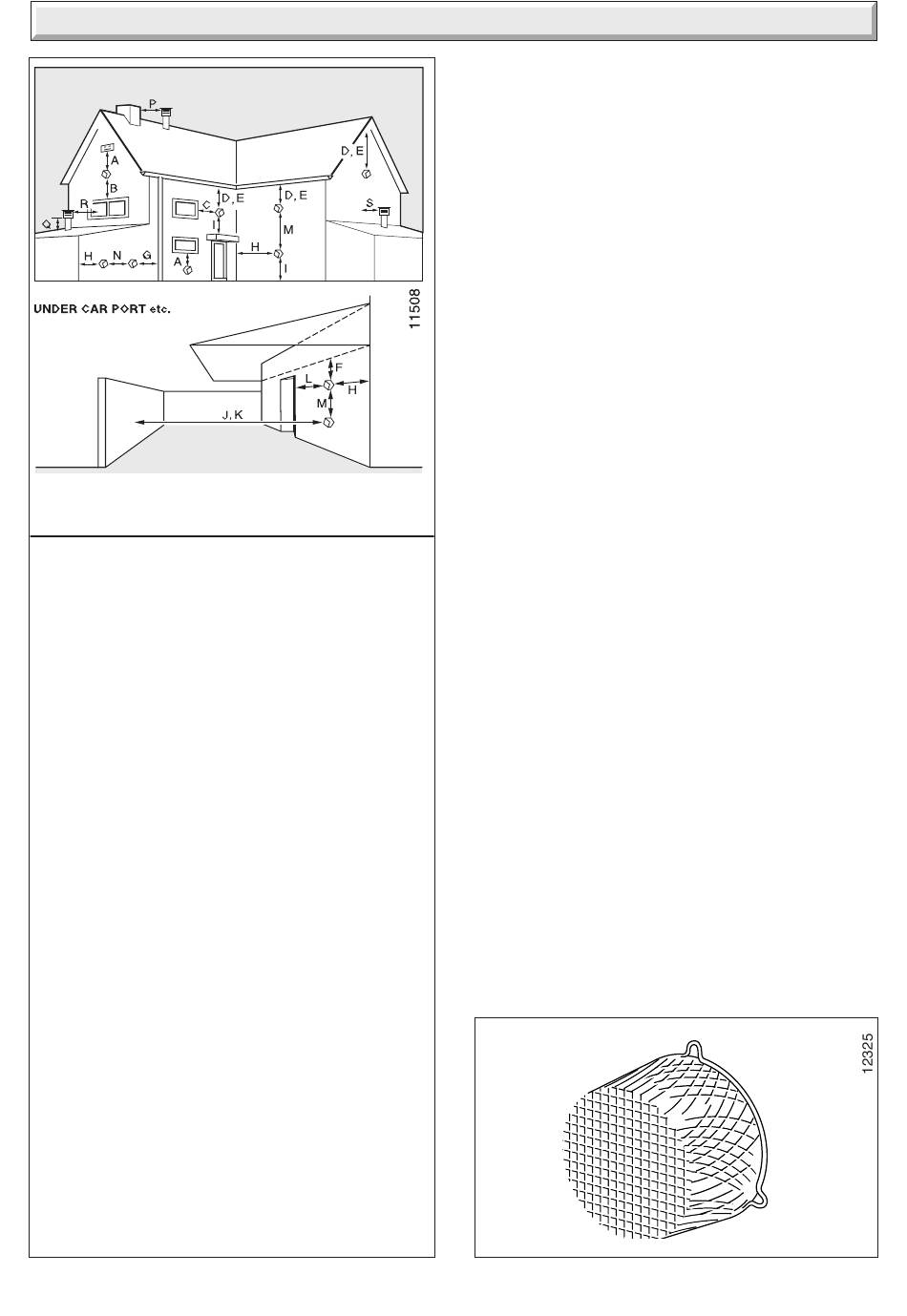

Diagram 2.5
2.3 Terminal Position
The minimum acceptable siting dimensions for the terminal
from obstructions, other terminals and ventilation openings are
shown in diagram 2.5. For Ireland the minimum distances for
flue terminal positioning must be those detailed in I.S.813
"Domestic Gas Installations".
The terminal must be exposed to the external air, allowing free
passage of air across it at all times.
Being a condensing boiler some pluming may occur from the
flue outlet. This should be taken into consideration when
selecting the position for the terminal.
It may be necessary to increase dimensions H & J if there is a
risk that the boiler products could stain any adjoining surface.
Increased siting flexibility can be achieved by using the Glow-
worm Plume Management Kit .
NOTE: If necessary it is permitted to increase the terminal
protrusion through the outside wall to greater than the minimum
dimension of 87mm but no more than 600mm, see diagram 1.1.
Carports or similar extensions of a roof only, or a roof and one
wall, require special consideration with respect to any openings,
doors, vents or windows under the roof. Care is required to
protect the roof if made of plastic sheeting. If the carport
comprises of a roof and two or more walls, seek advice from the
local gas supply company before installing the boiler.
*
*
H
and J
See diagram 2.5 . These dimensions comply with
the building regulations, but they may need to be increased to
avoid wall staining and nuisance from pluming depending on
site conditions.
Plume Management Kit can be used to overcome many site
issues.

2.4 Terminal Guard

A terminal guard is required if persons could come into contact
with the terminal or the terminal could be subject to damage.
If a terminal guard is required, it must be positioned to provide
minimum of 50mm clearance from any part of the terminal and
be central over the terminal.
The guard should be similar to that shown in diagram 2.6.
A suitable guard is manufactured by: -
Tower Flue Components
Morley Rd.
Tonbridge
Kent
TN9 1RA.
Size: 280mm x 280mm x 270mm.
TERMINAL GUARD
3
Diagram 2.6
0020008566A
