Nugens VCM3X User Manual

Hd color video camera
Hide thumbs Also See for VCM3X:
Table of Contents

Advertisement

Quick Links

Download this manual
HD Color Video Camera
VCM3X
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCM3X and is the answer not in the manual?

Questions and answers

Related Manuals for Nugens VCM3X

Summary of Contents for Nugens VCM3X

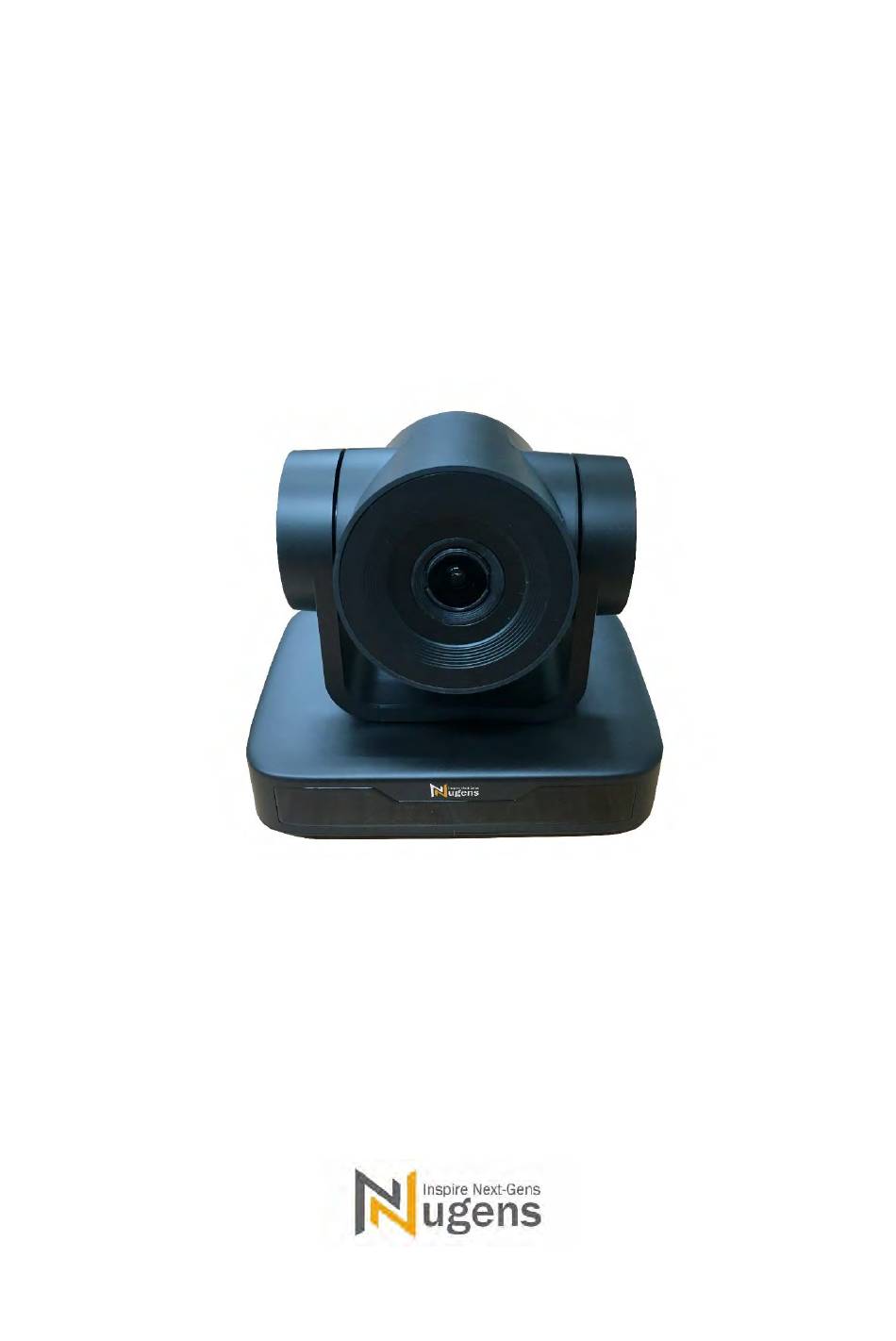

  • Page 1 HD Color Video Camera VCM3X User Manual...
  • Page 2 Attentions Electric Safety Installation and operation must accord with electric safety standard. Caution to transport Avoid stress, vibration and soakage in transportation, storage and installation. Polarity of power supply The power supply of the product is ±12V, the max electrical current is 2A. Polarity of the power supply drawing.

  • Page 3: Table Of Contents

    Content FAST INSTALLATION ..........................- 3 - 1.1....................- 3 - AMERA NTERFACE XPLANATION 1.2....................- 3 - OWER ON INITIAL CONFIGURATION 1.3..........................- 4 - IDEO UTPUT 1.4..........................- 4 - RACKET MOUNT PRODUCT OVERVIEW ........................- 5 - 2.1.

  • Page 4: Fast Installation

    1. Fast Installation 1.1. Camera Interface Explanation Camera Lens ◼ Remote Controller Receiver Light ◼ Camera Base ◼ Tripod Screw Hole ◼ Mounting hole ◼ RS232 Control Interface (output ) ◼ RS232 Control Interface (input ) ◼ RS485 Input (left +,right-) ◼...

  • Page 5: Video Output

    Note: If you set preset 0, when Power on self-test is completed, the camera automatically moves to the preset 0 position. 1.3. Video Output This model support USB2.0 video output. Connect camera and computer by USB2.0 cable, choose video conference software for image. 1.4.

  • Page 6: Product Overview

    2. Product overview 2.1. Product Introduction 2.1.1. Dimension 2.1.2. Accessory When you unpack, check that all the supplied accessories are included: ⚫ Power adapter *1 ⚫ USB Cable*1 ⚫ Remote Controller*1 ⚫ Ceiling mount bracket*1 USB2.0 Video cable: If need USB2.0 cable to provide power but not a power adapter, USB2.0 Video cable with two ports is needed, among which red port is for power supply and black port for - 5 -...

  • Page 7: Main Features

    transmitting USB video signals. If using a power adapter, the general USB2.0 video cable without power supply function is ok. 2.1.3. Main Features This series camera offers perfect functions, superior performance and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution and fantastic color rendition.
  • Page 8 Camera Parameter Sensor 1/2.9-inch-high quality HD CMOS sensor Effective Pixels 2.07 mega pixel、16：9 H264/H265/MJPG:1920*1080P@30/25/20/15/10/5fps ； Video Format 1280*720P@30/25/20/15/10/5fps ； 960*540@30/25/20/15/10/5fps ； 800*600@30/25/20/15/10/5fps ； 720*576@30/25/20/15/10/5fps ； 720*480@30/25/20/15/10/5fps ； 640*480@30/25/20/15/10/5fps ； 640*360@30/25/20/15/10/5fps ； 352*288@30/25/20/15/10/5fps ； 320*240@30/25/20/15/10/5fps； YUY2:1280*720@10/5fps ； 800*600@10/5fps ； 640*480@30/25/20/15/10/5fps ； 640*360@30/25/20/15/10/5fps；...
  • Page 9 >55dB Input/Output Interface Video Interfaces USB2.0 (type A) Video Compression YUY2、MJPG、H.264、H.265 Format Control Signal Interface RS232、RS485 Control Protocol VISCA, Pelco-D, Pelco-P Power Interface HEC3800outlrt (DC12V) USB Features Operating system Windows10, Mac osx, Linux Video Compression MJPG/H264/H265 Format USB common protocol PTZ Parameter Pan Rotation -170°～+170°...
  • Page 10 Input Voltage Input Current 0.42A(max) Consumption 5W(max) Store Temperature -40℃～+70℃ Store Humidity 20%～90% Working Temperature -10℃～+50℃ Working Humidity 20%～80% Dimension 156.8mm×112.6mm×139.5mm Weight Working Environment Indoor Accessory Power Supply、Remote Controller、USB cable、Ceiling mount bracket - 9 -...

  • Page 11: Interface Instruction

    2.3. Interface Instruction 2.3.1. External Interface External interface：RS232 in / out、USB2.0、A-in、DC12V - 10 -...

  • Page 12: Rs-232 Interface

    2.3.2. RS-232 Interface 1)RS-232 Interface 2)RS-232 Mini-DIN 8-pin Port Definition Port Definition Data Terminal Ready Data Set Ready Transmit Data System Ground Receive Data System Ground IR OUT IR Commander Signal No Connection - 11 -...
  • Page 13 3)RS232(DB9) Port Definition Port Definition Data Carrier Detect Receive Data Transmit Data Data Terminal Ready System Ground Data Set Ready Request to Send Clear to Send Ring Indicator 4)VISCA networking as shown below: - 12 -...

  • Page 14: Application Instruction

    3. Application Instruction Video Output 3.1. 3.1.1. Power-On Initial Configuration Connecting the power, camera will have initial configuration, R indicator light will be flashing. When the camera return to the HOME position (middle position for P/T), and lens finish zoom in/out, the auto-testing is finished.

  • Page 15: Remote Controller

    3.2. Remote Controller 3.2.1. Keys Instruction 1. Standby Key After 3S long press, the camera will step into standby mode. Long press 3S again, the camera will self-test again and back to HOME position. (Note: If power-on mode is turned on and Preset 0 is set, and there is no operation within 12s, it will automatically point to the specified preset position.

  • Page 16: Menu Setting

    3.3. MENU SETTING 3.3.1. Main Menu In normal working mode, press 【MENU】 key to display the menu, using scroll arrow to point at or highlight the selected items. MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ SETUP: System setting （Setup） CAMERA : Camera setting （Camera） P/T/Z：Pan tilt setting （P/T/Z）...

  • Page 17: Camera Setting

    3.3.3. Camera Setting CAMERA ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ （Exposure） （Color） EXPOSURE: Enter into Exposure setting （Image） COLOR: Enter into color setting （Focus） Image: Enter into image setting （Noise Reduction） Focus: Enter into focus setting Style Default Noise Reduction: Enter into noise reduction [↑↓]Select [←...
  • Page 18 2)COLOR SETTING COLOR WB Mode: ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Auto, 3000K、3500K、4000K、4500K、5000K、 WB Mode Auto 5500K、 6000K、 6500K、 7000K, Manual, One Push RG Tuning Red Gain: 0~255(only available in Manual mode) BG Tuning Blue Gain: 0~255(only available in Manual mode) Saturation 100% Saturation: 60%,70%,80%,90%,100%,110%,120%,130% AWB Sensitivity High Hue: 0~14...

  • Page 19: P/T/Z

    4) FOCUS FOCUS ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Focus Mode Auto Focus Mode: Auto, manual AF-Zone Center AF-Zone: Up, middle, down AF-Sensitivity AF-Sensitivity: High, middle, low [↑↓]Select [← →]Change Value [Menu]Back 5) NOISE REDUCTION NOISE REDUCTION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ NR-2D Auto NR-3D 2D Noise Reduction: Auto, close, 1~7 Dynamic Hot Pixel 3D Noise Reduction: Close, 1~8 Dynamic Hot Pixel: Close, 1~5...

  • Page 20: Version

    3.3.5. Version VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ MCU Version 3.1.0 2019-09-26 Camera Version 1.0.5 2019-09-27 MCU Version: Display MCU version information AF Version 1.0.0 2019-09-07 Camera Version: Display camera version information AF Version: Display the focus version information. [↑↓]Select [← →]Change Value Lens: Display the lens zoom [Menu]Back [Home]OK 3.3.6.

  • Page 21: Serial Communication Control

    4. Serial Communication Control Under common working condition, the camera could be controlled through RS232/RS485 interface (VISCA), RS232C serial parameter are as follows: Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None. After power on, the camera first go left, then back to the middle position.

  • Page 22: Camera Control Command

    Camera control command Command Function Command packet Note AddressSet Broadcast 88 30 0p FF p：Address setting IF_Clear Broadcast 88 01 00 01 FF I/F Clear CommandCancel 8x 21 FF 8x 01 04 00 02 FF CAM_Power Power ON/OFF 8x 01 04 00 03 FF Stop 8x 01 04 07 00 FF Tele (Standard)
  • Page 23 Command Function Command packet Note Manual Focus 8x 01 04 38 03 FF 8x 01 04 47 0p 0q 0r 0s pqrs: Zoom Position CAM _Zoom Focus Direct 0t 0u 0v 0w FF tuvw: Focus Position Auto 8x 01 04 35 00 FF 3000K 8x 01 04 35 01 FF 4000k...
  • Page 24 Command Function Command packet Note 8x 01 04 04 02 FF Down 8x 01 04 04 03 FF Direct 8x 01 04 44 00 00 0p 0q FF pq: B Gain Full Auto 8x 01 04 39 00 FF Automatic Exposure mode Manual 8x 01 04 39 03 FF Manual Control mode...
  • Page 25 Command Function Command packet Note Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright Positon 8x 01 04 3E 02 FF Exposure Compensation ON/OFF 8x 01 04 3E 03 FF Reset 8x 01 04 0E 00 FF CAM_ExpComp 8x 01 04 0E 02 FF Exposure Compensation Amount Setting...
  • Page 26 Command Function Command packet Note Reset 8x 01 04 02 00 FF 8x 01 04 02 02 FF Aperture Control CAM_Aperture Down 8x 01 04 02 03 FF Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain Reset 8x 01 04 3F 00 pq FF pq: Memory Number (=0 to 254)
  • Page 27 Command Function Command packet Note 8x 01 7D 01 13 00 00 FF via the VISCA communication ON/OFF CAM_SettingReset Reset 8x 01 04 A0 10 FF Reset Factory Setting CAM_Brightness Direct 8x 01 04 A1 00 00 0p 0q FF pq: Brightness Position CAM_Contrast Direct...

  • Page 28: Inquiry Command

    Command Function Command packet Note Upleft 8x 01 06 01 VV WW 01 01 FF YYYY: Pan Position ZZZZ: Tilt Position Upright 8x 01 06 01 VV WW 02 01 FF DownLeft 8x 01 06 01 VV WW 01 02 FF DownRight 8x 01 06 01 VV WW 02 02 FF Stop...
  • Page 29 Command Function Command packet Note CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position y0 50 02 FF Auto Focus CAM_FocusAFModeInq 8x 09 04 38 FF y0 50 03 FF Manual Focus One Push mode y0 50 04 FF CAM_FocusPosInq 8x 09 04 48 FF...
  • Page 30 Command Function Command packet Note y0 50 00 FF Full Auto y0 50 03 FF Manual CAM_AEModeInq 8x 09 04 39 FF y0 50 0A FF Shutter priority y0 50 0B FF Iris priority y0 50 0D FF Bright CAM_ShutterPosInq 8x 09 04 4A FF y0 50 00 00 0p 0q FF pq: Shutter Position...
  • Page 31 Command Function Command packet Note y0 50 00 FF CAM_PictureEffectModeInq 8x 09 04 63 FF y0 50 04 FF B&W CAM_MemoryInq 8x 09 04 3F FF y0 50 0p FF p: Memory number last operated. y0 50 02 FF SYS_MenuModeInq 8x 09 06 06 FF y0 50 03 FF y0 50 02 FF...
  • Page 32 Command Function Command packet Note CAM_BrightnessInq 8x 09 04 A1 FF y0 50 00 00 0p 0q FF pq: Brightness Position CAM_ContrastInq 8x 09 04 A2 FF y0 50 00 00 0p 0q FF pq: Contrast Position y0 50 00 FF y0 50 01 FF Flip-H CAM_FlipInq...
  • Page 33 Command Function Command packet Note 4:720P60 C：720P59.94 5:720P50 D：1080P29.97 6:1080P30 E：720P29.97 7:1080P25 ww: Pan Max Speed zz: Tilt Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF Max Speed y0 50 0w 0w 0w 0w wwww: Pan Position zzzz: Pan-tiltPosInq 8x 09 06 12 FF...

  • Page 34: Pelco -Dprotocol Command List

    Pelco-D protocol command list Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02...

  • Page 35: Pelco -Pprotocol Command List

    Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Query Tilt Position 0xFF Address 0x00 0x5B Value High Byte Value Low Byte Response Query Zoom Position 0xFF Address 0x00 0x55 0x00 0x00 Query Zoom Position 0xFF Address 0x00 0x5D Value High Byte Value Low Byte Response Pelco-P protocol command list...
  • Page 36 Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8 Clear Preset 0xA0 Address 0x00 0x05 0x00 Preset ID 0xAF Call Preset 0xA0 Address 0x00 0x07 0x00 Preset ID 0xAF Query Pan Position 0xA0 Address 0x00 0x51 0x00 0x00 0xAF Query Pan Position 0xA0 Address 0x00...

  • Page 37: Camera Maintenance And Troubleshooting

    5. Camera Maintenance and Troubleshooting 5.1. Camera Maintenance （1） If camera is not used for long time, please turn off power adapter switch and AC plug. （2） Use soft cloth or tissue to clean the camera cover. （3） Use soft cloth to clean the lens; Use neuter cleanser if bad smeared. No use strong or corrosive cleanser or corrosive cleanser avoiding scuffing.
  • Page 38 need to be back to 1 too) Check whether the battery is installed on the remote controller or low. ◼ Check the camera working mode is the normal operating mode (see Table 2.2 and Table 2.3) ◼ Check the menu whether is closed, camera control through remote controller is only available after exiting the ◼...
