Nugens VCM1000 User Manual

10x optical ptz conference camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Nugens VCM1000
10X Optical PTZ Conference Camera
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCM1000 and is the answer not in the manual?

Questions and answers

Related Manuals for Nugens VCM1000

Summary of Contents for Nugens VCM1000

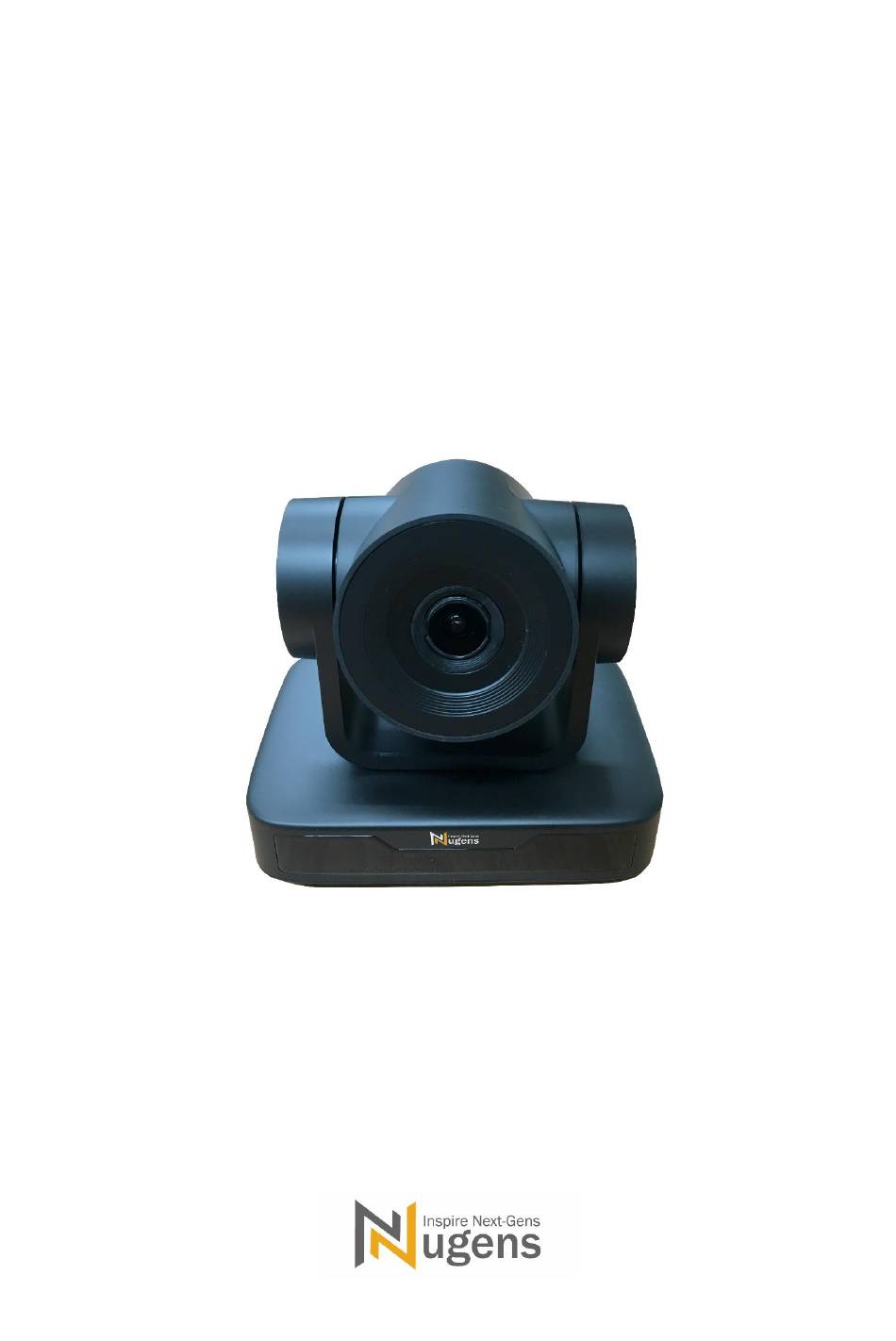

  • Page 1 Nugens VCM1000 10X Optical PTZ Conference Camera User Manual...
  • Page 2 Attentions Electric Safety Installation and operation must accord with electric safety standard. Caution to transport Avoid stress, vibration and soakage in transportation, storage, and installation. Polarity of power supply The power supply of the product is ±12V, the max electrical current is 2A. Polarity of the power supply drawing.

  • Page 3: Table Of Contents

    Content FAST INSTALLATION ..........................- 3 - 1.1....................- 3 - AMERA NTERFACE XPLANATION 1.2....................- 3 - OWER ON INITIAL CONFIGURATION 1.3..........................- 3 - IDEO UTPUT 1.4..........................- 4 - RACKET MOUNT PRODUCT OVERVIEW ........................- 5 - 2.1.

  • Page 4: Fast Installation

    1. Fast Installation 1.1. Camera Interface Explanation ◼ Camera Lens ◼ Remote Controller Receiver Light ◼ Camera Base ◼ Tripod Screw Hole ◼ Mounting hole ◼ RS232 Control Interface (output) ◼ RS232 Control Interface (input) ◼ RS485 Input (left +, right-) ◼...

  • Page 5: Bracket Mount

    1.4. Bracket mount Note: Bracket can be upside down mounted on template and concrete wall, but can not be installed on plasterboard. - 4 -...

  • Page 6: Product Overview

    2. Product overview 2.1. Product Introduction 2.1.1. Dimension 2.1.2. Accessory When you unpack, check that all the supplied accessories are included: ⚫ Power adapter *1 ⚫ USB Cable*1 ⚫ Remote Controller*1 ⚫ Rubber pad*1 ⚫ Ceiling mount bracket*1 USB2.0 Video cable: If need USB2.0 cable to provide power but not a power adapter, USB2.0 Video cable with two ports is needed, among which red port is for power supply and black port for transmitting USB video signals.

  • Page 7: Technical Specification

    This series camera offers perfect functions, superior performance, and rich interfaces. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. ⚫ Superb High-definition Image: It employs 1/2.9-inch-high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 30 fps.
  • Page 8 Input/Output Interface Video Interfaces USB2.0 (type A) Video Compression YUY2、MJPG、H.264、H.265 Format Control Signal Interface RS232、RS485 Control Protocol VISCA, Pelco-D, Pelco-P Power Interface HEC3800outlrt (DC12V) USB Features Operating system Windows10, Mac osx, Linux Video Compression MJPG/H264/H265 Format USB common protocol PTZ Parameter Pan Rotation -170°～+170°...

  • Page 9: Interface Instruction

    2.3. Interface Instruction 2.3.1. External Interface External interface：RS232 in / out、USB2.0、A-in、DC12V - 8 -...

  • Page 10: Rs-232 Interface

    2.3.2. RS-232 Interface 1)RS-232 Interface 2)RS-232 Mini-DIN 8-pin Port Definition Port Definition Data Terminal Ready Data Set Ready Transmit Data System Ground Receive Data System Ground IR OUT IR Commander Signal No Connection B9) Port Definition Port Definition Data Carrier Detect Receive Data Transmit Data Data Terminal Ready...
  • Page 11 Request to Send Clear to Send Ring Indicator 4)VISCA networking as shown below: - 10 -...

  • Page 12: Application Instruction

    3. Application Instruction Video Output 3.1. 3.1.1. Power-On Initial Configuration Connecting the power, camera will have initial configuration, R indicator light will be flashing. When the camera return to the HOME position (middle position for P/T), and lens finish zoom in/out, the auto-testing is finished.

  • Page 13: Remote Controller

    3.2. Remote Controller 3.2.1. Keys Instruction 1. Standby Key After 3S long press, the camera will step into standby mode. Long press 3S again, the camera will self-test again and back to HOME position. (Note: If power-on mode is turned on and Preset 0 is set, and there is no operation within 12s, it will automatically point to the specified preset position.

  • Page 14: Menu Setting

    3.3. MENU SETTING 3.3.1. Main Menu In normal working mode, press 【MENU】key to display the menu, using scroll arrow to point at or highlight the selected items. MENU ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ SETUP: System setting （Setup） CAMERA : Camera setting （Camera） P/T/Z：Pan tilt setting （P/T/Z）...
  • Page 15 CAMERA ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ （Exposure） EXPOSURE: Enter into Exposure setting （Color） COLOR: Enter into color setting （Image） Image: Enter into image setting （Focus） Focus: Enter into focus setting （Noise Reduction） Noise Reduction: Enter into noise reduction Style Default [← →]Change Value [↑↓]Select [Menu]Back [Home]OK 1) EXPOSURE SETTING...
  • Page 16 COLOR WB Mode: ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Auto, 3000K、3500K、4000K、4500K、5000K、 WB Mode Auto 5500K、 6000K、 6500K、 7000K, Manual, One Push RG Tuning Red Gain: 0~255(only available in Manual mode) BG Tuning Blue Gain: 0~255(only available in Manual mode) Saturation 100% Saturation: 60%,70%,80%,90%,100%,110%,120%,130% AWB Sensitivity High Hue: 0~14 AWB Sensitivity: high/middle/low...

  • Page 17: P/T/Z

    4) FOCUS FOCUS ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ Focus Mode Auto Focus Mode: Auto, manual AF-Zone Center AF-Zone: Up, middle, down AF-Sensitivity AF-Sensitivity: High, middle, low [← →]Change [↑↓]Select Value [Menu]Back 5) NOISE REDUCTION NOISE REDUCTION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ NR-2D Auto NR-3D 2D Noise Reduction: Auto, close, 1~7 Dynamic Hot Pixel 3D Noise Reduction: Close, 1~8 Dynamic Hot Pixel: Close, 1~5...

  • Page 18: Restore Default

    VERSION ＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝＝ MCU Version 3.1.0 2019-09-26 MCU Version: Display MCU version information Camera Version 1.0.5 2019-09-27 Camera Version: Display camera version AF Version 1.0.0 2019-09-07 information AF Version: Display the focus version information. [← →]Change Value [↑↓]Select Lens: Display the lens zoom [Menu]Back [Home]OK 3.3.6.

  • Page 19: Serial Communication Control

    4. Serial Communication Control Under common working condition, the camera could be controlled through RS232/RS485 interface (VISCA), RS232C serial parameter are as follows: Baud rate: 2400/4800/9600/115200 bits / sec; Start bit: 1; data bits: 8; Stop bit: 1; Parity: None. After power on, the camera first go left, then back to the middle position.
  • Page 20 Command Function Command packet Note Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position Auto Focus 8x 01 04 38 02 FF One Push Mode 8x 01 04 38 04 FF Manual Focus 8x 01 04 38 03 FF 8x 01 04 47 0p 0q 0r 0s pqrs: Zoom Position CAM _Zoom Focus...
  • Page 21 Command Function Command packet Note Down 8x 01 04 0D 03 FF Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright Positon 8x 01 04 3E 02 FF Exposure Compensation ON/OFF 8x 01 04 3E 03 FF Reset 8x 01 04 0E 00 FF CAM_ExpComp...

  • Page 22: Inquiry Command

    Command Function Command packet Note CAM_SettingReset Reset 8x 01 04 A0 10 FF Reset Factory Setting CAM_Brightness Direct 8x 01 04 A1 00 00 0p 0q FF pq: Brightness Position CAM_Contrast Direct 8x 01 04 A2 00 00 0p 0q FF pq: Contrast Position 8x 01 04 A4 00 FF Flip-H...
  • Page 23 Command Function Command packet Note y0 50 02 FF Auto Focus CAM_FocusAFModeInq 8x 09 04 38 FF y0 50 03 FF Manual Focus One Push mode y0 50 04 FF CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position y0 50 00 FF Auto...
  • Page 24 Command Function Command packet Note y0 50 02 FF SYS_MenuModeInq 8x 09 06 06 FF y0 50 03 FF y0 50 02 FF CAM_LR_ReverseInq 8x 09 04 61 FF y0 50 03 FF y0 50 02 FF CAM_PictureFlipInq 8x 09 04 66 FF y0 50 03 FF p: Color Gain setting 0h (60%) to CAM_ColorSaturationInq...
  • Page 25 Command Function Command packet Note 6:1080P30 E： 720P29.97 7:1080P25 ww: Pan Max Speed zz: Tilt Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF Max Speed y0 50 0w 0w 0w 0w wwww: Pan Position zzzz: Tilt Pan-tiltPosInq 8x 09 06 12 FF 0z 0z 0z 0z FF Position...

  • Page 26: Pelco -Dprotocol Command List

    Pelco-D protocol command list Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 0xFF Address 0x00 0x08 Pan Speed Tilt Speed Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02...
  • Page 27 Byte Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Set Preset 0xA0 Address 0x00 0x03 0x00 Preset ID 0xAF Clear Preset 0xA0 Address 0x00 0x05 0x00 Preset ID 0xAF Call Preset 0xA0 Address 0x00 0x07 0x00 Preset ID 0xAF Query Pan Position 0xA0 Address 0x00...

  • Page 28: Camera Maintenance And Troubleshooting

    5. Camera Maintenance and Troubleshooting 5.1. Camera Maintenance （1） If camera is not used for long time, please turn off power adapter switch and AC plug. （2） Use soft cloth or tissue to clean the camera cover. （3） Use soft cloth to clean the lens; Use neuter cleanser if bad smeared. No use strong or corrosive cleanser or corrosive cleanser avoiding scuffing.
