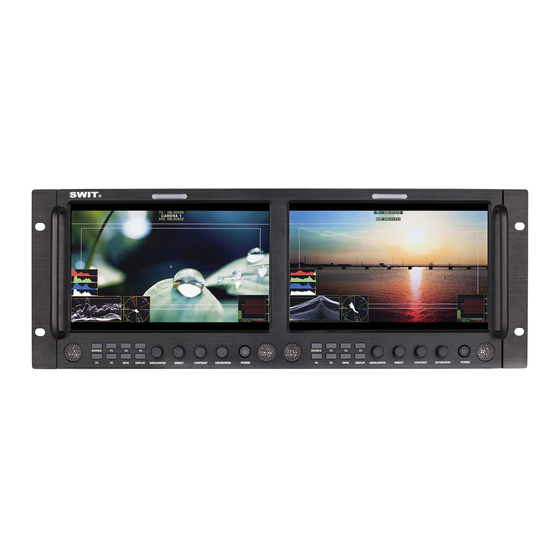

- Page 1 SWIT Electronics Co., Ltd. Model: M-1093F 9” Rack Mount Waveform LCD Monitor User Manual Ver：B Please read this User Manual throughout before using.
-
Page 2: Preface
1. All internal technologies of this product are protected, including device, software and trademark. Reproduction in whole or in part without written permission is prohibited. 2. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners. -
Page 3: Maintenance
Maintenance Warning 1. In order to reduce the risk of fire and electrical shock, do not lay this product in rain or damp places. 2. Please keep away from the strong magnetic field; it may cause the noise of the video and audio signals. -
Page 4: Table Of Contents
Contents Preface ..............................2 Maintenance ............................3 Contents ..............................4 Packing List ............................. 4 Introduction .............................. 4 Installation Dimension..........................5 Operation Instructions ..........................6 Front Panel ............................6 OSD ..............................7 Back Panel ............................9 Main Menu ............................. 10 Specification ............................18 Trouble-shooting ............................ -
Page 5: Installation Dimension
Installation Dimension The main body (in mm) -
Page 6: Operation Instructions
Operation Instructions ·Front Panel ⑴ Speaker: For SDI/HDMI embedded audio and analog audio monitoring. (Will not work if earphone is plugged in) ⑵ Button SOURCE: Press “SOURCE” to select SDI1, SDI2, HDMI, and CVBS signal input F1～F5: User definable function keys. Please see details in “4. Function key” under “Main Menu”. WFM: Waveform shortcut key, press “WFM”... -
Page 7: Osd
·OSD ⑴ Time code（SDI） Under SDI input, it can display Time code. If no Time code information is detected, it will be displayed as “TC: UNLOCKED”. User can set function keys F1～F5 or GPI pins as “Time code” to turn on or off this function. ⑵... - Page 8 Introduction of audio and video functions 16-ch embedded audio meters Under 3G/HD/SD SDI, it displays 16 channels embedded audio meters. Under HDMI, it displays 8 channels embedded audio meters. Under CVBS, it displays 2 channels embedded audio meters. The audio meter is green, and will turn yellow when audio exceeds -20dB, and turn red when audio exceeds -9dB.
-
Page 9: Back Panel
function Keys F1～F5 or GPI pins as “False color” to turn on or off this function. AFD (SDI) It is the abbreviation of active format description. AFD is to display the SDI embedded AFD information graphically on the screen. ... -
Page 10: Main Menu
⒀ Power Adaptor Main Menu M-1093F has OSD to adjust the parameters and settings, for example: Picture, color temp., function keys, etc. 1. Press “MENU/ENTER” button, the main menu will popup from the left top of the screen. The selected main menu highlights in yellow. - Page 11 Submenu introduction（the default values are marked with underline ） 1. Exit & Status Displays the current status, the details are as down below: *1 Display the current video signal and format *2 Display the current function keys setup 2. Picture To adjust picture parameters 3.
- Page 12 *1 Function keys F1-F5 can be setted as the down below functions: Audio, Histogram, False Color, AFD, H/V Delay, R/G/B/Mono, Marker , Color Bar, UMD, Audio Alarm, Focus Assist, Aspect Ratio, Scan Mode, Zoom Mode, Mute, Freeze Frame, Image Flip, CVBS, HDMI, SDI1, SDI2, Color Temp, Timecode, Zebra, Vector.
- Page 13 Max 8 letters are supported. Select “Exit” to quit and save settings, the source ID will be displayed on top or bottom of the screen. UMD setup: ⑴ Connect the external control equipment with M-1093F; ⑵ Set “Display Type” to “UMD” under UMD submenu; ⑶ Make sure the “address”, “Baud Rate”, “Parity” the same;...
- Page 14 Aspect ratio: 4:3 Aspect ratio: 4:3 Safety Area: 85% Safety Area: 85% Center Marker: On Center Marker: Off Fit Marker: Off Fit Marker: On 8. Audio *1 When “Bar Frame” is set to “Off”, only the audio meter will be displayed. When “Bar Frame”...
- Page 15 CH 1～2 CH 1～8 CH 1～16 9. Vector 10. Waveform *1: Only the “WFM Single Line” is set to “ON”, the “WFM Line Count” can be adjusted. “WFM Single Line” is to display the selected line waveform of “WFM Line Count” WFM Single Line：Off WFM Single Line：On...
- Page 16 11. Display 12. System *1 Update Mode1 When set to “Yes”, after turn on the monitor, the signal will be inspected and follow the sequence of •SDI1’ SDI2’ HDMI’ CVBS•. For example: if channel is selected to SDI2, SDI-IN2 has no input, and CVBS has input. When turn on the monitor, after automatic inspection, SDI2 has no recognized signal, and CVBS has recognized signal, then the input signal will be CVBS.
- Page 17 ⑸ After upgraded, the monitor will automatically reboot. 13. OSD 14. Key Inhibit If the “Key Inhibit” is “On”, there is no response when all the buttons expert ” MENU/ENTER” are pressed, the sreen will be diaplayed as ” Key Inhibit”. User can set “Key Inhibit”...
-
Page 18: Specification
Specification LCD Performance 9 inches×2 Size Display area 191.5×119.7 mm×2 Resolution 1920×RGB×1200 Color 8 bit 16:9∕4:3 Aspect ratio 450 cd∕㎡ Brightness Contrast 1000:1 Viewing Angle Horizontal: 170°Vertical: 170° Input/output BNC×4 3G/HD/SD-SDI input BNC×2 CVBS input Inpu HDMI×2 HDMI input GPI×2 UMD, GPI×1 USB×2 3.5mm×2... -
Page 19: Trouble-Shooting
Trouble-shooting Symptom Possible Causes Solution Please check if the power is connected, and then The power is not turned on press ”POWER” button to turn on the monitor Unstable power voltage Reconnect to power supply BNC or HDMI cable loose No display Check and correctly connect the contact or not correctly...
