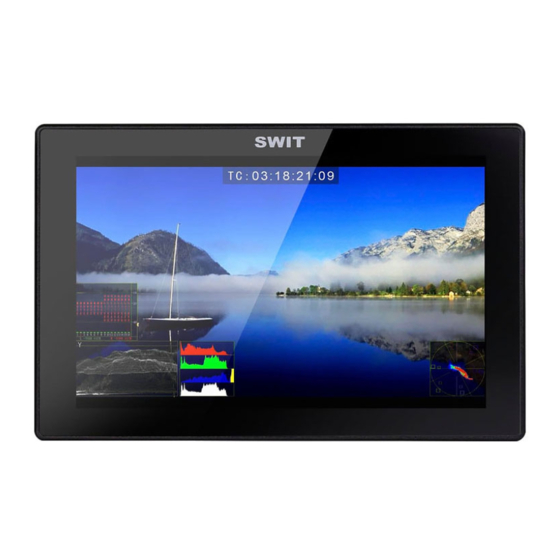

- Page 1 SWIT Electronics Co., Ltd. Model：S-1073F 7’’ Full HD Waveform LCD Monitor User Manual Ver：D Please read this User Manual throughout before using.
-
Page 2: Preface
1. All internal technologies of this product are protected, including device, software and trademark. Reproduction in whole or in part without written permission is prohibited. 2. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners. -
Page 3: Table Of Contents
Maintenance Warning 1. In order to reduce the risk of fire and electrical shock, do not lay this product in rain or damp places. 2. Please keep away from the strong magnetic field; it may cause the noise of the video and audio signals. -
Page 4: Packing List
6. S-7006(U/F/D)/ S-7000(A/S) 6. HDMI cable Introduction The LCD panel and tempered glass of S-1073F adopts optical bonding process, small and thin, preventing the ash into the screen, meanwhile eliminated the air between the screens so as to display more transparent. -
Page 5: Accessories Introduction
Accessories introduction 1. Sun hood ⑴ Take out the sun hood from the flannel bag, see pic1; ⑵ Push out the sun hood as pic2, unfold as pic3; ⑶ Fold the two bottom parts inward as pic3, with the internal magnets attached and fixed as pic4; ⑷... - Page 6 2. Battery plate Take off the rubber cover in the rear panel of S-1073F; connect the power pins on the tail of the battery plate to the power socket of S-1073F, fix with four screws. Mounting the battery to the plate can power the monitor.
-
Page 7: Operation Instructions
Operation Instructions ⑴ R ubber but t ons SOURCE: Signal selection button User definable function keys（F1～F4） User can set F1～F4 keys to corresponding function for quick operation according to their needs. For example：User can set F1 to “Focus Assistant”, and press F1 to directly switch the focus assistant parameter, the sequence is “Red→Blue→Off”. -
Page 8: Screen Display
SDI-OUT: SDI output (BNC connector) When the input is SDI, loop output the signal connected to SDI-IN When the input is HDMI, output HDMI converted to SDI signal Note: when the input is HDMI, SDI-OUT does not support SD-SDI signal HDMI-IN: HDMI signal input, HDMI-A interface. -
Page 9: Zoom-In And Mapping
⑻. Waveform User can set function Keys F1～F4 or GPI pins as “Waveform” to turn on or off this function. The relevant parameters like WFM position, WFM color and WFM blending, etc can be changed under “Waveform” submenu ·Zoom-in and mapping Set “Zoom-in”... - Page 10 recorded media. If no Timecode information is detected, it will be displayed as “UNLOCKED”. Waveform（Y, Cb, Cr, R,G ,B） Under SDI and HDMI input, totally 6 kinds of waveforms which are Y, Cb, Cr, R, G and B can be selected so as to check the brightness and chroma distribution.
-
Page 11: Main Menu
Main menu S-1073F has OSD to adjust the parameters and settings, for example: Picture, color temp., function keys, etc. 1. Press “MENU” button, the main menu will popup from the left top of the screen. The selected main menu highlights in yellow. - Page 12 Submenu introduction（the default values are marked with underline ） 1. Exit & Status Displays the current status, the details are as down below: *1 Display the current video signal and format *2 Display the current function keys setup 2. Picture To adjust picture parameters Color Temp To select different color temperature or setup user-defined color parameters...
- Page 13 Audio Bar, Histogram, False Color, AFD, H/V Delay, R/G/B/Mono, Marker, Color Bar, UMD, Audio Alarm, Max backlight, Focus Assist, Aspect Ratio, Scan Mode, Zoom Mode, Mute, Freeze Frame, Flip Mode, Waveform, Color Temp, Timecode, Zebra, Vector. For example: Set F3 to “R/G/B/Mono” under “Function key” submenu. User can press F3 on the front panel to adjust the parameters of “R/G/B/Mono”, and the “R/G/B/Mono”...
- Page 14 Set “UMD”: ⑴ Select “Source ID” (2) The underline flashes as a reminder on the bottom of the first letter. Revolve "MENU" to select the letters; the letter will follow the sequence of the down below if clockwise revolved: (3) Press “MENU” to save the current settings letter and then start to set the next letter. ⑷...
- Page 15 8. Audio *1 When “Bar Frame” is set to “Off”, only the audio meter will be displayed. When “Bar Frame” is set to “On”, frame and real-time audio value will be displayed. *2 Select Channel Under HDMI signal, channel1-2 can be selected. Under SDI signal, channel 1-2, 1-8 and 1-16 can be selected.
- Page 16 10. Waveform *1: Only the “WFM Single Line” is set to “ON”, the “WFM Line Count” can be adjusted. “WFM Single Line” is to display the selected line waveform of “WFM Line Count” WFM Single Line：Off WFM Single Line：On 11. Display...
- Page 17 12. System *1 Source Scan When set to “Yes”, after turn on the monitor, the signal will be inspected and follow the sequence of “SDI→HDMI→CVBS” For example: if channel is selected to SDI, SDI-IN has no input, and HDMI has input. When turn on the monitor, after automatic inspection, SDI has no recognized signal, and HDMI has recognized signal, then the input signal will be HDMI.
- Page 18 13. Color Measurement *1 Camera Log conversion When shooting with Log mode of the camera, you can select the corresponding Log conversion LUT, to convert the log mode video to standard ITU Rec.709 mode to monitor. A”User-Log” is provided for user defined LUT converting to Rec.709.
-
Page 19: Specification
Specification LCD Performance Size 7 inch Display area 151.2×94.5 mm Resolution 1920×RGB×1200 Color 8 bit Aspect ratio 16:9∕4:3 Brightness 400 cd∕㎡ Contrast 1000:1 Viewing angle Horizontal / Vertical: 160°∕160° Input/Output HDMI×1 HDMI input BNC×2 3G/HD/SD-SDI input Input BNC×1 CVBS input USB×1 3G/HD/SD-SDI loop through output/ HDMI converted to SDI BNC×1... -
Page 20: Trouble-Shooting
Trouble-shooting symptom Possible causes Solution Please check if the power is connected, and then The power is not turned on press ”POWER” button to turn on the monitor Unstable power voltage Reconnect to power supply BNC or HDMI cable loose No display Check and correctly connect the contact or not correctly...
