Summary of Contents for SWIT Electronics ProHD DT-X21H

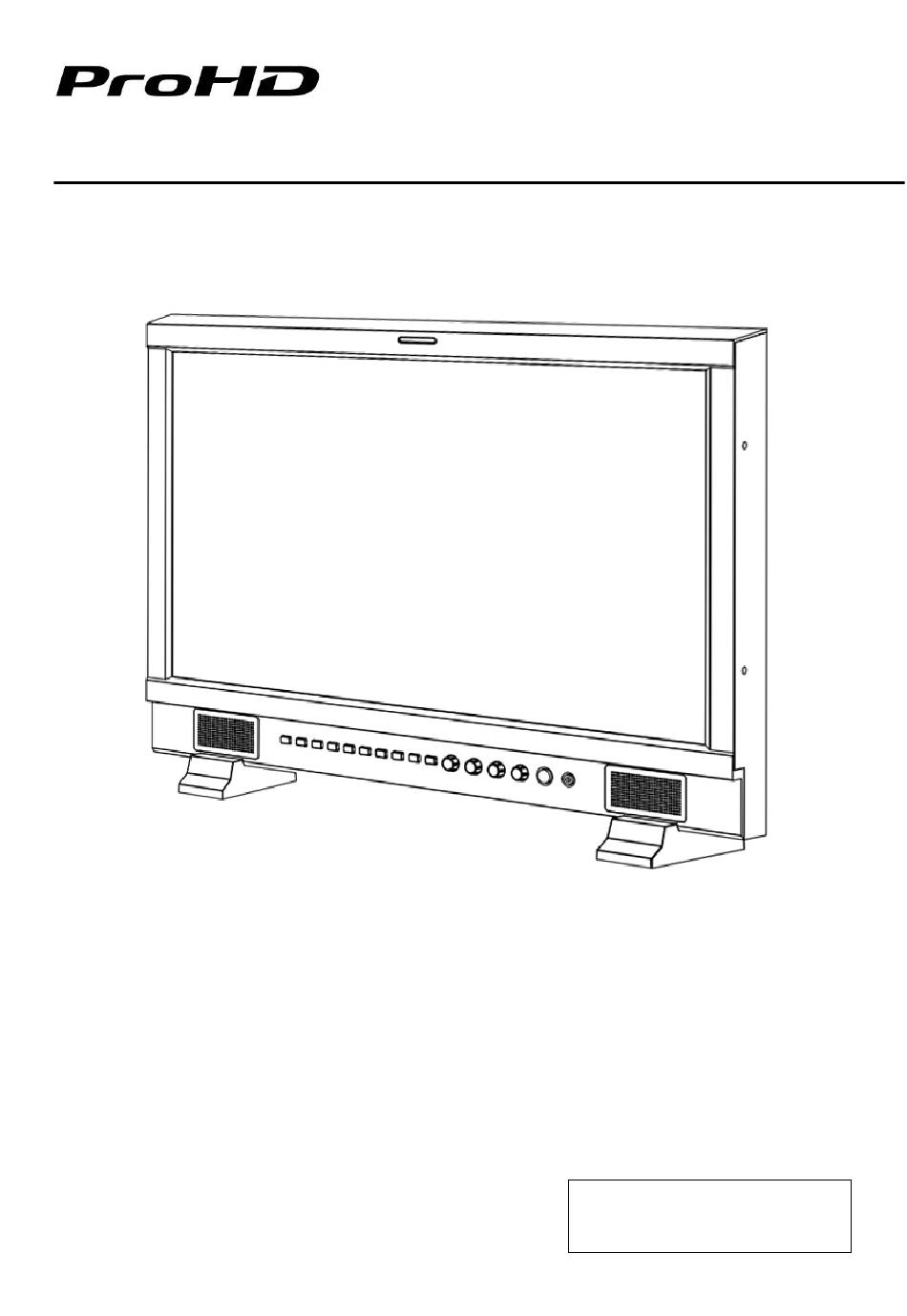

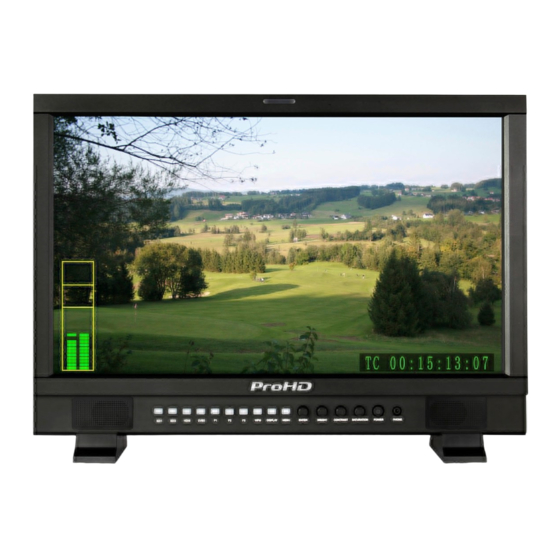

- Page 1 DT-X21H Model: 21.5" Broadcast Studio LCD Monitor User Manual Ver：V2.0V02 Please read this User Manual throughout before using.
- Page 2 ． Due to constant effort of product development, SWIT Electronics reserves the right to make changes and improvements to the product described in this manual without prior notice. The warranty period of this product is 2 years, and does not cover the following: ．...
-
Page 3: Maintenance
Maintenance Monitor 1. Please keep the signal terminals and the cooling vent away from knife-edge, metal or liquid in order to avoid short-circuit and damage. 2. Please don't try to disassemble any parts of the monitor by yourself, which would probably damage the monitor and do harm to human body, and it will cause the invalidation of product warranty. - Page 4 1. Features Full-HD 21.5” LCD Panel Peaking focus assist (red/blue switch) ◆ ◆ ◆ ◆ ◆ ◆ ◆ ◆ 1920×1080 resolution, 1000:1 contrast The Peaking focus assist function are available ◆ ◆ ◆ ◆ Multiple inputs under SDI and HDMI, which is to mark the 3G/HD/SD-SDI, HDMI and Composite input sharpest edges of the image with red or blue color, Loop through outputs...
- Page 5 2. Panel Instruction Front view ⑴ Speaker: For SDI/HDMI embedded audio and analog audio monitoring. (Will not work if earphone is plugged in) ⑵ SDI1: Press “SDI1” to switch to SDI input 1 ⑶ SDI2: Press “SDI2” to switch to SDI input 2 ⑷...
- Page 6 Rear view ⑴ Reserved battery plate power socket: Take off the rub cover to find the power socket, V-mount or Gold mount battery plates can be connected to the power socket. ⑵ DC IN 11V-17V BACK UP: Connect with 4-pin XLR power adaptor (Pin 1: Negative, Pin 4: Positive) ⑶...
- Page 7 3. Menu Operation ⑴ Press “MENU” and it will display menu system ⑵ Revolve “ENTER” to select an item. The selected item will be highlighted display. ⑶ Press “ENTER” to enter the selected item. ⑷ Under menu system, press “MENU” to back to previous menu. *The menu will automatically save and quit if it remains idle.
- Page 8 3.5 DISPLAY submenu The DISPLAY submenu is to select the items to be displayed on screen when ‘DISPLAY” button is pressed. Revolve "ENTER" to turn on/off the items: ⑴ INFO: Including Input format, aspect ratio, underscan/overscan, zoom status ⑵ TITLE: User edited title ⑶...
- Page 9 4. TALLY Light Operation The front TALLY light can display 3 colors: RED, GREEN and YELLOW. The TALLY light controlling port is the DB-9 socket at the rear panel, and terminal description is as follows: Terminal Description The RED light is on when connecting the terminal “R” with “GND”, and goes out when disconnecting. The GREEN light is on when connecting the terminal “G”...
-
Page 10: Specifications
5. Specifications LCD Performance Size 21.5 inches Display area 477 × 2 68mm Resolution 1920 × R GB × 1 080 Aspect ratio 16:9 (4:3 adjustable) Brightness 250cd / m Contrast 1000:1 Color 16.77 million colors Viewing angle Horizontal: 178 ° V ertical: 178 ° Video Format CVBS NTSC ∕... -
Page 11: Optional Accessories
7. Optional Accessories Model Description S-7004S V-mount battery plate S-7004A Gold mount battery plate A-PG22 Magnetic LCD protective organic glass A-VS22 Rotatable desktop stand with VESA installation A-RK22 19-inch rack install bracket 7.1 Battery plate Installation 1. Take off the rub cover on the rear panel, see Fig. (1) 2. - Page 12 7.2 Protective organic glass The A-PG22 organic glass has left and right magnetic stripes and can be fixed on front of the LCD panel, to protect the LCD during transport or stock. A-PG22 A-PG22 7.3 Rotatable desktop stand 10x10cm VESA A-VS22 Rear View...
- Page 13 7.4 19-inch rack install bracket Installation 1. Install the left and right brackets onto the 19-inch rack; see Fig (1) and (2) 2. Screw the supplied 4 knobs into the left and right sides of the monitor; see Fig (3) 3.
- Page 14 8. Installation Dimension 8.1 The main body (in mm) 8.2 With desktop stand feet (in mm)
- Page 15 8.3 With rotatable VESA desktop stand (in mm) 8.4 With 19-inch rack install bracket (in mm)
- Page 16 This model is manufactured, warranted and supported by SWIT Electronics Co., Ltd. / SWIT Electronics USA, LLC, and distributed in North America by JVC Professional Video Products. To obtain service or for further information, please contact: SWIT Electronics USA, LLC.
