- Page 1 SWIT ELECTRONICS CO., LTD. Model: BM-U243 23.8" 4K Broadcast Studio LCD Monitor User Manual Please read this user manual throughout before using Ver： A...
-
Page 2: Preface
All internal technologies of this product are protected, including device, software and trademark. Reproduction in whole or in part without written permission is prohibited. All brands and trademarks of SWIT Electronics Co., Ltd. are protected and other relative trademarks in this user manual are the property of their respective owners. -
Page 3: Maintanance
Maintenance Warning 1. In order to reduce the risk of fire and electrical shock, do not lay this product in rain or damp places. 2. Please keep away from the strong magnetic field; it may cause the noise of the video and audio signals. -
Page 4: Table Of Contents

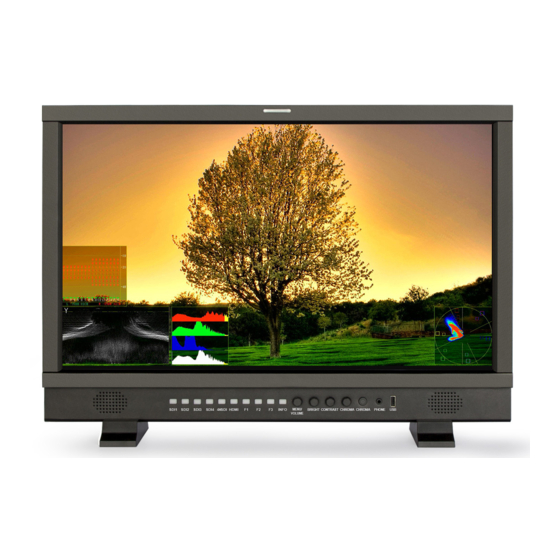

Introduction BM-U243 adopts TFT LCD panel， with resolution of 3840x2160 and 178° x 178° wide viewing angle. It supports 2 x 12G/6G/3G/HD/SD-SDI, 1x HDMI2.0, and 2 x 12G/6G/3G/HD/SD-SDI, 2 x 3G/HD/SD-SDI loop through, plus earphone and speaker out. -
Page 5: Installation Dimensions
Installation Dimension 576.2 383.8 49.6 97.9 134.9 145.1 460.8... -
Page 6: Operation Instruction
Operation Instructions ·Front Panel (5)(6) (7) ⑴ Speaker: For SDI/HDMI embedded audio. (Will not work if earphone is plugged in) ⑵ Desktop Stand Feet ⑶ Illuminated Push Button SDI1 SDI2 SDI3 SDI4 4XSDI HDMI INFO SDI1～SDI4： Press each button to switch to the corresponding input source. 4XSDI/QUAD：... -
Page 7: Osd
·OSD TC：00:15:13:07 CAMERA 1 Mg75 Mg75 Cy75 Cy75 YI75 YI75 Delta = 1.0 Delta = 0.0 1 2 3 4 5 6 7 8 9 10111213141516 L -20DB 01CH R -22DB 01CH ⑴ Time Code （ SDI） Under SDI input, the monitor can display Time code information (LTC, VITC1&2). If no Time code info is detected, it will display “TC UNLOCKED”... - Page 8 Introduction of audio and video functions 16-ch embedded audio meters Under SDI and HDMI, it displays 16 channels embedded audio meters. The audio meter is green, and will turn yellow when audio exceeds -20dB, and turn red when audio exceeds -9dB. Time code （...
-
Page 9: Rear Panel
Rear Panel (10) ⑴ SFP port Input terminal for 12G/6G/3G/HD/SD-SDI SFP optical fiber receiver adaptor. The SFP adaptor is optional purchased. ⑵ SDI IN&OUT: 12G-SDIx2 （ IN&OUT） 3G-SDIx2 （ IN&OUT） ⑶ ETHERNET: 1000M high speed RJ45 ethernet port, for webserver IP external control. ⑷... -
Page 10: Main Menu
Main menu BM-U243 has OSD to adjust the parameters and settings, for example: Picture, scanning, Assist, etc. 1. Press “MENU/ VOLUME” button, the main menu will popup from the left top of the screen. The selected main menu highlights in yellow. - Page 11 Submenu introduction （the default values are marked with underline ） 1. Exit & Status Displays the current status, the details are as down below: Exit&Status Format no signal Channel SDI1 Color Temp Scanning Panel Fit Audio Bar Time Code Version v4.3.7r Format: Input video format, If no video detected in current inputs source, it will display “No Signal”...
- Page 12 3.Picture To adjust picture parameters. Exit: Return to Main Menu. Contrast: Adjust the contrast of the display. Picture Exit Brightness: Adjust the brightness of the display. Contrast -100~100, 0 Brightness -100~100, 0 Chroma: Adjust the saturation of the display. Chroma -100~100, 0 Sharpness: Adjust the sharpness of the display.
- Page 13 5、 Scanning Scanning Exit Scanning Panel Fit, H Fit(4K), Native Zoom Mode OFF, Top Left, Top, Top Right, Left, Center, Right, Botton Left, Bottom, Bottom Right Flip Mode OFF, ON Freeze Frame OFF, Top Half, Bottom Half, Full Odd/Even Frame OFF, Odd Mode, Even Mode Exit: Return to Main Menu.
- Page 14 GPI_1 GPI_2 GPI_4 GPI_3 GPI_5 GPI_6 Tally: Turn the tally display on/off. Tally Position: Tally display position setting. F1~F3: Assign functions to the function keys F1 ‒ F3 on the front key board. F1-F3 can be setted as the down below functions: Time Code, Color Temp, Flip Mode, Native Mode, Waveform, UMD, Marker, H/V Delay, Blue Only, Audio Bar, Zebra, Vector, Low Latency mode, Histogram, Odd/Even Frame.
- Page 15 Waveform: Waveform Exit Waveform OFF, ON WFM Type Y, Cb, Cr, R, G, B WFM Position Bottom Left, Bottom Right, Top Left, Top Right WFM Blending OFF, LOW, HIGH WFM Color White, Color, Green WFM Single Line OFF, ON WFM Line Count Exit: Return to Assist submenu.
- Page 16 Histogram: Histogram Exit Histogram OFF, ON Histogram Blending OFF, LOW, HIGH Exit: Return to Assist submenu. Histogram: Turn on/off the Histogram pattern. Histogram Blending: Histogram pattern background transparency selection. Marker: Marker Exit Marker OFF, ON Marker Select 4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1 Safety Area 80%~99%, 80% Fit Marker...
- Page 17 8.De-embed De-embed Exit Lissajous OFF,ON Lissajous Position Top Left,Top Right, Bottom Left,Bottom Right Audio Bar OFF, ON Bar Position Top Left, Top Right, Bottom Left, Bottom Right Bar Blending OFF, LOW, HIGH Bar Type TYPE1, TYPE2 Left Channel Channel 1~Channel 16, Channel 1 Right Channel Channel 1~Channel 16, Channel 2 Volume...
- Page 18 10. System System Exit Key Lock OFF, Full Lock, Rotation Key Lock, Key Button Lock Recall Profile Factory, User 1~User 8 Save Profile User 1~User 8 Low Latency Mode OFF, ON Green Mode Black Backlight, Gray Backlight Idle Duration 30Sec, 1Hour, 2Hour, 4Hour, OFF 192.168.001.200 Net Mask 255.255.255.000...
- Page 19 ETHERNET 1) Enter Menu- External Control - IP/Net Mask/Gateway/Port to set the monitor addresses. Set the computer Ethernet IP address at the same LAN environment as the Monitor. 2) Launch any of a web browser on the computer, and enter URL: Monitor IP + port (for example 192.168.1.99:8080).
- Page 20 Webserver page control interface...
-
Page 21: Specification
Specification LCD Performance Size 23.8 inches Display area 527.04×296.46 mm Resolution 3840×RGB×2160 Display Colors 1.07G Aspect ratio 16:9 Brightness 300 cd／m Contrast 1000:1 Viewing Angle 178°／178° Input/Output BNC×2 12G/6G/3G/HD/SD-SDI×2 BNC×2 3G/HD/SD-SDI×2 Input HDMI×1 HDMI 2.0 RS-485×2 GPI×1、 UMD×1 USB×1 Output BNC×2 12G/6G/3G/HD/SD-SDI×2 BNC×2... -
Page 22: Trouble-Shooting
Trouble-shooting symptom Possible causes Solution Please check if the power is connected, and then The power is not turned on press “POWER” button to turn on the monitor Reconnect to power supply Unstable power voltage BNC or HDMI cable loose contact or not correctly Check and correctly connect the BNC or HDMI cable connected... - Page 23 SWIT Electronics Co., Ltd. Add: 10 Hengtong Road, Xin'gang, Nanjing Economic and Technological Development Zone, Nanjing 210038, P.R.China Tel: +86-25-85805753 Email: contact@swit.cc SWIT Electronics Europe GmbH Add: Hochstr. 17, 47228 Duisburg, Germany Tel: +49(0)20659799339 Email: info@swit-europe.com SWIT Electronics America, Inc Add: 3350 Scott Boulevard 61-02, Santa Clara, CA 95054, USA Tel: (408)260-8258, 1-866-986-SWIT(7948) Email: info@swit.us...
