GETTING CONNECTED

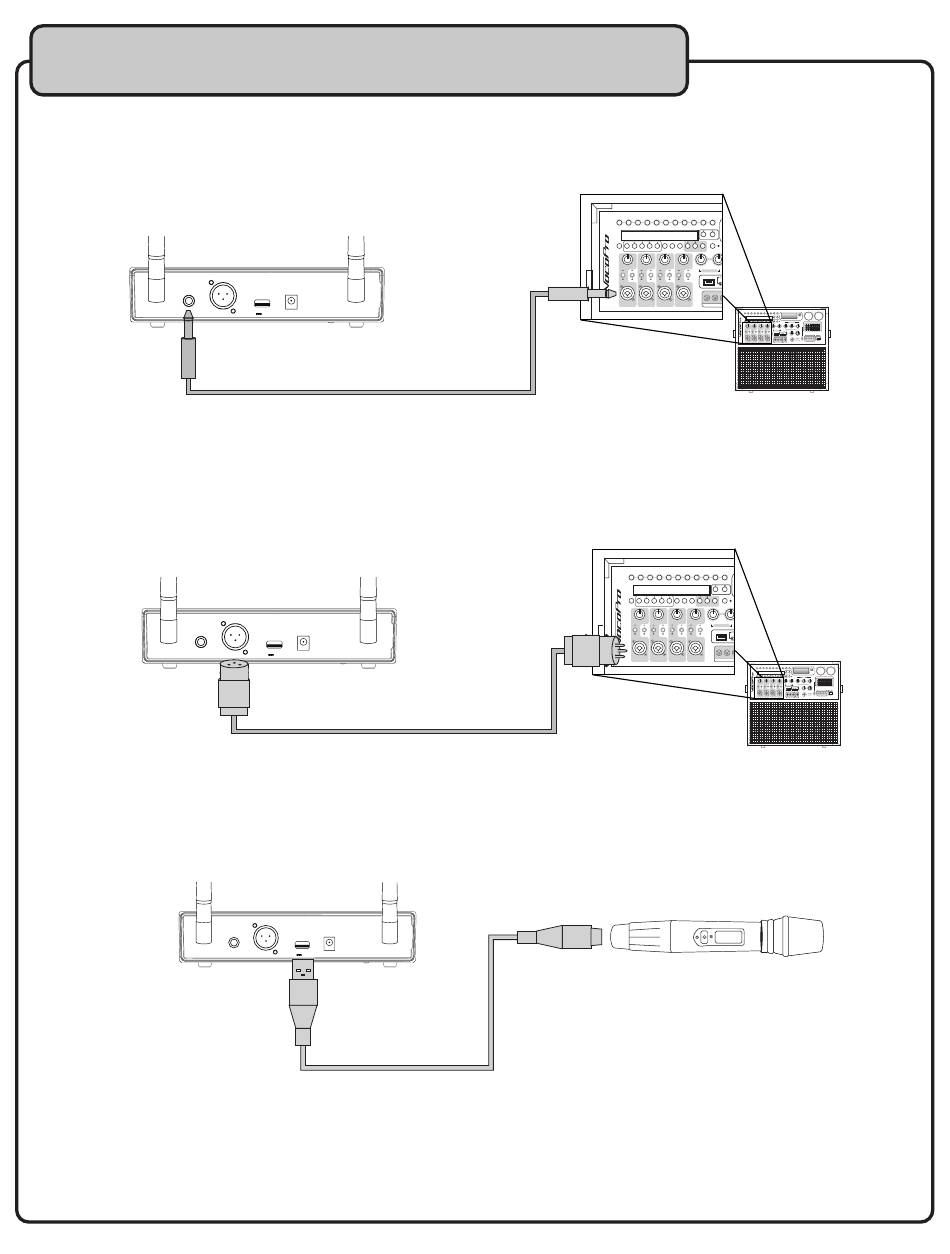

The Digital -1 uses two types of connections: balanced XLR and unbalanced ¼" . One of these
connections must be made to the mixer or sound system in order for sound to be heard .
USING THE UNBALANCED ¼":
• Connect one end of the ¼" cable into the Mixed Output jack located on the back of the Digital-1
receiver .
• Connect the other end of the ¼" cable into a unbalanced microphone input jack on the mixer or
sound system being used .
USING THE BALANCED XLR:
• Connect the female end of a balanced XLR cable into the Balanced Output jack located on the back
of the Digital-1 receiver .
• Connect the male end of the balanced XLR cable into a balanced microphone input jack on the mixer
or sound system being used .
USING THE USB RECHARGE JACK:
• Connect one of a micro-USB cable into the USB Charge Output located on the back of the Digital-1
receiver .
• Connect the other end of the micro-USB cable into the USB Charge jack located on the bottom end
of the microphone .
