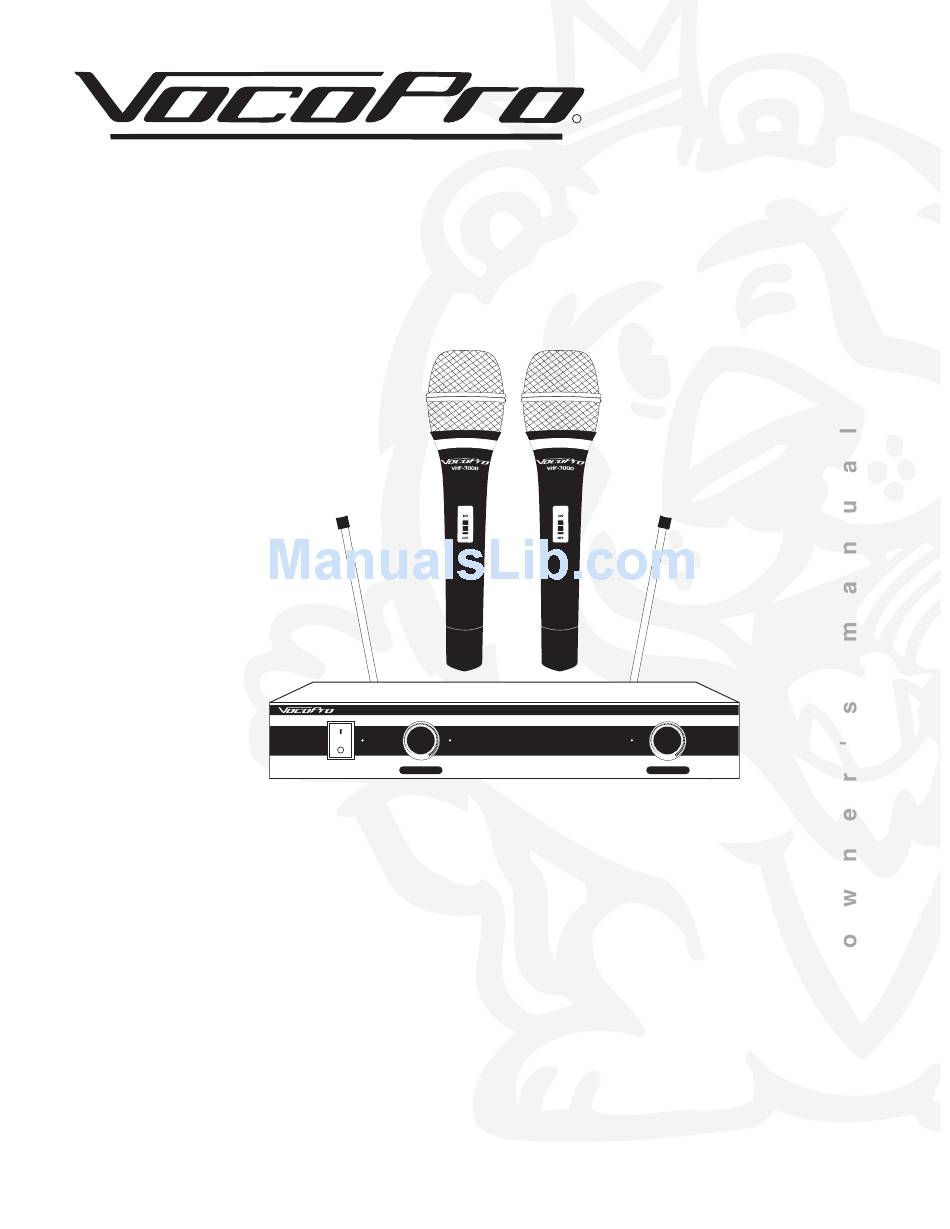

- Page 1 THE SINGER'S ULTIMATE CHOICE VHF-3000 DUAL CHANNEL VHF WIRELESS MICROPHONE SYSTEM VOLUME VOLUME POWER CHANNEL 1 CHANNEL 2 VHF-3000 DUAL-CHANNEL VHF WIRELESS MICROPHONE SYSTEM...
-
Page 2: Table Of Contents
Table of Contents Safety instructions ... 2 FCC information... 3 Welcome... 4 Listening for a lifetime ... 5 Specifications and features... 6 Getting started... 7 Front and rear panel descriptions... 8 Microphone descriptions... 9 Getting connected... 10 Microphone basics... 11 Operations... -
Page 3: Safety Instructions
Safety Instructions CAUTION RISK OF SHOCK CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user- serviceable parts inside. Only refer servicing to qualified service personnel. Explanation of Graphical Symbols The lightning flash & arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of danger. -
Page 4: Fcc Information
UNIT!: This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Vocopro may void your authority, granted by the FCC, to use this product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. -
Page 5: Welcome
Club VocoPro for Karaoke news and events, chat rooms, club directories and even a KJ Service directory! We look forward to hearing you sound like a PRO, with VocoPro, your ultimate choice in Karaoke entertainment. Please record the model number and serial number below, for easy reference, in case of loss or theft. These numbers are located on the rear panel of the unit. -
Page 6: Listening For A Lifetime
Now it’s time to consider how you can maximize the fun and excitement your equipment offers. VocoPro and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. -
Page 7: Specifications And Features
Specifications and Features SPECIFICATIONS TX Frequency: RF Output Power: RF Spur Emission: Normal Deviation: Current Drain: T.H.D.: Sensitivity: Mute Sen: Audio Output Level: Audio Frequency Responses: S/N Ratio: T.H.D.: Battery: Power: FEATURES • 2 wireless handheld mics included • 2 mic outputs •... -
Page 8: Getting Started
NOTE: Depending on your rack case design, it may be necessary to allow for sufficient space for the antennas. 3. While aligned, use rack case screws (not included) in the order shown below to stabilize the VHF-3000 in its space, using the “X” rotation (numbered below) will ensure even tension and plush alignment. -
Page 9: Front And Rear Panel Descriptions
2. VOLUME controls - Adjusts the individual VOLUME of the receiver’s 2 microphone channels. 3. POWER (LED) - Indicates whether the VHF-3000 is ON or OFF. When it is lit, the power is ON. 4. RF (LEDs) - Lights when RF signals are received from the microphone channels. -
Page 10: Microphone Descriptions
Microphone Descriptions Microphone 1. GRILL - Protects the microphone cartridge and helps reduce “breathy” and wind noise pick-up. 2. POWER switch - Used to turn the microphone power ON and OFF. The mic power is ON when the switch is in the ON position and the power is OFF when the switch is in the OFF position. -
Page 11: Getting Connected
Getting Connected 1. Connect the AC POWER ADAPTER to the VHF-3000 receiver’s POWER INPUT connector, then plug the ADAPTER into a compatible AC electrical outlet. 2. Connect the VHF-3000’s receiver to a sound system, mixer or amplifier’s microphone input(s) with ¼” output jacks. -
Page 12: Microphone Basics
Microphone Position The VHF-3000 is ideal for close-up vocals and can be held in the hand or mounted on a mic stand. The most common applications and placement techniques are listed below. Keep in mind that microphone technique is largely a matter of personal taste, and there is no one “correct”... -
Page 13: Operations
OPERATIONS 1. Press the POWER button on the VHF-3000 receiver’s front panel. The power LED on the receiver will be BLUE. 2. Adjust the receiver’s VOLUME controls to approximately 50%. -
Page 14: Troubleshooting
Troubleshooting PROBLEMS No sound; receiver RF light(s) and mic(s) not lit. No receiver sound but the RF lights are glowing. Received signal is noisy or contains interference with transmitter on. Noise coming from the receiver with the mics turned OFF. Momentary loss of sound as transmitter is moved around performing area. - Page 15 � �� ���������������������������� VHF-3000 owner’s manual © VocoPro 2007 v2.0 www.vocopro.com...
