Summary of Contents for Aivia A-MIP 210

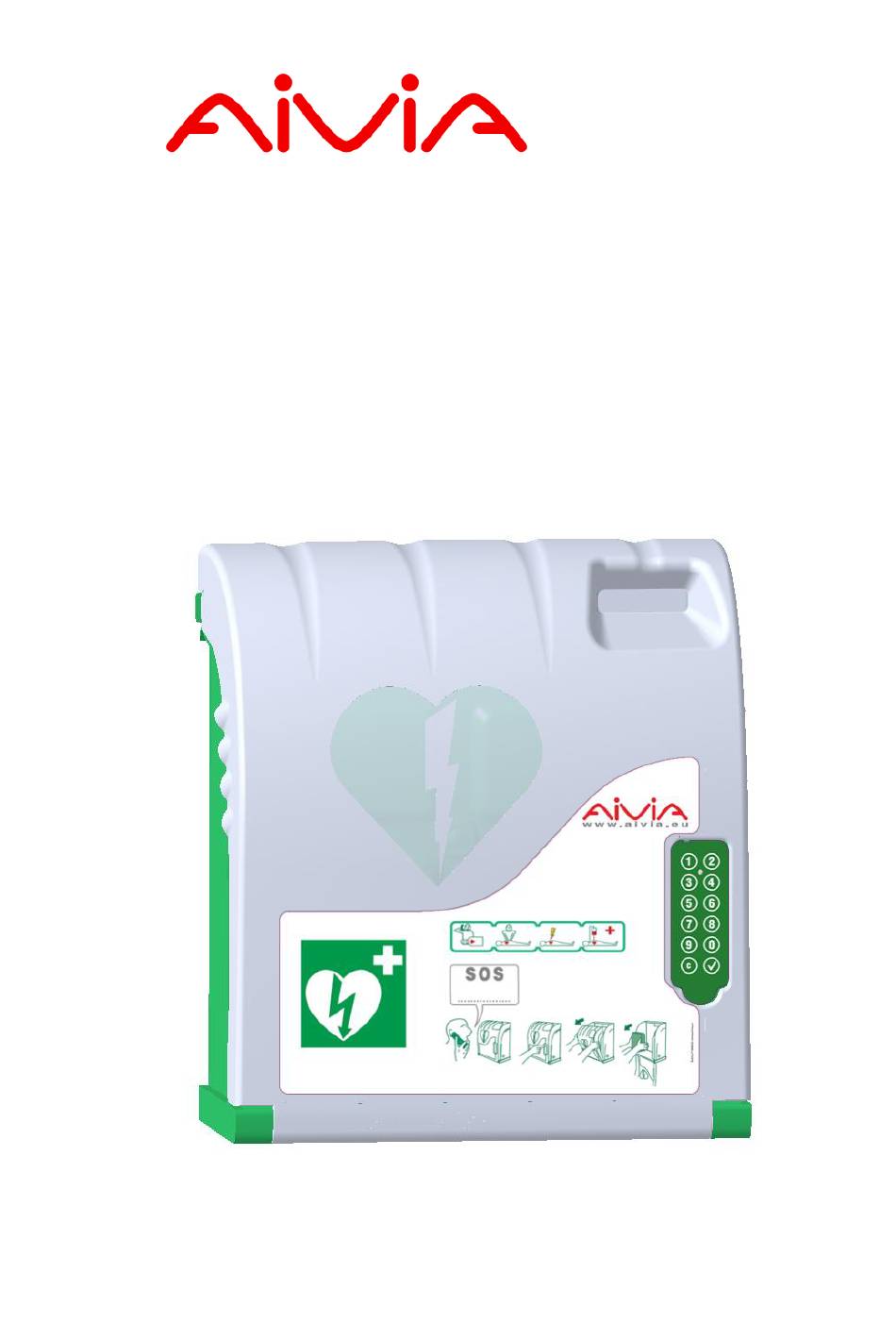

- Page 1 A-MIP 210 Installation and user guide...
- Page 2 • To avoid risk of fire or electric shock, the AIVIA should not be exposed to any naked flame. THE AIVIA CONTAINS BATTERIES. • Leave a space of at least 13 cm around the AIVIA to THERE IS A RISK OF EXPLOSION IF THE assure proper ventilation.
-
Page 3: Table Of Contents
Summary Installation Important Aivia presentation Identification plate Initial opening Aivia installation Connecting the power supply to the Aivia Installing the AED Setting up the Aivia Door opening codes Alert temperatures Heating/Fan activation temperatures Close the AIVIA door Pictograms Night mode operation... -
Page 4: Installation
First opening Door Identification plate. * Option • To open the Aivia door before it is fixed on the wall, use a small screwdriver. • Slip the screwdriver between the door and the chassis of the Aivia. • Pull up the screwdriver, taking care to not leave marks on the Aivia. -
Page 5: Aivia Installation
• Installation must be carried out by a qualified operator who adheres to the Bornavie charter or authorized by the Aivia manufacturer • If the Aivia is installed in a public street or place with public access, install a fixed ground plate (abutment) or column. -
Page 6: Connecting The Power Supply To The Aivia
Installation Connect the power supply to the Aivia • Fixing must be adapted to the type of support the Aivia is being fixed on. • The Aivia must be powered using 24V DC, see the • Aivia fixing must be able to carry a minimal load of «... -
Page 7: Installing The Aed
Alert temperatures • Low temperature alert entry (Heating option) : AED to be inserted vertically. If this threshold is reached, The aivia will flash 4 times to AED holding strap indicate a temperature alert. • The strap allows for a simple extraction of the AED while ensuring the AED is securely held. -
Page 8: Heating/Fan Activation Temperatures
Heating/Fan activation temperatures Pictograms • Entering the heating temperature (Heating option) • The signs on the door of AIVIA inform you of what to Heating will be triggered once this threshold is matched. do in case of emergency. It will stay activated as long as the temperature has not become warmer than the threshold. - Page 9 Notes...
-
Page 10: Use
• The fan allows the heat to be extracted from the Aivia. • Take the AED out. In hot weather, it is worthwhile checking that the alert... -
Page 11: In Case Of Malfunction
Continuous Aivia has been opened Check AED operates correctly, and presence of all the accesso- ries, if needed, contact your distributor. Withdraw the cap off the aivia door, and push back the door blocking axle with a stem . - Page 12 Notes...
-
Page 13: Electrical Installation
• The mains connection must include the primary phase, neutral, and earth. • The maximum full load secondary voltage drop must not exceed 2%, or 23.5V at the Aivia terminal. • The power block must be dust and water proof, and ventilated**. -
Page 14: Specifications
Specifications Mechanical characteristics • Operating temperatures and humidity : Minimum: -20ºC.(-4°F) Maximum: 55ºC. (131°F) without battery option 40°C (104°F) with battery option Relative humidity: 95% without condensation. • Temperature alerts: Low temperature alert: 5°C (41°F). High temperature alert: 40ºC (104°F) •... - Page 15 Notes...
- Page 16 2019-02-21 *A-MIP210-EN-206* info@aivia.eu...
