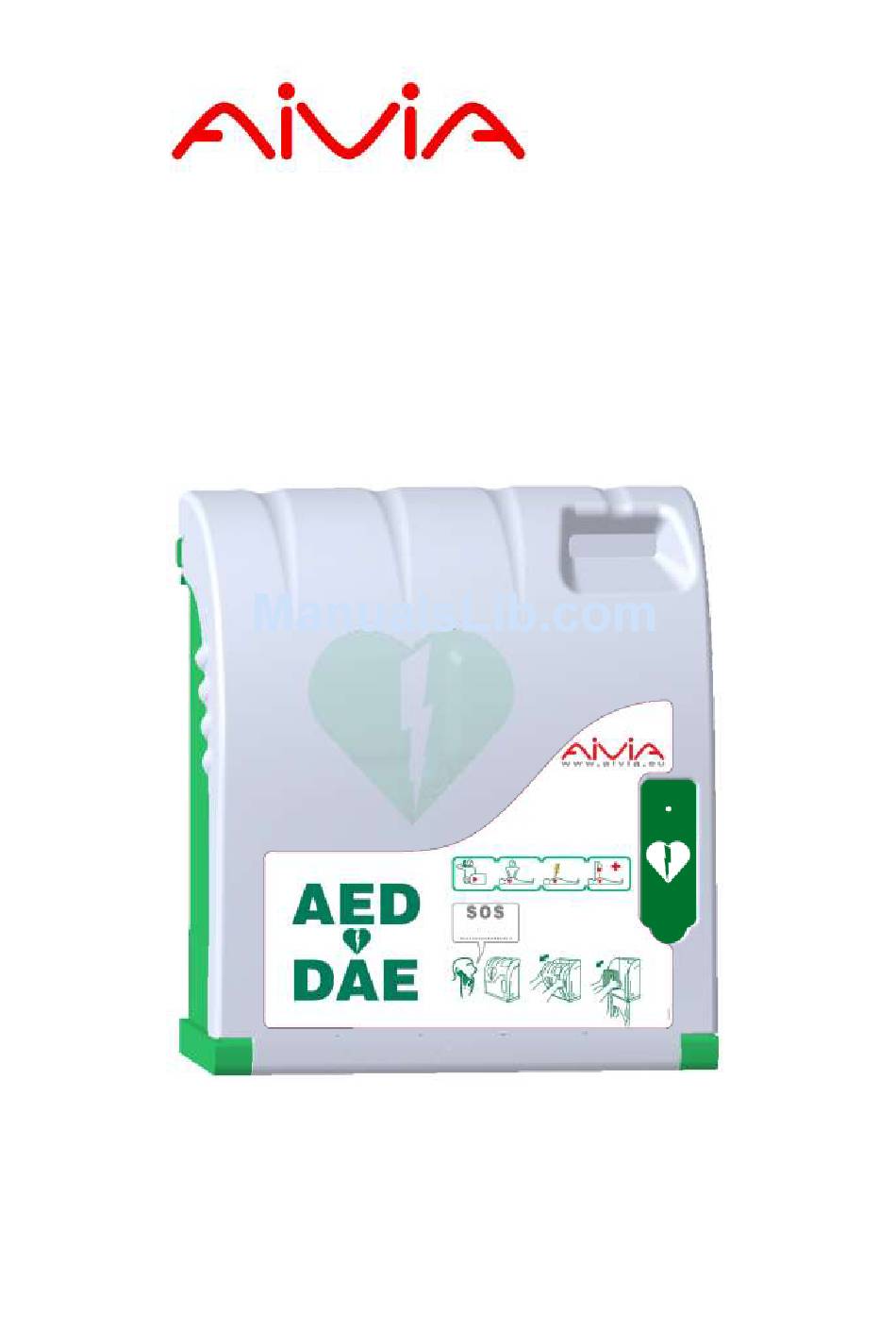

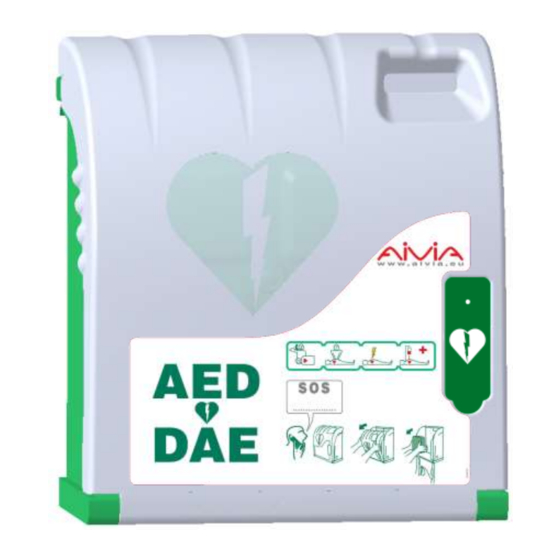

  • Page 1 A-MIP 200 Installation and Operating Manual A-MIP 200 V1.06...

  • Page 2: General Information

    • To avoid risk of fire or electric shock, the AIVIA should not be placed near any naked flame. • Leave a space of at least 13 cm around the AIVIA to assure proper ventilation. • Keep the AIVIA away from radiators or any other heat source.

  • Page 3: Table Of Contents

    Contents Installation Important Aivia presentation Identification Label Initial opening Aivia Mounting Connect power to the Aivia Setting up the defibrillator Installing seals Pictograms Night mode operation Heating option operation Alarm operation Using the Aivia After using the defibrillator Aivia Maintenance...

  • Page 4: Installation

    • For all communications with Customer Service or your representative, please have the Aivia reference number and serial number available. Initial opening •To open the Aivia door before wall mounting, use a small screwdriver. •Slide the screwdriver between the door and the Aivia Electronic compartment.

  • Page 5: Aivia Mounting

    Installation • Leave a 140 cm clear space in front of the Aivia wall Aivia Mounting mounting to allow door to open freely. Do not install Aivia exposed to direct sunlight. The defibrillator may be exposed to extreme temperatures. Useful zone for Aivia implementation •...

  • Page 6: Connect Power To The Aivia

    • Connect the terminal to the power connector. Power connection Access door mounting screws. Electronics access door Ensure that the Aivia is under power by checking that the red warning lights are blinking. • Unscrew the door mounting screw with a star screwdriver and tip the door from above.

  • Page 7: Setting Up The Defibrillator

    In case of any doubt, contact your defibrillator distributor. Pictograms The signs on the door of AIVIA inform you of what to do Slide the full length of the seal wire through the Aivia in an emergency. frame hole.

  • Page 8: Use

    Aivia Maintenance Clean the surfaces of the Aivia using a soft damp cloth. Wipe the Aivia with a soft, clean and dry cloth. Do not use chemical products or cleaners, which may damage the Aivia.

  • Page 9: Troubleshooting

    4. Check proper insertion into terminals 5. Contact supplier. • White lights do not blink in night operation. 1. Check power to Aivia. 2. Contact supplier. • Red lights do not blink when the door is opened. 1. Check power to Aivia.

  • Page 10: Electrical Installation

    The mains connection must include the primary phase, neutral, and earth. The maximum full load secondary voltage drop must not exceed 2%, or 23.5V at the Aivia terminal. The power block must be dust and water proof, and ventilated**. • The power block wiring must conform to standards on force in the country of use.

  • Page 11: Specifications

    Frame: ABS. Bracket: ABS. • Trappe : ABS. Electrical properties • Power supply: 24 VDC, 75 Watts, power limited source. • Aivia operating temperatures: Minimum: -20ºC. Maximum: 55ºC. • Temperature alarms: Low temperature alarm: 5ºC. High temperature alarm: 40ºC. • Heating option: (References: X2A200-XX001 or X2A200-XX101) Heating setpoint: 13ºC.
