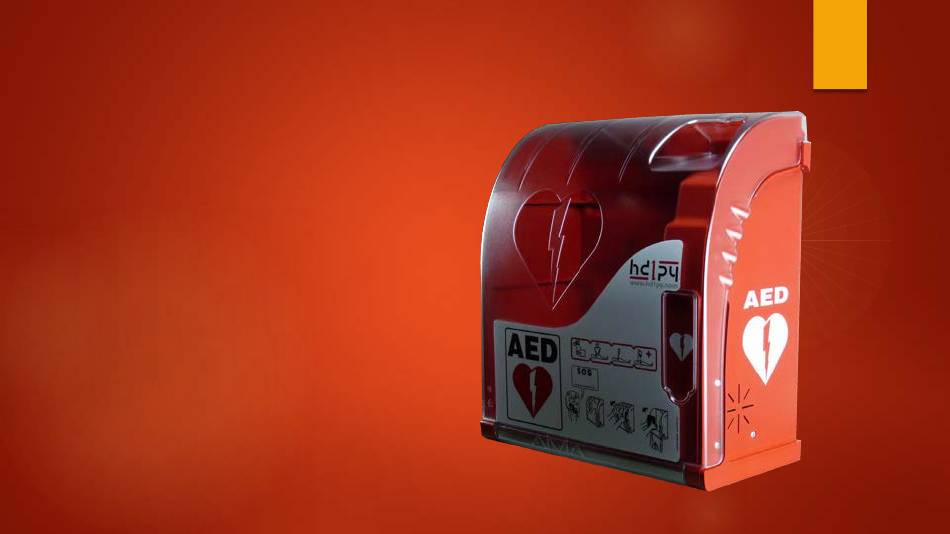

- Page 1 Aivia 100 QUICK INSTALLATION GUIDE THIS QUICK INSTALLATION GUIDE IS NOT RECOMMENDED TO REPLACE THE INSTALLATION/USER GUIDE. REVISED: 6/2017...
-
Page 2: Check Package Contents
Verify that your package has the following contents: Aivia cabinet Aivia drilling template (4) D-LR20 batteries (4) Seals Installation/User guide * Bungee cord If the package is missing any of these contents please email contact@hd1py.com immediately. *Read the Installation/User guide carefully before setting up the Aivia. - Page 3 Opening Aivia To open the Aivia for the first time use a flathead screwdriver Slide the screwdriver between the door and the Aivia frame behind the notch on the left first. Lift up on the screwdriver, be careful not to scratch the device ...
- Page 4 Put the template against the wall, with two holes at the top and the cable passage on the right as shown below. Use appropriate mounting method for the type of surface the Aivia is being installed on. Affix the AIVIA using the 3 mounting holes.
- Page 5 Powering the Aivia Unscrew the hatch (1) Insert the 4 D-LR20 batteries supplied, respecting polarity indications on the bottom of the battery holder (2) Red warning lights will flash indicating power Reattach hatch ...
- Page 6 Securing the defibrillator (two options for alarm activation) Place the defibrillator inside the Aivia, making sure the defibrillator is flush with the back of the Aivia. Place defibrillator behind bungee cord and slide the defibrillator all the way to the bottom of cabinet which will hold the defibrillator firmly in place.
- Page 7 Close the Aivia door completely. You will hear a popping sound letting you know the door is closed. Make sure the surface of both sides of the Aivia are clean. Attach the seal, covering both the Aivia door and the chassis ...
-
Page 8: Diagnosis / Troubleshooting
Diagnosis / Troubleshooting Red lights do not blink when batteries are installed. 1. Check correct battery polarity. 2. Check connecting wires from the battery holder. 3. Replace batteries. 4. Contact distributor. White lights do not blink during night operation. 1. Replace batteries. 2. - Page 9 Congratulations! You have just installed your first Aivia 100. If you have any questions or problems please feel free to contact us at: contact@hd1py.com 813-515-6995 V 4.01...
