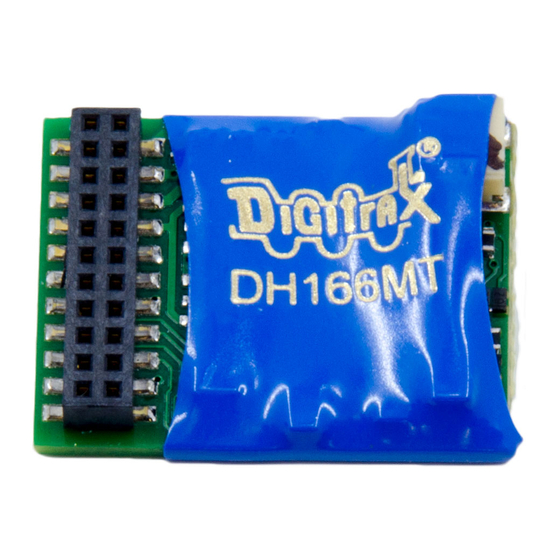

DH166MT
Fits HO Scale
Locomotives
.824"x.64"x.17"
20.92mm x 16.26mm x 4.32mm
Features:
▪
FX
Function outputs for prototypical lighting effects and on/off control:
3
Constant Brightness Lighting with directional or independent control.
Realistic Effects like Ditch lights, Mars lights, strobes, and many more
FX
& Standard Function Qualifiers operate functions based on direc-
3
tion, F0 on or off, direction and F0, and whether loco is moving.
Function Remapping for custom function setup.
Master Light Switch turns off all lights & functions with one keystroke.
Advanced Consist Function Controls
▪
Digitrax LocoMotion® System-Your locomotives look like the real thing.
The Digitrax LocoMotion System makes them run like the real thing, too!
Torque Compensation for smooth as silk silent operation.
128 Speed Step operation (14 or 28 steps can also be used).
Momentum with acceleration and deceleration.
Normal Direction of Travel is user selectable.
Switching Speed feature for easier and faster access to yard speeds.
3 Step Speed Tables set start, mid and max voltage for custom control.
28 Step Speed Tables with 256 level resolution for precise control.
▪
Configurable Logic Level or 12v F3-4 function outputs.
▪
Program CVs using any Digitrax Compatible Control system without having
to buy any extra equipment.
▪
Compatible with Locomotives using the 21MTC Interface
▪
Series 6 Decoder Features.
▪
Works with PX112-2 Power Xtender.
▪
Configurable FX
▪
2 Digit and 4 Digit Addressing.
▪
Basic, Advanced & UniVersal Consisting.
▪
SuperSonic motor drive for silent operation.
▪
Direct mode programming.
▪
Transponder Equipped ready for transponding on your Layout.
▪
Motor Isolation Protection helps prevent damage to your decoder.
▪
DCC Compatible.
▪
FCC Part 15, Class B RFI compliant.
▪
Digitrax "No Worries" Warranty.
© 2017 Digitrax, Inc.
Complete Train Control
Run Your Trains, Not Your Track!
HO Scale
Mobile Decoder
21MTC interface
1.5 Amp/2 Amp Peak
6 FX
3
Pulse Function available on all function outputs.
— 1 —
Functions, 0.5 Amp
3
www.digitrax.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Digitrax DH166MT
Summary of Contents for Digitrax DH166MT
- Page 1 ▪ Digitrax LocoMotion® System-Your locomotives look like the real thing. The Digitrax LocoMotion System makes them run like the real thing, too! Torque Compensation for smooth as silk silent operation. 128 Speed Step operation (14 or 28 steps can also be used).
- Page 2 1 DH166MT Function Decoder 1 Instruction Sheet Installation Information See the Digitrax Decoder Manual for complete decoder test procedures, instal- lation instructions, programming and technical information. Digitrax manuals and instructions are updated periodically. Please visit www.digitrax.com for the latest versions, technical updates and additional locomotive-specific installation instructions.
- Page 3 Installation Notes Do not exceed the decoder’s 500mA total function output rating. To use a function output with an inductive (coil) type load, see the Digitrax Decoder Manual for more information to avoid damage to the decoder. See the Digitrax Decoder Manual for full details of wiring 12-16V lamps, 1.5V lamps, and LEDs.
- Page 4 Speed Tables-How the Loco Responds to the Throttle With Digitrax LocoMotion, there are two types of speed tables: 3 Step Tables and High Resolution 28 Step Tables. Please see your Decoder Manual for a discussion of the 28 Step Tables.
- Page 5 OFF. To turn on transponding, program CV61 to a value of 002. This al- lows you to use Digitrax transponding to keep track of your rolling stock. When transponding is enabled, the front light of the locomotive will flicker slightly to indicate transponding signal is being communicated.
- Page 6 Function Outputs on the DH166MT The DH166MT is set up at the factory to control six function outputs. The DH166MT is configured to control the lights on the factory light board through the 21MTC interface using Function 0 (FOF-forward and FOR-reverse) for direc- tional lighting.
- Page 7 That’s it! A simple, straightforward warranty with no tricky language! Visit www.digitrax.com for complete warranty details and instructions for returning items for repair. Please return warranty items directly to Digitrax - DO NOT return items to place of purchase. © 2017 Digitrax, Inc.
- Page 8 DH166MT Fits Many HO Locomotives with 21MTC interface 2443 Transmitter Road Panama City, FL 32404 www.digitrax.com Made in the USA Part 15, Class B RFI Compliant Need Support? helpdesk.digitrax.com...
