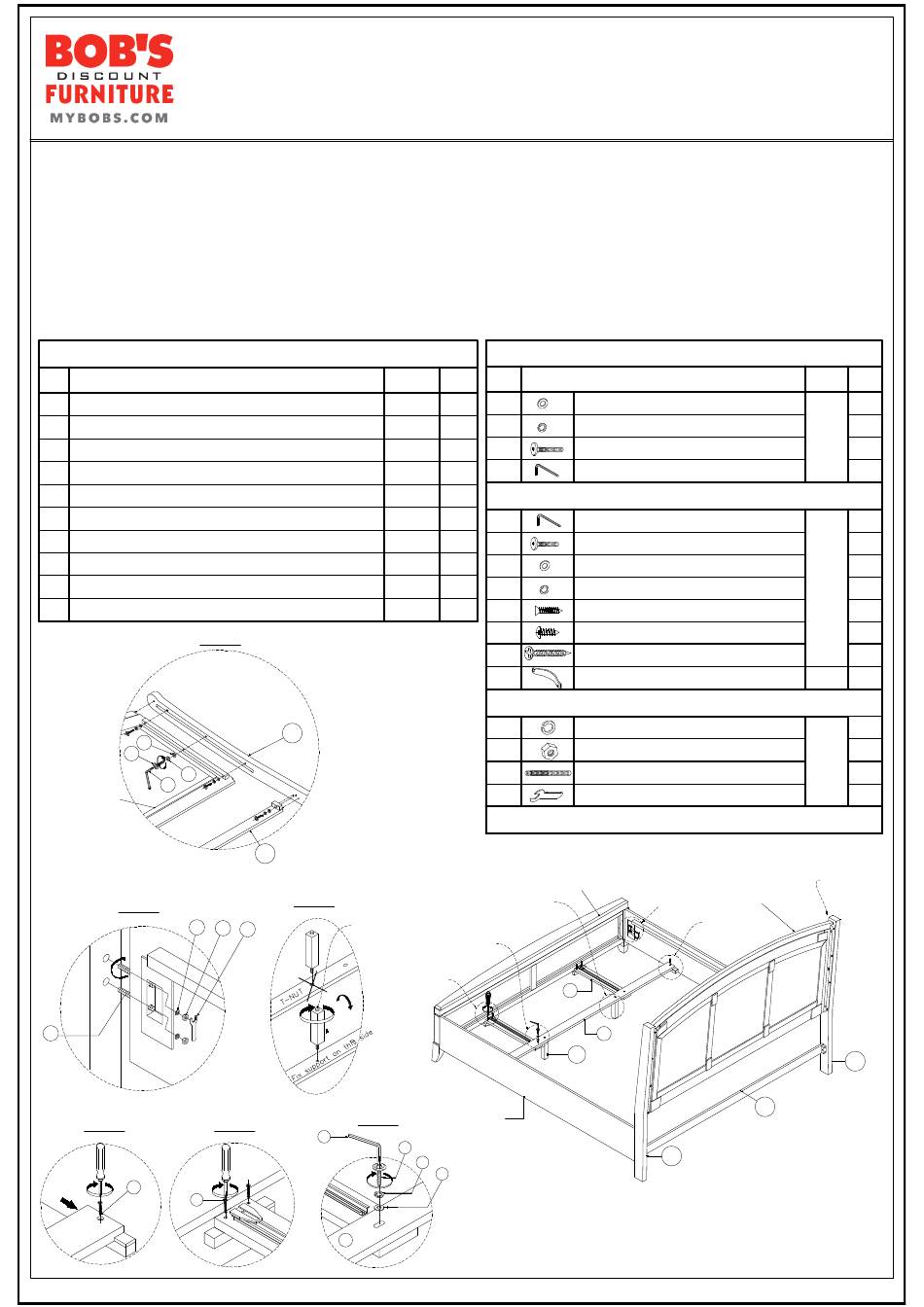

Bob's Discount Furniture ELEVATIONS KING BED 20062629 Assembly Instructions

Cautions: Please read instructions thoroughly before unpacking assembly parts. Sharp, exposed staple tips can cause injury,
therefore, for your protection, please remove any exposed staples used in parking.
1. We recommend that you should assemble this product with the assistance of another person; this will make assembly easier,
and will help to eliminate damage to the product or injury to persons during assembly.
2. Be sure to check all packing materials carefully for small parts that may have come loose inside the carton druring shipment.
3. Please do not over tighten screws or bolts.
4. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your newly
purchased product correctly and efficiently.
PART LIST
Part Description
No.
A1
KING HEADBOARD LEFT LEG
A2
KING HEADBOARD RIGHT LEG
B
KING BED SLATS
C
KING BED SLATS SUPPORT LEG WITH LEVELER
D
KING FB STORAGE DRAWER SLAT
E
BED FB STORAGE DRAWER SUPPORT LEG
F KING BED STORAGE DRAWER
G FOOTBOARD STORAGE RAIL WITH DRAWER SLIDE
KING HEADBOARD BOTTOM RAIL
H
I
KING BED HARDWARE ASSEMBLY PKG COMPLETE
Step 1
1
3
2
4
Headboard
Step 2
13
15
Step 4
11
11
ASSEMBLY INSTRUCTIONS FOR
- KING HEADBOARD
- KING STORAGE FOOTBOARD
- QUEEN /KING RAILS
A1
H
Step 3
Leveler
14
16
Step 6
Step 5
5
D
MADE IN VIETNAM
No
Q'ty
Code.
HBLGL 1
1
HBLGR
1 2
3
KBSLT
13
4
10
KQSPL
KDSLT
1
HEADBOARD HARDWARE PACKED WITH HEADBOARD
FBSPL
2
5
KSTDR 2
6
2
FBRAL
7
KHBRL
8
1
KBHW
1BAG 9
10
11
12
FOOTBOARD HARDWARE PACKED WITH FOOTBOARD
13
14
15
16
RAILS HARDWARE PACKED WITH RAIL
Footboard
Step 3
Step 6
Step 5
Side rails
6
8
7
Note: If the up and down side of storage drawer can't fit with footboard frame,
adjust height of support leg (step 3), If the right and left side of storage drawer
front can't fit with footboard frame. Please adjust the end position of plywood
where storage glides sit on (step 6).
HARDWARE LIST
Hardware Description
Flat washer (Ø1/4" x 3/4")
Spring washer (Ø1/4"x 3/8")
Bolt (Ø1/4" x 2")
Allen key (4 x 59mm)
Allen key (4 x 59mm)
Short Bolt (Ø1/4" x 1 1/2")
Flat washer (Ø1/4"x 3/4")
Lock Washer (Ø1/4" x 3/8")
Screw (Ø3 x 3/4")
Screw (Ø3.5 x 3/8")
Screw (Ø4 x 1 1/4")
Handle with screws
Lock Washer (Ø5/16" x 1/2")
Nut (Ø5/16"x1/2")
Double thread bolt (Ø5/16" x 3")
Head Wrench
Headboard
Step 2
Step 4
G
D
E
A2
1/2
Code. Q'ty
8
8
KBHW
8
1
1
2
2
2
KBHW
4
4
32
2set
HADS
8
8
KBHW
8
1
Step 1
A1
H
