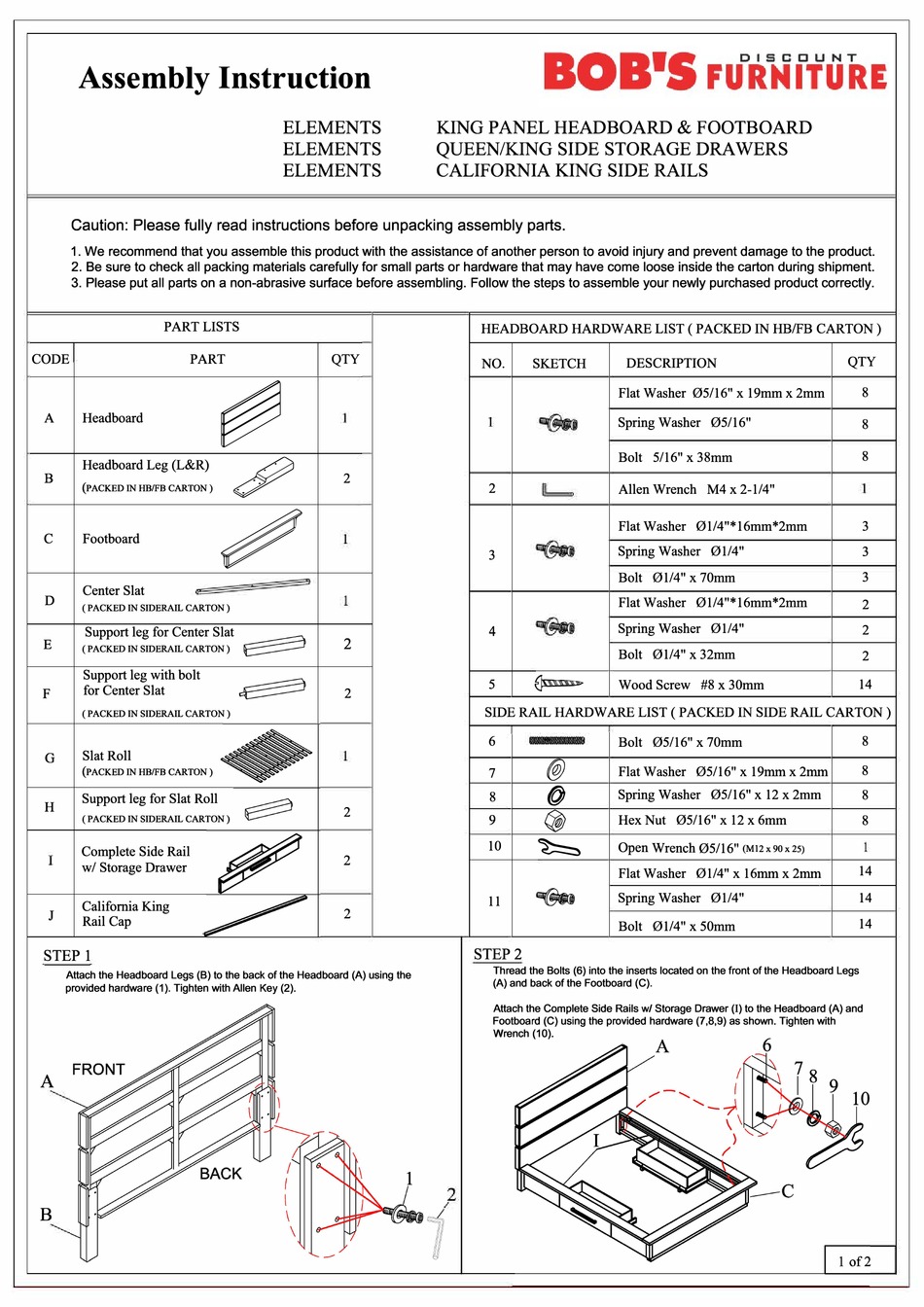

Assembly Instruction
Caution: Please fully read instructions before unpacking assembly parts.
1. We recommend that you assemble this product with the assistance of another person to avoid injury and prevent damage to the product.
2. Be sure to check all packing materials carefully for small parts or hardware that may have come loose inside the carton during shipment.
3. Please put all parts on a non-abrasive surface before assembling. Follow the steps to assemble your newly purchased product correctly.
PART LISTS
CODE PART
A Headboard
Headboard Leg (L&R)
B
(PACKED IN HB/FB CARTON)
Footboard
C
Center Slat
D
( PACKED IN SIDERAIL CARTON)
Support leg for Center Slat
E
( PACKED IN SIDERAIL CARTON)
Support leg with bolt
for Center Slat
F
( PACKED IN SIDERAIL CARTON)
Slat Roll
G
(PACKED IN HB/FB CARTON)
Support leg for Slat Roll
H
( PACKED IN SIDERAIL CARTON)
Complete Side Rail
w/ Storage Drawer
California King
J
Rail Cap
STEP 1
Attach the Headboard Legs (B) to the back of the Headboard (A) using the
provided hardware (1 ). Tighten with Allen Key (2).
A
B
ELEMENTS
ELEMENTS
ELEMENTS
QTY
�
2
�
�
2
2
2
2
2
KING PANEL HEADBOARD & FOOTBOARD
QUEEN/KING SIDE STORAGE DRAWERS
CALIFORNIA KING SIDE RAILS
HEADBOARD HARDWARE LIST ( PACKED IN HB/FB CARTON )
NO. SKETCH
2
3
4
5
�
SIDE RAIL HARDWARE LIST ( PACKED IN SIDE RAIL CAR TON )
6
@
7
@
8
(@
9
10
�
�
11
STEP2
Thread the Bolts (6) into the inserts located on the front of the Headboard Legs
(A) and back of the Footboard (C).
Attach the Complete Side Rails w/ Storage Drawer (I) to the Headboard (A) and
Footboard (C) using the provided hardware (7,8,9) as shown. Tighten with
Wrench (10).
DESCRIPTION
Flat Washer 05/16" x 19mm x 2mm
Spring Washer 05/16"
Bolt 5/16" x 38mm
Allen Wrench M4 x 2-1/4"
Flat Washer 01/4"*16mm*2mm
Spring Washer 01/4"
Bolt 01/4" x 70mm
Flat Washer 01/4"*16mm*2mm
Spring Washer 01/4"
Bolt 01/4" x 32mm
Wood Screw #8 x 30mm
Bolt 05/16" x 70mm
Flat Washer 05/16" x 19mm x 2mm
Spring Washer 05/16" x 12 x 2mm
Hex Nut 05/16" x 12 x 6mm
Open Wrench 05/16"
(M12x90x25)
Flat Washer 01/4" x 16mm x 2mm
Spring Washer 01/4"
Bolt 01/4" x 50mm
QTY
8
8
8
3
3
3
2
2
2
14
8
8
8
8
14
14
14
