Gecko TSPA-1 Quick Reference Card

Starting Pump 1:

Press Pump 1 to turn Pump 1 on at low speed. Press a second time to
turn Pump 1 to high speed. A third time turns Pump 1 off. A built-in timer
1
automatically turns Pump 1 off after 20 minutes, unless it has been
manually deactivated.
The "Pump 1" icon lights up when Pump 1 is on at high speed. It flashes
1
when Pump 1 is on at low speed.

Starting Pump 2:

Press Pump 2 to turn Pump 2 on at low speed. Press a second time to
turn Pump 2 to high speed. A third time turns Pump 2 off. A built-in timer
2
automatically turns Pump 2 off after 20 minutes, unless it has been
manually deactivated.
The "Pump 2" icon lights up when Pump 2 is on at high speed. It flashes
2
when Pump 2 is on at low speed.

Starting the blower:

Press Blower to turn blower on at high speed. Pressing a second and a
third time reduces blower speed. A fourth time turns blower off. A built-
in timer automatically turns blower off after 20 minutes, unless it has been
manually deactivated.
The "Blower" icon lights up when blower is on at high speed. It flashes
when blower is on at medium or low speed.

Turning the light on:

Press Light to turn light on at high intensity. Pressing a second and a third
time reduces light intensity. A fourth time turns light off. A built-in timer
automatically turns light off after 2 hours, unless it has been manually
deactivated.
The "Light" icon lights up when light is on at high intensity. It flashes
when light is on at medium or low intensity.
If your spa is equipped with an optional fiber box, press Light key once to turn
the fiber box (motor & light) on. Press a second time to turn the fiber box
motor off and leave the light on. A third time turns both fiber box motor & light
off. A built-in timer automatically turns the fiber box off after 2 hours,
unless it has been manually deactivated. The "Light" icon lights up when the
fiber box light is on. It flashes when both fiber box motor & light are on.

Setting water temperature:

Press Up or Down to regulate water temperature. The temperature
setting will be displayed for 5 seconds to confirm your new selection.
The "Set Point" symbol indicates the desired temperature, NOT the
current water temperature!
Water temperature can be adjusted by 1˚ increments, from 59 to 104˚F
(15 to 40˚C).

Economy mode:

Press Mode to override the Economy mode programming (see
overleaf). The override will last until midnight.
The "Economy Mode" icon lights up when the system is in
Economy mode.

Automatic water heater start:

When water temperature is 1˚F (0.5˚C) lower than the Set Point, the
heater will automatically turn on until water temperature reaches Set
Point plus 1˚F (0.5˚C).
The "Heater" icon lights up when the heater is on.

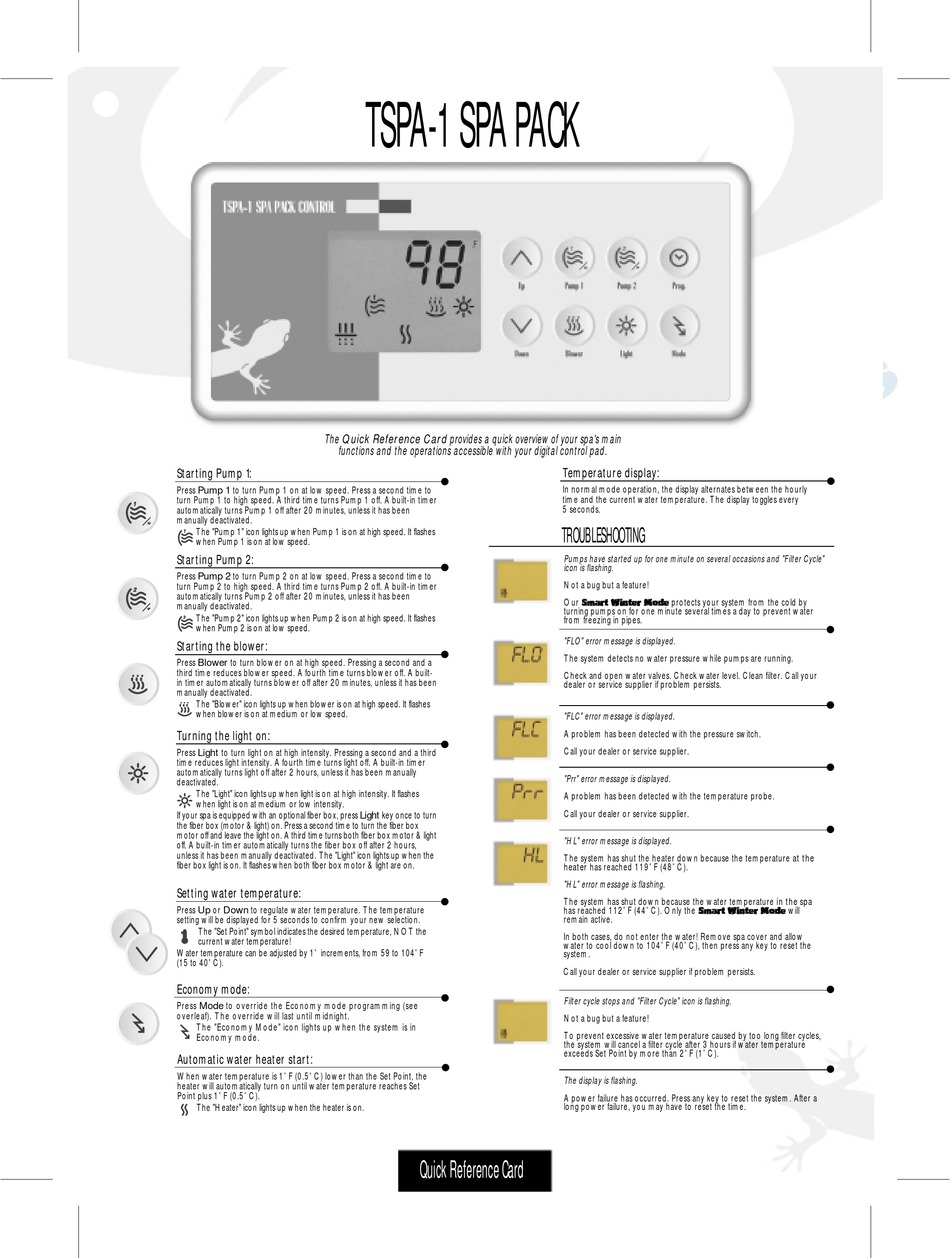

TSPA-1 SPA PACK

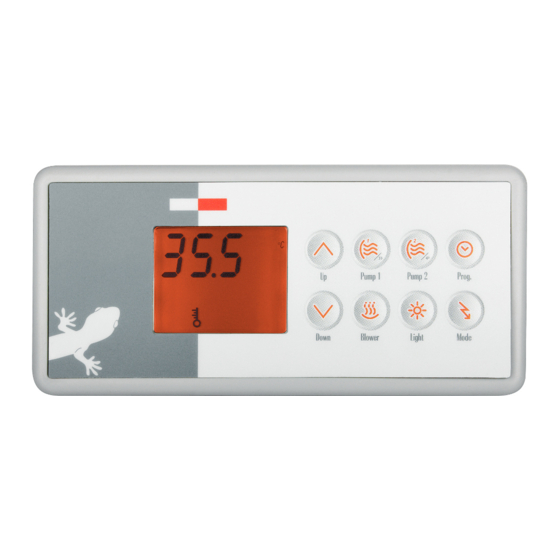

The Quick Reference Card provides a quick overview of your spa's main
functions and the operations accessible with your digital control pad.
Quick Reference Card

Temperature display:

In normal mode operation, the display alternates between the hourly
time and the current water temperature. The display toggles every
5 seconds.
TROUBLESHOOTING
Pumps have started up for one minute on several occasions and "Filter Cycle"
icon is flashing.
Not a bug but a feature!
Our Smart Winter Mode protects your system from the cold by
turning pumps on for one minute several times a day to prevent water
from freezing in pipes.
"FLO" error message is displayed.
The system detects no water pressure while pumps are running.
Check and open water valves. Check water level. Clean filter. Call your
dealer or service supplier if problem persists.
"FLC" error message is displayed.
A problem has been detected with the pressure switch.
Call your dealer or service supplier.
"Prr" error message is displayed.
A problem has been detected with the temperature probe.
Call your dealer or service supplier.
"HL" error message is displayed.
The system has shut the heater down because the temperature at the
heater has reached 119˚F (48˚C).
"HL" error message is flashing.
The system has shut down because the water temperature in the spa
has reached 112˚F (44˚C). Only the Smart Winter Mode will
remain active.
In both cases, do not enter the water! Remove spa cover and allow
water to cool down to 104˚F (40˚C), then press any key to reset the
system.
Call your dealer or service supplier if problem persists.
Filter cycle stops and "Filter Cycle" icon is flashing.
Not a bug but a feature!
To prevent excessive water temperature caused by too long filter cycles,
the system will cancel a filter cycle after 3 hours if water temperature
exceeds Set Point by more than 2˚F (1˚C).
The display is flashing.
A power failure has occurred. Press any key to reset the system. After a
long power failure, you may have to reset the time.
