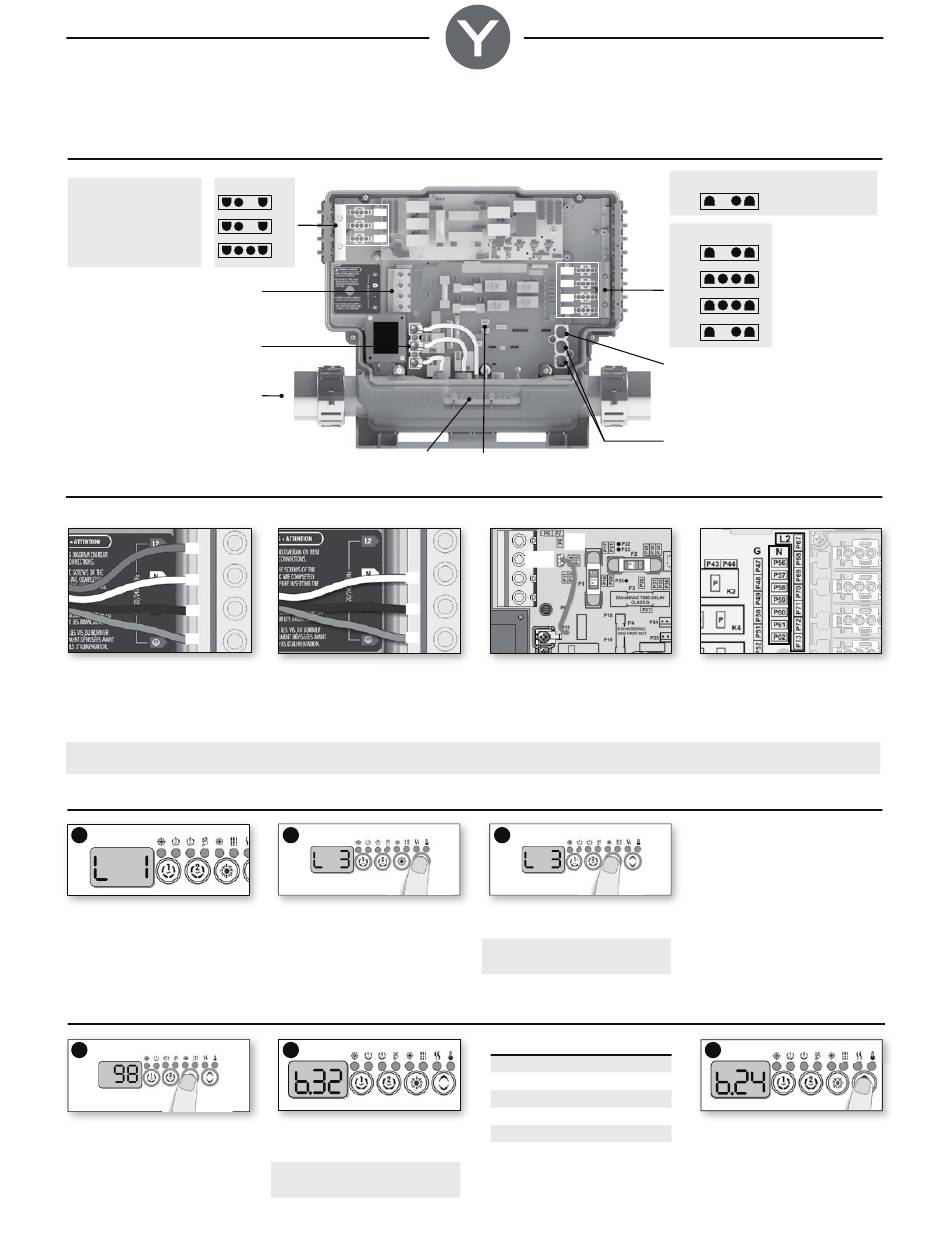

Gecko in.yt-7 0611-221031-361 Quick Start Card

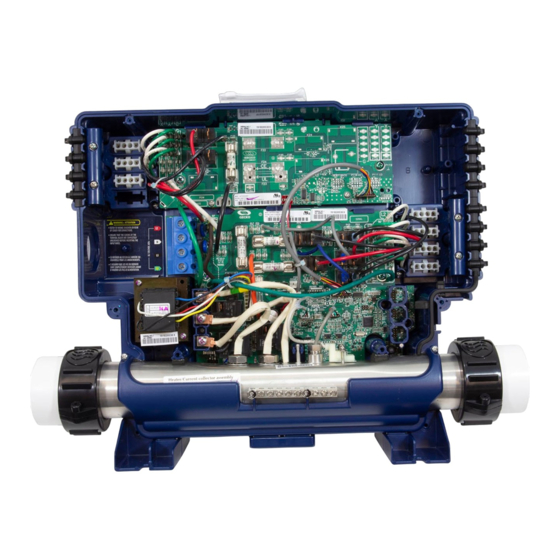

1- Connect all outputs & keypads
G C
AMP ports (A0 to A4,
and C1 to C3) for pumps
& accessories. Function
varies per configuration
(see next page).
Main power
entry connection
Heater
connections
Heater

2- Connect the main power

2.a- Electrical wiring

L2
N
L1
G
For 240 V (4 wires) For 240 V (4 wires)
Connect wiring of the electrical
service box GFCI. Neutral wire is
mandatory.
WARNING! All connections must be made by a qualified electrician in accordance with the national electrical code and any state, provincial or local electrical code in
effect at the time of the installation. This product must always be connected to circuit protected by a Ground Fault Circuit Interrupter (GFCI).

3- Select spa configuration (if prompt on startup)

1
At first startup the keypad display
will show Lx or LLx, where « x »
representing the config. number. Some
spa packs come with a pre-selected
config. and you may skip this step if
your system automatically starts up 1 .

4- Select breaker current

1
Press and hold the Program key
for 20 seconds until you access the
breaker setting menu.
Note: For the Color keypad series,
select Settings menu, go into Electri-
cal config and choose Input current.
Quick Start Card
in.yt-7 ™ North American version
L H
C1
C1
C2
C2
C3
C3
Bonding lugs
N
L1
G
For 120 V (*3 wires) For 120 V (*3 wires)
* If connected to a 3 wire system,
any 240 V components will not
work.
2
Use the Up/Down key to choose the
new low level configuration number.
2
The values displayed by the system
correspond to 80% of the maximum
amperage capacity of the GFCI.
For more information, see our
website: www.geckoalliance.com
A4
A3
A2
A1
Light outputs
(P34 always on, P35 relay controlled)
2.b- Heater & pump/accessories voltage
P9
P10
Heater voltage
Verify BROWN common wire
connection to tab:
P9 - 240 V (default)
P10 - 120 V
3
Press the Program 2 key to confirm
the selection.
For more information, see our
website: www.geckoalliance.com
GFCI b
60 A 48 A
50 A 40 A
40 A 32 A
30 A 24 A
20 A 16 A
15 A 12 A
(10 to 20 A dedicated to 120 V)
Optional
H L C G
floating connector
A0
(Part #9920-401346)
H L C G
A4
A3
A2
A1
C1 - Main keypad connector
CO - Communication links (2 ports)
in.touch, in.stik, Aux keypad in.k112,
Swim Spa com. cable, etc.
Pumps & accessories voltage
Verify each WHITE common wire
connection to tab:
N - 120 V (default)
L2 - 240 V pump/acc.
1 Note: To re-enter the low level
selection menu, hold the Pump 1
key for 30 seconds.
Note: For the Color keypad series,
select Settings menu, go into
Electrical config and choose the
appropriate Low level.
2 Note: If the keypad does not have
a Program or Filter key, use the
Light key instead.
3
Use the Up/Down key to select the
desired value. Then press the Program
key to confirm the selection.
Note: If the keypad does not have the
Program or Filter key, use the Light
key instead.
