Gecko SC-CF-SBD Quick Start Manual

K-19 (7'' • 3 1/4'')

Starting the pump:

Press Pump to turn pump on. Press a second time
to change pump speed. A third time turns pump off.
A built-in timer turns pump off after 20 minutes,
unless manually deactivated first.
The "Pump" indicator lights up when pump is on.

Turning the light on:

Press Light to turn light on. Press a second time to
turn light off. The light turns off after 2 hours, unless
it has been manually deactivated.
The "Light" indicator is displayed when light is on.

Automatic water heater start:

When water temperature is 1°F (0.5°C) lower than
Set Point, the heater will automatically turn on until
water temperature reaches Set Point plus 1°F (0.5°C).
The "Heater" indicator lights up when the heater is on.

Setting water temperature:

Use Up/Down arrow keys to regulate water
temperature. Press and hold key to increase or
decrease current water temperature setting. The
temperature setting is displayed for 5 seconds to
confirm your new selection.
The "Set Point" indicator shows the desired tem-
perature, NOT the current water temperature!
Water temperature can be adjusted by 1°
increments from 59 to 104°F (15 to 40°C).
3-85-7073-D
SC-CF-SBD
Single-PumpSystem
•

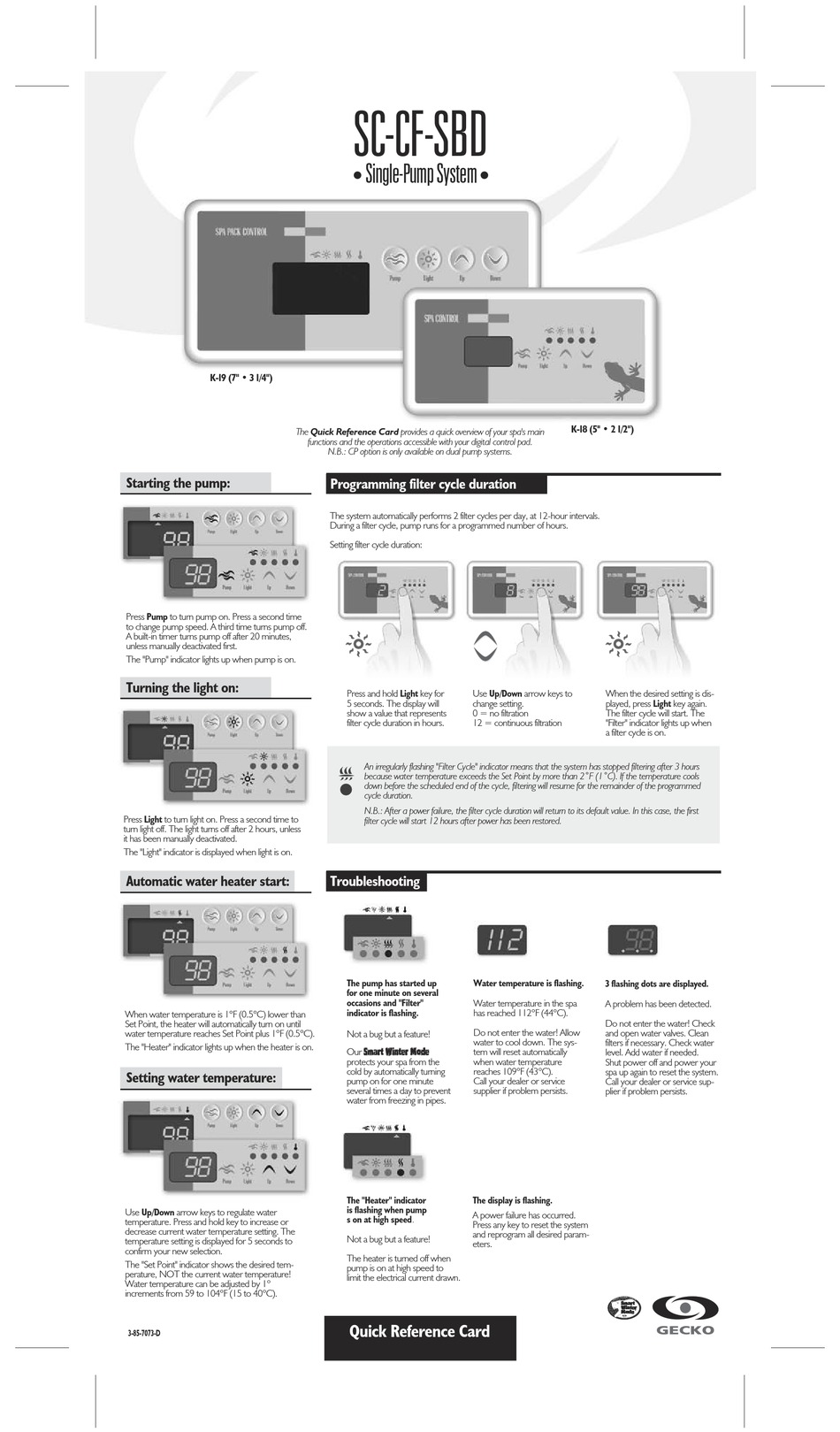

The Quick Reference Card provides a quick overview of your spa's main
functions and the operations accessible with your digital control pad.
N.B.: CP option is only available on dual pump systems.

Programming filter cycle duration

The system automatically performs 2 filter cycles per day, at 12-hour intervals.
During a filter cycle, pump runs for a programmed number of hours.
Setting filter cycle duration:
Press and hold Light key for
5 seconds. The display will
show a value that represents
filter cycle duration in hours.
An irregularly flashing "Filter Cycle" indicator means that the system has stopped filtering after 3 hours
because water temperature exceeds the Set Point by more than 2˚F (1˚C). If the temperature cools
down before the scheduled end of the cycle, filtering will resume for the remainder of the programmed
cycle duration.
N.B.: After a power failure, the filter cycle duration will return to its default value. In this case, the first
filter cycle will start 12 hours after power has been restored.

Troubleshooting

The pump has started up
for one minute on several
occasions and "Filter"
indicator is flashing.
Not a bug but a feature!
Smart Winter Mode
Our
protects your spa from the
cold by automatically turning
pump on for one minute
several times a day to prevent
water from freezing in pipes.
The "Heater" indicator
is flashing when pump
s on at high speed .
Not a bug but a feature!
The heater is turned off when
pump is on at high speed to
limit the electrical current drawn.
Quick Reference Card
•
K-18 (5'' • 2 1/2'')
Use Up/Down arrow keys to When the desired setting is dis-
change setting. played, press Light key again.
0 = no filtration The filter cycle will start. The
12 = continuous filtration "Filter" indicator lights up when
a filter cycle is on.
Water temperature is flashing.
3 flashing dots are displayed.
Water temperature in the spa A problem has been detected.
has reached 112°F (44°C).
Do not enter the water! Check
Do not enter the water! Allow and open water valves. Clean
water to cool down. The sys- filters if necessary. Check water
tem will reset automatically level. Add water if needed.
when water temperature Shut power off and power your
reaches 109°F (43°C). spa up again to reset the system.
Call your dealer or service Call your dealer or service sup-
supplier if problem persists. plier if problem persists.
The display is flashing.
A power failure has occurred.
Press any key to reset the system
and reprogram all desired param-
eters.
Smart
Winter
Mode
TM
