Note: To disconnect the
antenna, make sure you use the
Hirose U.FL connector removal
tool (P/N UFL-LP-N-2(01)) to
prevent damage to the module
or coaxial cable assembly.
Rev 1.12.6 Feb.10
In the event of a discrepancy in values between this guide and the Product Specification Document (PSD), the PSD takes precedence.
RF connection
When attaching an antenna to the module:
Use a Hirose U.FL connector (model
•
U.FL #CL331‐0471‐0‐10) to attach an antenna to a
connection point on the module, as shown in Figure 3‐1 (the
main RF connector on the top side; the diversity RF or GPS
connector on the bottom side).
Match coaxial connections between the module and the
•
antenna to 50
Minimize RF cable losses to the antenna; the recommended
•
maximum cable loss for antenna cabling is 0.5 dB.

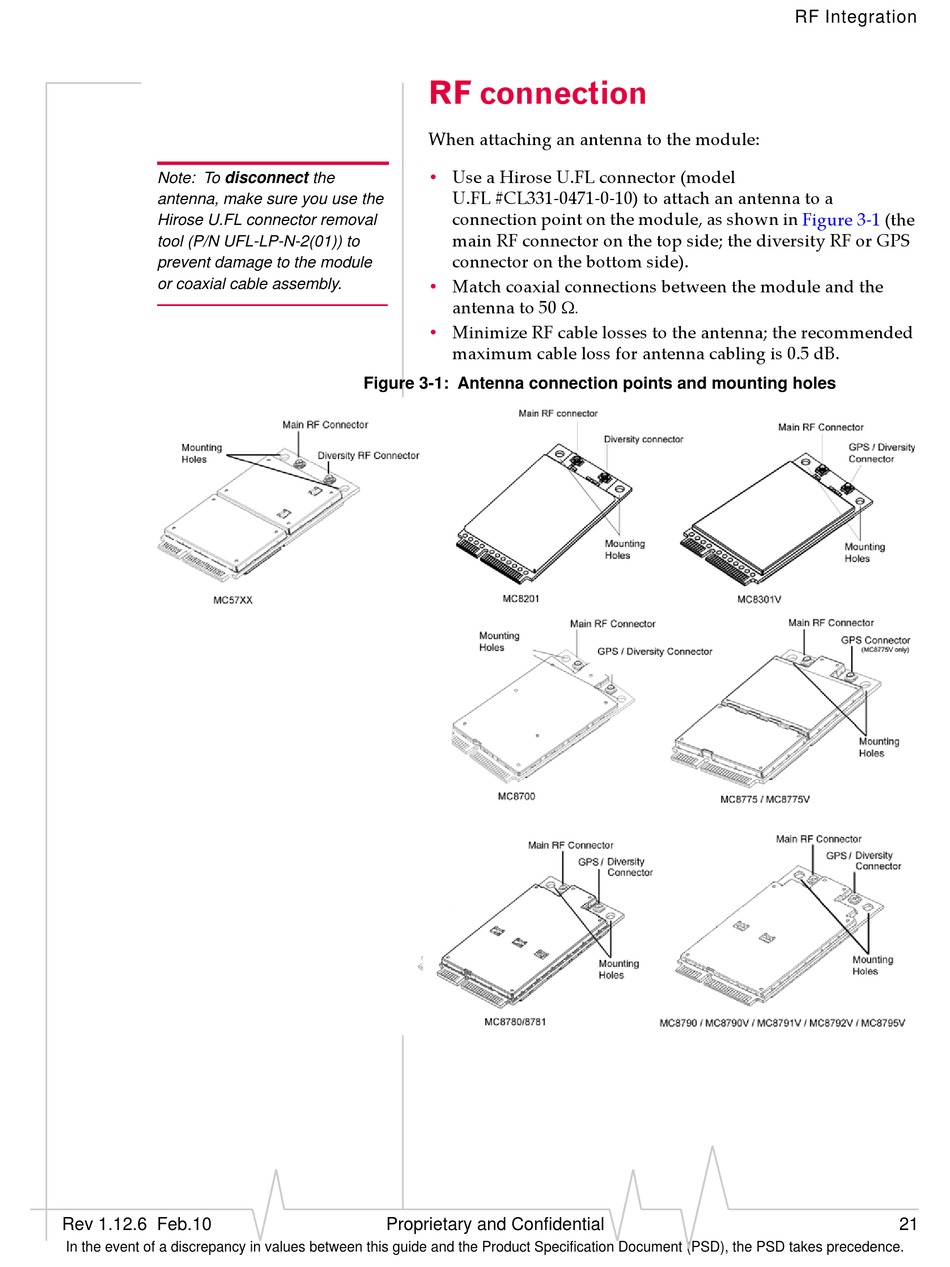

Figure 3-1: Antenna connection points and mounting holes
Proprietary and Confidential
RF Integration
21
