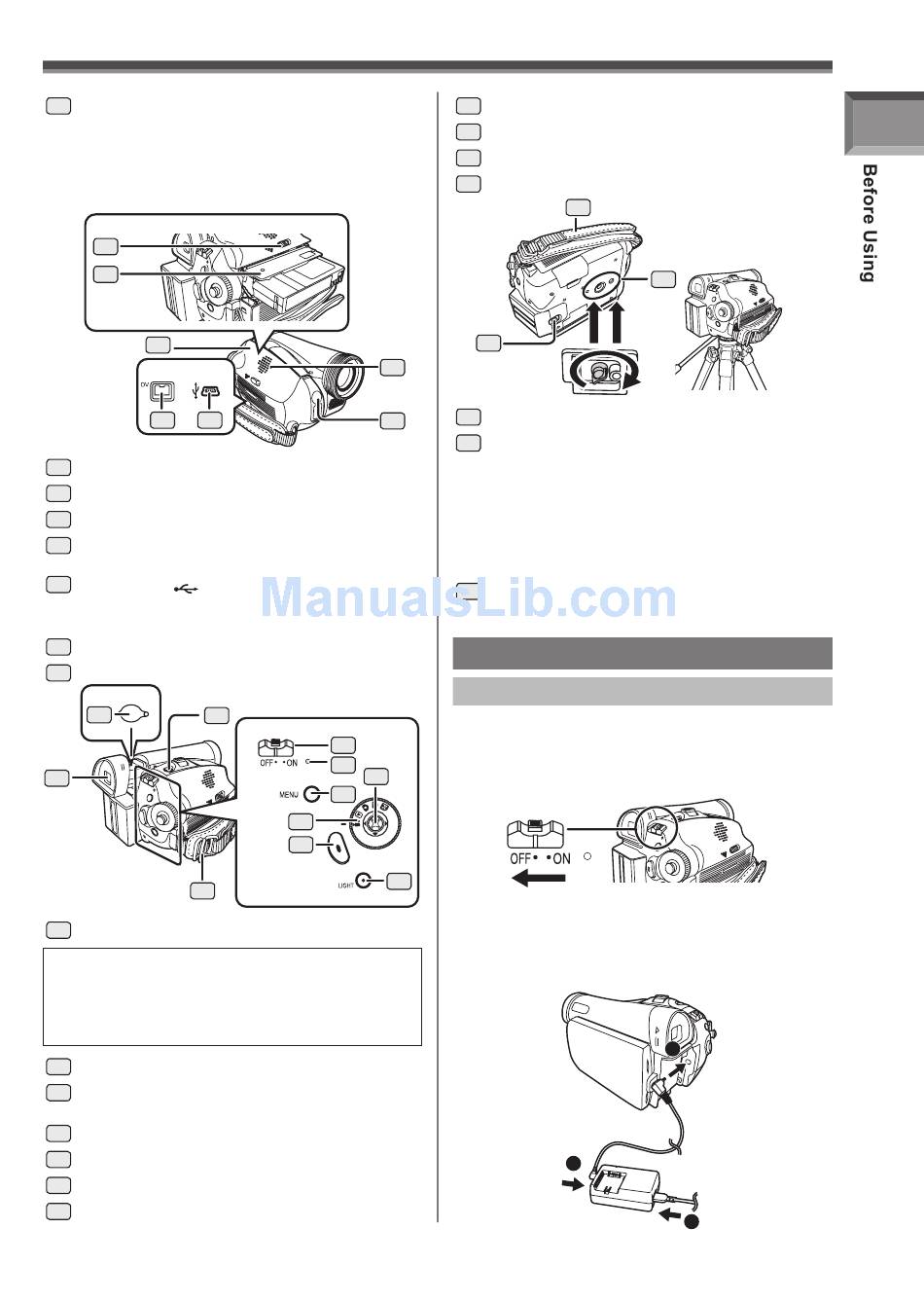

Audio-Video Output Jack [AV OUT]
15
(pp. 44, 45)
• Connecting an AV Cable to this jack activates
the Camcorder's built-in speaker.
• When connecting the pin plug of the AV
Cable to this jack, plug it in as far as it goes.
16
17
18
19 20
Cassette Eject Lever [OPEN/EJECT] (p. 14)
16
Cassette Holder (p. 14)
17
Cassette Compartment Cover (p. 14)
18
DV Input/Output Terminal (pp. 45~46, 53)
19
• Connect this to the digital video equipment.
20
USB Jack [ ] (pp. 48, 50)
• It is only compatible with USB 2.0 PCI Card
and/or connection.
Speaker (p. 39)
21
Built-in LED Light (p. 28)
22
24 25
23
26
Viewfinder (pp. 15~17, 61)
23
Due to limitations in LCD production technology,
there may be some tiny bright or dark spots on the
Viewfinder screen.
However, this is not a malfunction and does not
affect the recorded picture.
Eyepiece Corrector Knob (p. 17)
24
Photoshot Button [PHOTO SHOT]
25
(pp. 26, 27)
Shoulder Strap Holders (p. 13)
26
Power Switch [OFF/ON] (p. 15)
27
Status Indicator [STATUS] (pp. 15~16, 29)
28
Menu Button [MENU] (p. 20)
29
30
31
32
33
21
34
22
35
36

Power Supply

Using the AC Adaptor
• Before connecting or disconnecting the
power supply, set the [OFF/ON] Switch on
27
the Camcorder to [OFF] and make sure that
28
32
[STATUS] Indicator is not lit. (pp. 15~16)
29
30
31
33
1
2
3
Mode Dial (p. 18)
Recording Start/Stop Button (p. 25)
Joystick Control (pp. 18, 20)
Light Button [LIGHT] (p. 28)
34
36
Grip Belt (p. 13)
Tripod Receptacle
• This is a hole for attaching the Camcorder
to optional tripod. (Please carefully read the
Operating Instructions for how to attach the
tripod to the Camcorder.)
• You cannot open the Card Slot Cover when
the tripod is used. Insert the card first and
then attach the tripod.
Battery Eject Switch
[BATTERY RELEASE] (p. 12)
Connect the DC Cable to the Camcorder.
Connect the DC Cable to the AC Adaptor.
Connect the AC Cable to the AC Adaptor
and the AC Jack.
2
35
1
3
