Getting Started

ATN60A | AT110A

1. Carefully remove the scale, pan, and all components out of the

packaging. Place them on a stable surface where the scale will not be

compromised by any mechanical vibrations or high air movements.

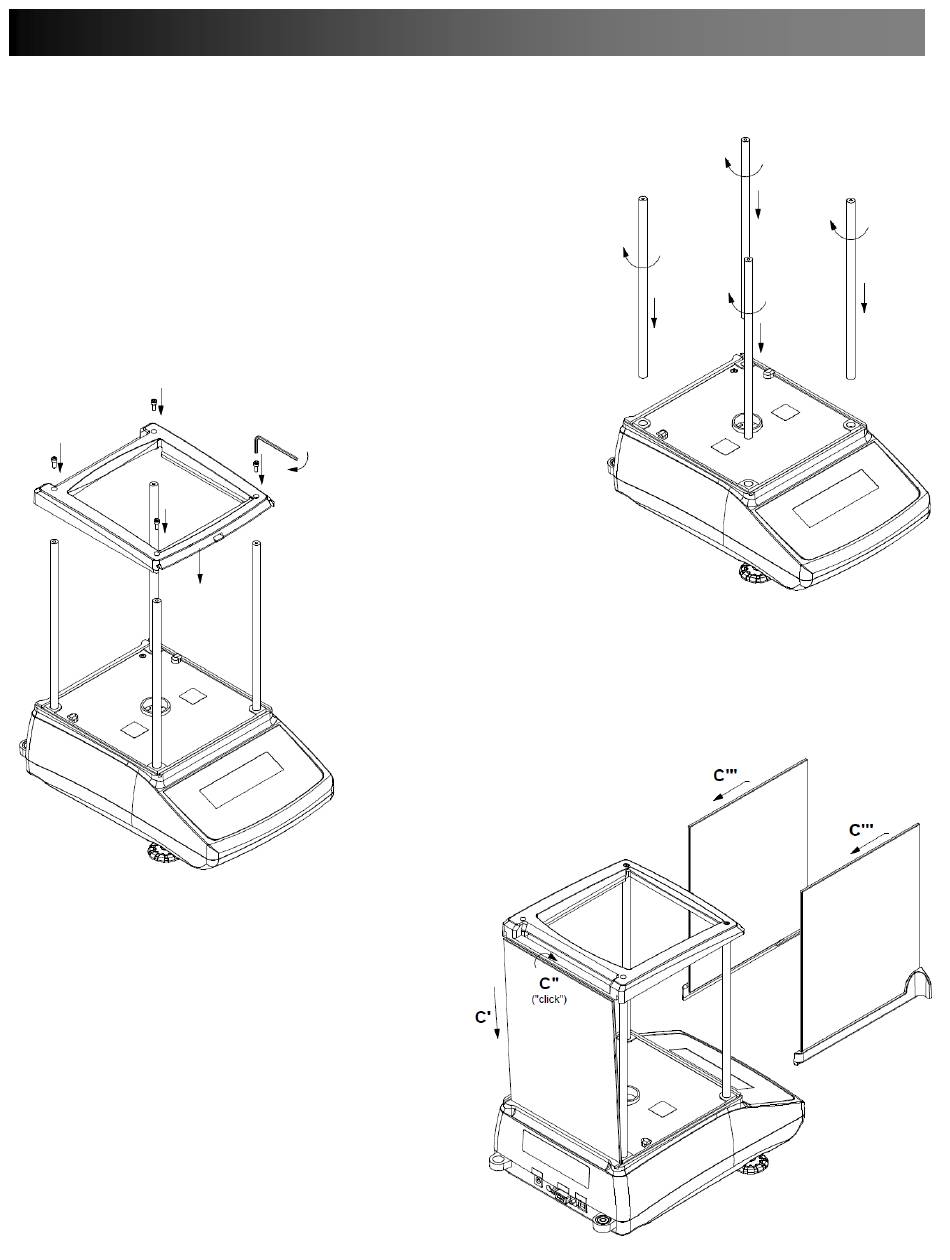

2. Firmly screw in the chamber posts into the screw hole

openings located in the corners of the scale's top housing.

4. Install the back-chamber glass by inserting the

bottom edge into the scale housing (C') and

securing the top edge in the chamber top

frame (C'').

5. Install the left and right chamber access door

by sliding it into the scale housing and the

chamber top frame (C''').

3. Place the chamber top frame on the

posts and firmly secure it in place by

screwing in the post crews with the

provided wrench.

Table of Contents

Need help?

Do you have a question about the ATN60A and is the answer not in the manual?

Page 1 Getting Started ATN60A | AT110A 1. Carefully remove the scale, pan, and all components out of the packaging. Place them on a stable surface where the scale will not be compromised by any mechanical vibrations or high air movements. 2. Firmly screw in the chamber posts into the screw hole openings located in the corners of the scale’s top housing.
Page 2 6. Install the front-chamber glass by inserting the bottom edge into the scale housing (D’) and securing the top edge in the chamber top frame (D’’). 7. Insert the top chamber glass access door by sliding in the rear edge of the glass onto the chamber top frame.
