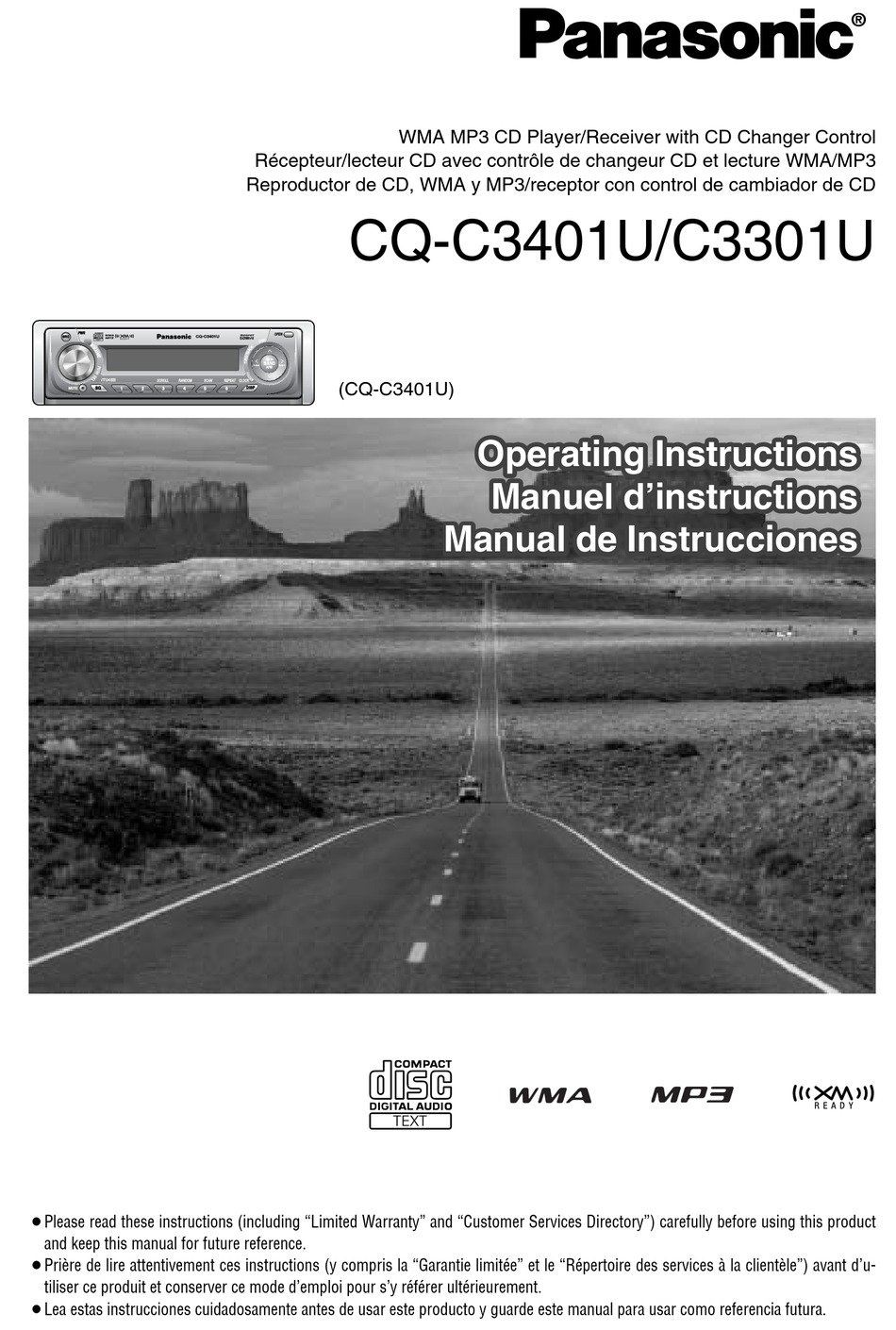

WMA MP3 CD Player/Receiver with CD Changer Control
Operating Instructions
Operating Instructions
Manuel d'instructions
Manuel d'instructions
Manual de Instrucciones
Manual de Instrucciones
TEXT
®
Advertisement
Table of Contents
Related Manuals for Panasonic CQ-C3401U
Summary of Contents for Panasonic CQ-C3401U
- Page 1 Récepteur/lecteur CD avec contrôle de changeur CD et lecture WMA/MP3 Reproductor de CD, WMA y MP3/receptor con control de cambiador de CD CQ-C3401U BAND SCROLL RANDOM SCAN REPEAT CLOCK DISP MUTE ¡Please read these instructions (including “Limited Warranty” and “Customer Services Directory”) carefully before using this product and keep this manual for future reference.
-
Page 2: Safety Information
They contain instructions about how to use the sys- tem in a safe and effective manner. Panasonic assumes no responsibility for any problems resulting from failure to observe the instructions given in this manual. - Page 3 Installation of this unit requires special skills and experience. For maximum safety, have it installed by your dealer. Panasonic is not liable for any problems resulting from your own installation of the unit. ❑ Follow the instructions to install and wire the prod- uct.
- Page 4 OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. CQ-C3401U/C3301U (continued) The following applies only in the U.S.A. Part 15 of the FCC Rules...
-
Page 5: Before Reading These Instructions
Differences between 2 Models ¡ This operating instruction manual is for 2 models CQ-C3401U and CQ-C3301U. All illustrations throughout this manual represent model CQ-C3401U unless otherwise specified. The following table describes the differences between 2 models. -
Page 6: Limited Warranty
5770 Ambler Drive, Mississauga Ontario L4W 2T3 PANASONIC PRODUCT LIMITED WARRANTY Panasonic Canada Inc. warrants this product to be free from defects in materi- als and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase. -
Page 7: Table Of Contents
CD Changer Control ... 22 ■ MP3/WMA Playback from CD-R/RW (MP3/WMA Player ■ CD Changer You can connect the optional Panasonic CD changer unit OPEN (CX-DP880). For details, refer to the operating instructions for the CD changer unit. ■ SQ (Sound Quality) -
Page 8: Accessories
¡ This instruction manual explains operations for use with the buttons on the main unit. (Different operations excluded) Power Source Band Pause Random Scan Repeat Track/folder/file/disc number input Folder/disc selection Function setting CQ-C3401U/C3301U Owners Lock Cancel Information Plate Card Qty.: 1 Qty.: 1 Mounting Removable Collar Face Plate Case... -
Page 9: Preparation
¡Improper use of a battery may cause overheating, an explosion or ignition, resulting in injury or a fire. Note: Back side ¡Battery Information: Battery Type: Panasonic lithium battery (CR2025) (Included in the remote control) Battery Life: Approximately 6 months under normal use (at room temperature) Main Unit Clock Setting The 12-hour system is used for the clock. -
Page 10: General
¡ If you turn the key to the ACC OFF position during the security function is active, the security message appears with a warning alarm. (Default: SLED ON) Page 26 about security function setting) CQ-C3401U/C3301U Page 8) Radio Mode Display Page 26) -
Page 11: Each Source
(FLAT) flat frequency response: does not emphasize any part. (Default) (ROCK) speedy and heavy sound: exaggerates bass and treble. (POP) wide-ranged and deep sound: slightly emphasizes bass and treble. (VOCAL) clear sound: emphasizes middle tone and slightly emphasizes treble. CQ-C3401U/C3301U... -
Page 12: Radio
Band Press [BAND]. Tuning [[]: Higher frequency []]: Lower frequency Press and hold [[] or []] for more than 0.5 seconds, then release it. Seeking will start. CQ-C3401U/C3301U (Stereo) indicator CQ-C3401U SCROLL RANDOM SCAN REPEAT CLOCK Preset Buttons [1] to [6]... -
Page 13: Station Preset
With this operation, a station can be manually stored in the preset memory. q Select a band and frequency. w Press and hold one of the preset buttons from [1] to [6] until the display blinks once. Preset Station Calling Previous page) Preset number CQ-C3401U/C3301U... -
Page 14: Xm Satellite Radio
0. (Refer to “Channel Selection” on this page.) ( RADIO ID display) w Activate the XM Satellite Radio. Select either of the below to sign up. ¡ Web site: http://www.xmradio.com/activation ¡ Phone number: 1-800-852-9696 CQ-C3401U/C3301U (Satellite) indicator CQ-C3401U SCROLL RANDOM SCAN... -
Page 15: Direct Channel Selection
Press [5] e Press [BAND] (SET). Note: ¡ The previous screen reappears if a nonexistent channel is selected. ¡“OFF AIR” is displayed and the previous screen reap- pears in a few seconds if an off-the-air channel is selected. CQ-C3401U/C3301U... -
Page 16: Before Disc Playback
¡ The power will be turned on automatically when a disc is loaded. ¡ A disc which has both CD-DA data and MP3/WMA data on it may not be reproduced normally. CQ-C3401U/C3301U Disc Insert indicator q Press [OPEN]. w Insert a disc. -
Page 17: Cd Player
[s]: Beginning of the current track For the previous track, press twice. Fast Forward/Fast Reverse Press and hold [d] (f): Fast forward [s] (a): Fast reverse Release them to resume normal playback. indicator CQ-C3401U BAND BAND SCROLL RANDOM SCAN REPEAT CLOCK DISP... -
Page 18: Mp3/Wma Player
File name/title and artist name* Clock time Note: ¡ “NO NAME” is displayed when there is no information on the disc. ¡ To have another circle scroll while a title is displayed, press [3] (SCROLL). CQ-C3401U/C3301U indicator indicator CQ-C3401U SCROLL RANDOM SCAN... -
Page 19: Random Play
Example: File number 10 q Press [#]. w Press [1] [0]. e Press [BAND] (SET). Note: ¡To suspend direct selection, press [DISP]. ¡Random, Folder Random, Scan, Folder Scan, Repeat and Folder Repeat plays are canceled once [#] is pressed. CQ-C3401U/C3301U... -
Page 20: Notes On Mp3/Wma
¡Never assign the “.mp3”, or “.wma” file name extension to a file that is not in the MP3/WMA format. This may not only pro- duce noise from the speaker damage, but also damage your hearing. CQ-C3401U/C3301U Display Information Audio) Displayed items ¡ CD-TEXT... - Page 21 No warranty Above description complies with our investigations as of December 2004. It has no warranty for reproducibility and displayability of MP3/WMA. CQ-C3401U/C3301U Sampling frequency 32, 44.1, 48 kHz 16, 22.05, 24 kHz 32, 44.1, 48 kHz Root Folder...
-
Page 22: Cd Changer Control
CD Changer Control MUTE [SRC: Source] ¡CD changer functions are designed for optional Panasonic CD changer unit. (CX-DP880) Preparation: ¡Connect the CD changer, and load a magazine (CDs). CD Changer Mode Press [SRC] to select the CD changer mode and playback starts. -
Page 23: Direct Disc Selection
Example: Disc number 5 q Press [#]. w Press [5]. e Press [BAND] (SET). Note: ¡To suspend direct selection, press [DISP] . ¡Random, Disc Random, Scan, Disc Scan, Repeat and Disc Repeat plays are canceled once [#] is pressed. CQ-C3401U/C3301U... -
Page 24: Audio Settings
Setting range: MUTE (– ∞), – 6 dB to + 6 dB (by 2 dB) Mute/Attenuation You can select mute or attenuation. Default: KEY MUTE CQ-C3401U/C3301U Turn [VOLUME]. (Press [VOL }] or [VOL {] on the remote control unit.) CQ-C3401U... - Page 25 Regular mode CQ-C3401U MUTE KEY SUB-W Note: ¡ To return to the regular mode, press [DISP]. ¡ If no operation takes place for more than 7 seconds in audio setting (2 seconds in the volume adjustment), the display returns to the regular mode.
-
Page 26: Function Settings
Allows you to activate the anti-theft function when leaving your car. Default: ON Level Meter Display Patterns Default: Pattern 1 Variety: 4 types, OFF CQ-C3401U/C3301U Turn [VOLUME]. (Press [8] ( ) on the remote control unit.) [0] ( CQ-C3401U SCROLL... - Page 27 ¡ The security message will be displayed. ¡ The face plate removal alarm will be activated. Page 28) When the face plate is removed... ¡ The security indicator (SLED) blinks. : Pattern 1 (Default) : Pattern 4 : Off CQ-C3401U/C3301U Page...
-
Page 28: Anti-Theft System
¡ If dirt or other foreign substances get on the contacts, wipe them off with a clean and dry cloth. ¡ To avoid damaging the face plate, do not push it down or place objects on it while it is open. CQ-C3401U/C3301U OPEN... -
Page 29: Fuse
Fuse If the fuse blows out, consult your dealer, or your nearest authorized Panasonic Servicenter. Warning ¡Use fuses of the same specified rating (15 A). Using substitutes or fuses with higher ratings, or connecting the unit directly without a fuse could cause fire or damage to the unit. If the replaced fuse fails, contact your nearest authorized Panasonic Servicenter. -
Page 30: Troubleshooting
Servicenter. The product should be serviced only by qualified per- sonnel. Please refer the checking and the repair to professionals. Panasonic shall not be liable for any accidents arising out of neglect of checking the unit or your own repair after your checking. - Page 31 The safety device works. aConsult your dealer, or your nearest Panasonic Servicenter. Possible cause Antenna installation or wiring of antenna cable is faulty. aCheck whether the antenna mounting position and its wiring are correct.
- Page 32 ■ Remote control unit Problem No response to press- ing buttons CQ-C3401U/C3301U (continued) Possible cause Something such as a peeled label obstructs the disc coming out. aConsult your dealer. The microcontroller in the unit operates abnormally due to noise or other factors.
-
Page 33: Error Display Messages
Eject the magazine. If the failure persists, press the reset switch on the CD changer. If normal operation is not restored, consult your dealer or the nearest Panasonic Servicenter to ask for repairs. No disc is in the CD Changer (magazine). - Page 34 Troubleshooting ■ XM Satellite Radio Option Display CQ-C3401U/C3301U (continued) Possible cause Cannot receive XM satellite radio. Verify the wiring. XM antenna unconnected. Connect the XM antenna. XM broadcasts unreceivable because of poor receiving conditions. Move to an area where XM broadcasts can be received well.
-
Page 35: Specifications
