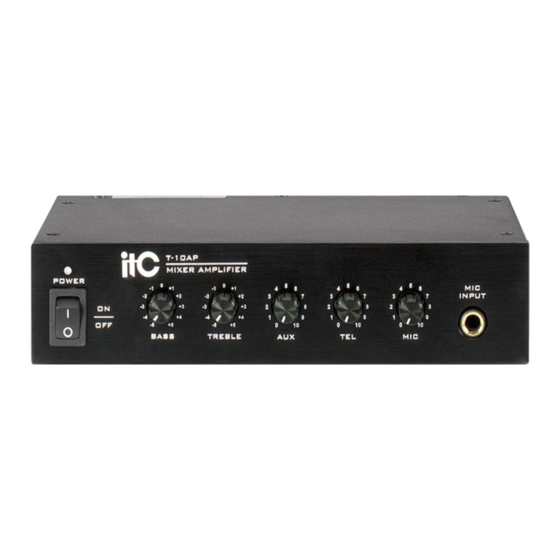

T-10AP
MIXER AMPLIFIER
POWER
0
-1
+1
-2
-3
ON
-4
OFF
-5
+5
BASS
Please follow the instructions in this manual to obtain the optimum results from this unit.
We also recommend that you keep this manual handy for future reference.
PUBLIC ADDRESS SYSTEM
0
5
-1
+1
6
4
+2
-2
+2
3
7
3
+3
-3
+3
2
8
2
+4
-4
+4
1
9
1
-5
+5
0
10
TREBLE
AUX
MIXER AMPLIFIER
5
5
6
6
4
4
MIC
7
3
7
INPUT
8
2
8
9
1
9
0
10
0
10
TEL
MIC
T-10AP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-10AP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ITC T-10AP

Summary of Contents for ITC T-10AP

  • Page 1 PUBLIC ADDRESS SYSTEM T-10AP MIXER AMPLIFIER T-10AP MIXER AMPLIFIER POWER INPUT BASS TREBLE Please follow the instructions in this manual to obtain the optimum results from this unit. We also recommend that you keep this manual handy for future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. SAFETY PRECAUTIONS ..................3 2. GENERAL DESCRIPTION ..................5 3. NOMENCLATURE AND FUNCTIONS 1 Front Panel ......................6 3.2 Rear Panel......................6 4. CONNECTIONS Speaker Connections ....................7 MACHINE OPERATION ..................8 . APPLICATIONS ....................... 9 7. BLOCK DIAGRAM ....................

  • Page 3: Safety Precautions

    1. SAFETY PRECAUTIONS Be sure to read the instructions in this section carefully before use. Make sure to observe the instructions in this manual as the conventions of safety symbols and messages regarded as very important precautions are included. We also recommend you keep this instruction manual handy for future reference. Safety Symbol and Message Conventions Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result from mishandling.
  • Page 4 SAFETY PRECAUTIONS When the Unit is in Use When Installing the Unit Do not place heavy objects on the unit as this may Never plug in nor remove the power supply plug cause it to fall or break which may result in with wet hands, as doing so may cause electric personal injury and/or property...

  • Page 5: General Description

    2. GENERAL DESCRIPTION 1. 1 channel MIC one-port input (5mv 1Kohms) and 1 channel (300mv 10Kohms) AUX input. 2. 1 channel TEL input (sensitivity: 1V 2Kohms). 3. built-in treble bass adjusting bass: 10dB at 100Hz treble: 10dB at 10KHz). 4. built-in priority functions, including priority level as follow:Tel override Aux and MIC, MIC is second priority,override AUX signal except tel signal.

  • Page 6: Nomenclature And Functions

    3. NOMENCLATURE AND FUNCTIONS 3.1 FRONT PANEL POWER INPUT BASS TREBLE 5. AUX 1. POWER Power indicator AUX volume control 2. POWER SWITCH 6. TEL TEL volume control On top of the opening Power Press the end, power shut down 7.

  • Page 7: Connections

    4. CONNECTIONS SPEAKER CONNECTIONS 70V 100V 70V 100V 70V 100V COM 4-16 COM 4-16 COM 4-16 (T-10AP) 1000 (T-10AP) 100V LINE 4-16 70V LINE 70V/...

  • Page 8: Machine Operation

    5. MACHINE OPERATION OPERATION ATTENTION MUTE FUNCTION The four output connectors only can choose two 1 Tel has priority over all inputs. connectors work together. If voltage is 70V/100V, 2 MIC is second priority, adjust mute electric the speakers must be with transformer and make potential can override other input signal except sure the total power wattage of speaker is 15% tel signal.

  • Page 9: Applications

    6. APPLICATIONS...

  • Page 10: Block Diagram

    7. BLOCK DIAGRAM...

  • Page 11: Specifications

    8. SPECIFICATIONS MIXER AMPLIFIER WITH CD T-10AP Model Speaker Line Input 4~16 ,70V,100V Amplifier Section(amp In @ 1khz,8ohm Load Output) Rated maximum output power (THD 1%) Input sensitivity/impedance 1V/20Kohms Frequency response(At 1KHz Half power output) 80Hz~16KHz(+1dB/-3dB) MIC input section( MIC in@1Khz, preamp out)

  • Page 12: Dimensional Diagram

    9. DIMENSIONAL DIAGRAM UNIT :mm POWER INPUT BASS TREBLE OUTPUT COM 4-16 70V 100V DC 12V TEL INPUT UNIT :mm POWER INPUT BASS TREBLE Over Over...
  • Page 13 PUBLIC ADDRESS SYSTEM VersionV0.3...
