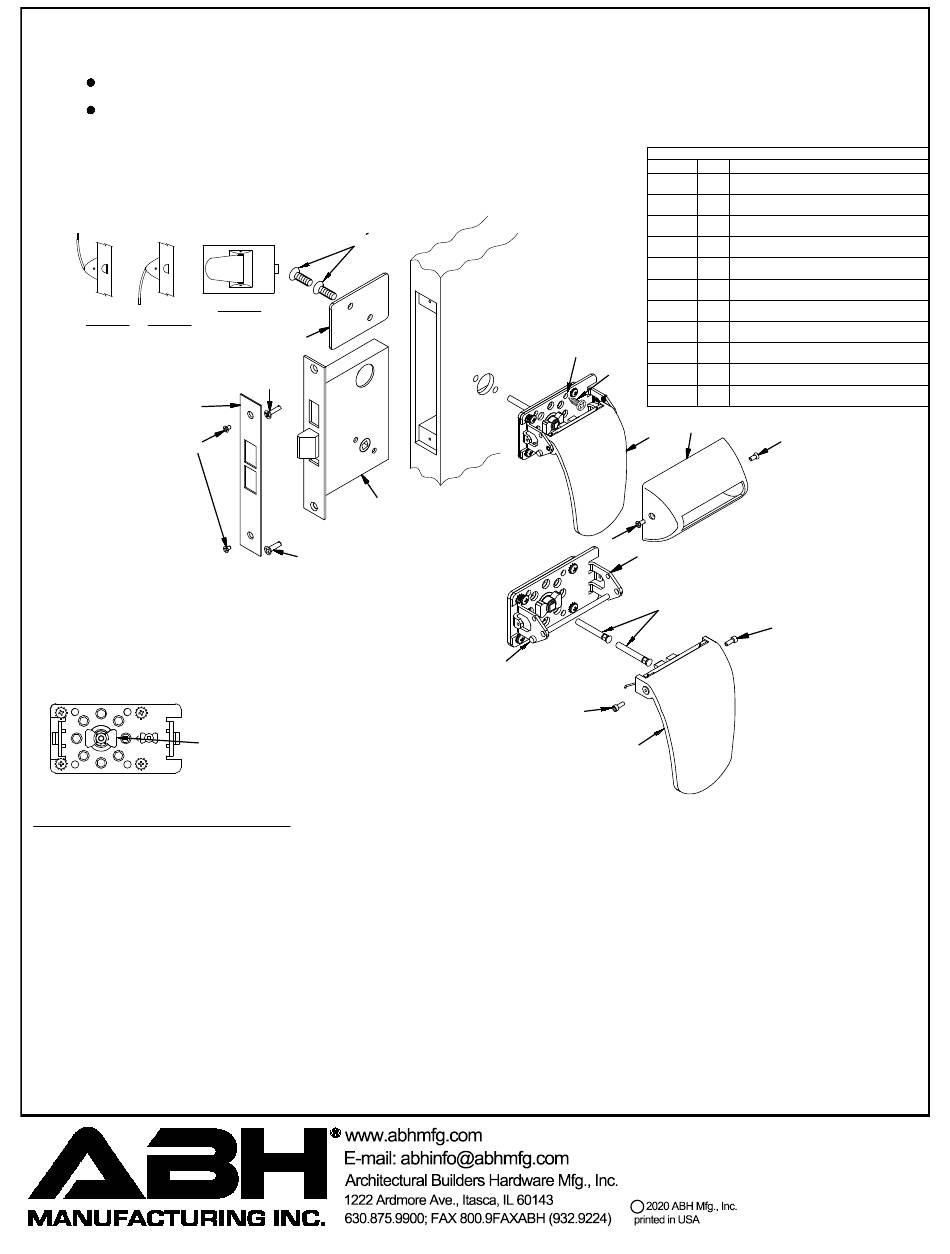

ABH LR6600 PS Installation Manual

"PS" OPTION - LR6600 TRIM ON PUSH SIDE & EXIT ONLY PLATE ON PULL SIDE
"PL" OPTION - LR6600 TRIM ON PULL SIDE & EXIT ONLY PLATE ON PUSH SIDE
NOTES
1. TRIM CAN BE MOUNTED UP, DOWN OR HORIZONTALLY.
2. USE ABH MORTISE LOCK DOOR PREP TEMPLATE.
3. MORTISE LOCK CYLINDER NOT PROVIDED.
* *
HORIZONTAL
HANDLE HANDLE
(MUST POINT
UP DOWN
HINGE SIDE)
8
10
NOTE:
BEFORE MOUNTING BASE ASSEMBLY,
CAM MUST BE ROTATED AS PER
DRAWING SHOWN IN DETAIL "A".
DETAIL "A"
INSTALLATION INSTRUCTIONS:
1. Install mortise lock body (item 1) using (2) 12-24 combo screws (item 9). Mount mortise lock face plate (item 8) using
(2) 8-32 FHMS (item 10).
2. Determine if handle & base assembly (item 4) is to be mounted vertical or horizontal. Place handle assembly on
appropriate side of door and rotate cam as per detail "A", shown above. In detail "B", insert (2) 10-32 sex bolt (item 11)
that match the holes on the door face through the handle & base assembly (item 4) and mortise lock body (item 1) into
the exit only plate and attach with (2) 10-32 screw (item 7).
3. Test lock for proper operation. If latch bolt does not extend or retract freely because of any type of binding, loosen
mounting screws to adjust alignment of trim handle & base assembly (item 4) and re-tighten screws one at a time while
checking latch bolt movement.
4. To prevent the handle & base assembly (item 4) from possible twisting, which in turn can cause binding, determine
which staking screw hole will be used. (the staking screw installs on the staking screw hole location opposite the
direction the handle is mounted). Install (1) #12 PHSMS staking screw (item 6).
5. Place cover (item 2) over handle and fasten each side with (2) 8-32 oval head screws (item 5).
LR6600 - EXIT ONLY OPTION
INSTALLATION FOR MORTISE LOCK TRIM
7 (10-32 X 1/2" FHMS)
HANDLE
3
9
1
9
* *
STAKING
SCREW HOLE
(SEE DETAIL "B"
FOR EXPLODED
VIEW)
STOP PIN
6-32 X 3/8" SHCS
HANDLE ASSEMBLY
DETAIL "B"
PARTS LIST
ITEM QTY
1 1
MORTISE LOCK BODY
2 1 COVER
3 1 EXIT ONLY PLATE ASSEMBLY
4 1 HANDLE & BASE ASSEMBLY
5 2 8-32 X 3/8" OVAL HEAD MS
#12 X 1/2" PHSMS STAKING SCREW
6 1
7 2 10-32 X 1/2" FHMS
8 1 FACE-PLATE, MORTISE LOCK
9 2 12-24 X 3/4" FH COMBO SCREW
6
10 2
8-32 X 1/4" FHMS
11 2 10-32 X 1-1/2" SEX BOLT
2
4
5
BASE ASSEMBLY
11
6-32 X 3/8" SHCS
PATENT PENDING
LR6600 - EXIT ONLY PS OR PL OPTION-1-02.DWG
LR6600 - EXIT ONLY
"PS" or "PL" OPTION
c 2 0 2 0 A B H M f g . ,
ISSUED 06-23-20
DESCRIPTION
5
PAGE 1 OF 3
