ABH LR6000 Series Installation Instructions

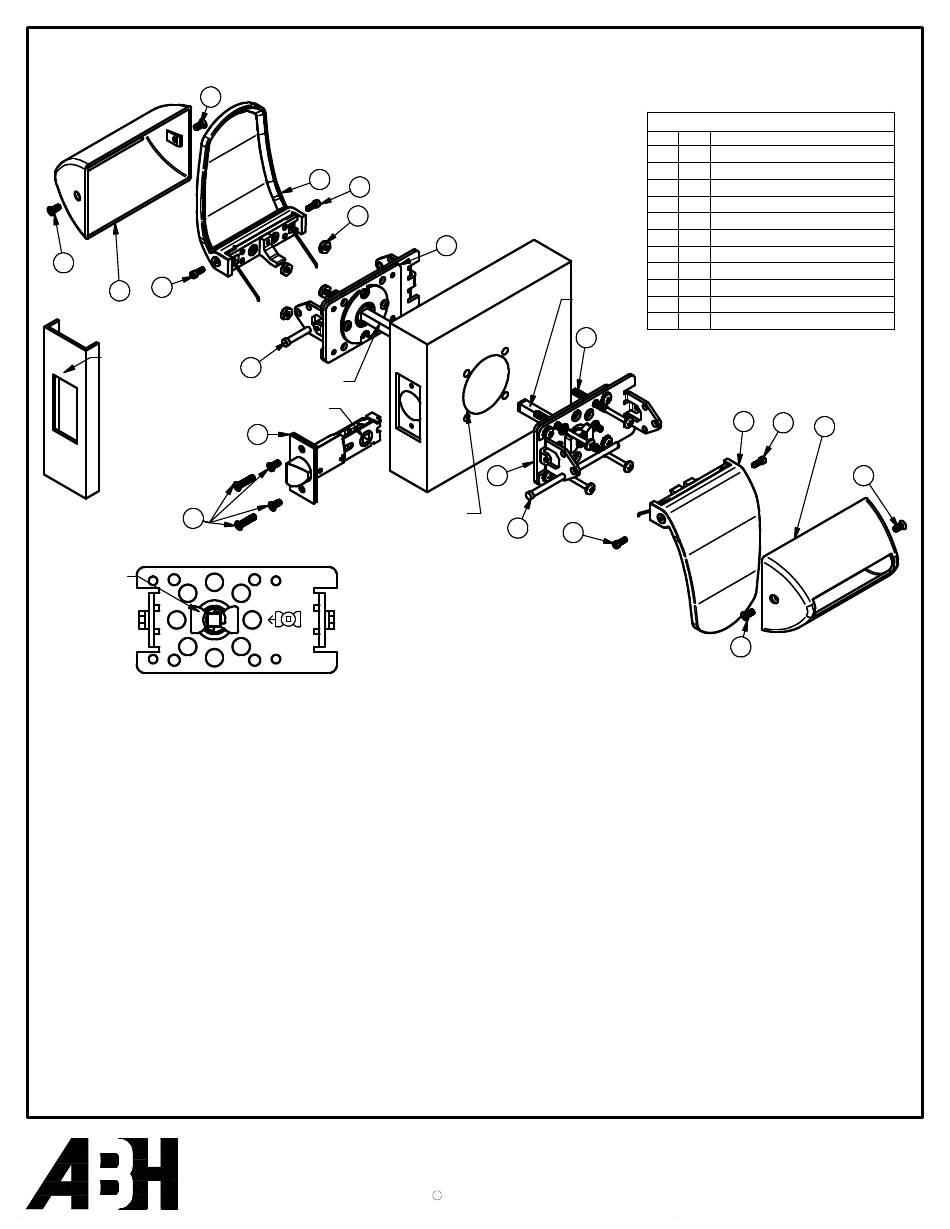

INSTALLATION FOR CYLINDRICAL LATCH
11
11
8
10
EDGE GUARD NOTE:
WHEN PREPPING THE DOOR
FOR THE BACKSET,
DETERMINE IF THE DOOR
WILL RECEIVE AN EDGE
GUARD. IF SO, THE EDGE
GUARD SHOULD BE
INSTALLED FIRST AND
THEN THE PREP FOR THE
LATCH BACKSET SHOULD
BE MEASURED FROM THE
OUTSIDE EDGE OF THE
EDGE GUARD.
2
DETAIL "A"
NOTE:
BEFORE MOUNTING
BASE ASSEMBLIES,
CAMS MUST BE
ROTATED AS PER
DRAWING SHOWN
ON RIGHT, IN
DETAIL "A".
INSTALLATION INSTRUCTIONS
1. Prep door according to LR6000 Series latch template.
2. Install latch using either #8 wood screws or 8-32 machine screws (Item 2).
3. Check (1) base assembly (Item 3) to ensure the cam is the position shown in Detail "A" (see above).
Place the base assembly on push side of door by inserting the cam shaft into the latch cam as
detailed above.
4. Check the other base assembly (Item 3) and ensure the cam is the position shown in Detail "A" (see
above). Place base assembly on pull side of door by engaging the shaft into the latch cam as
detailed above. Fasten both base assemblies together with (4) 10-32 screws (Item 4) and (4) 10-32
hex nuts (Item 5). Test that cams rotates freely on both sides of the door after tightening the
screws.
5. Install the push handle assembly (Item 7) to the base assembly installed on push side of door using
(2) socket head cap screws (Item 8). Insert (1) stop pin (Item 9) through the push base assembly on
the same side of the direction the push handle assembly is pointing. Test push handle for proper
operation to be sure stop pin was installed in appropriate base assembly hole.
6. Repeat above Step #5 on the pull side of the door for the pull handle assembly (Item 6). Insert (1)
stop pin (Item 9) through the pull base assembly on the opposite side of the direction the pull
handle assembly is pointing. Test pull handle for proper operation to be sure stop pin was
installed in appropriate base assembly hole.
7. Place covers (Item 10) over handles and fasten each cover with (2) 8-32 screws (Item 11).
O www.abhmfg.com
R
E-mail: abhinfo@abhmfg.com
Architectural Builders Hardware Mfg., Inc.
1222 Ardmore Ave., Itasca, IL 60143
630.875.9900; FAX 800.9FAXABH (932.9224)
LR6000 SERIES
NOTES:
1. TRIM CAN BE MOUNTED UP or DOWN
2. USES STANDARD 161 DOOR PREP.
3. VISION LITE MUST BE AT LEAST 6" FROM LATCH PREP.
4. MAKE (4) THROUGH HOLES IN DOOR AS PER TEMPLATE
6
8
5
9
CAM SHAFT
LATCH CAM
1
ALL PREP MOUNTING HOLES
TO BE STRAIGHT & PARALLEL
TO ONE ANOTHER. THIS WILL
HELP PREVENT ANY BINDING
OF MECHANICAL PARTS.
3
CAM
SHAFT
4
3
9
8
c 2014 ABH Mfg., Inc.
printed in USA
PARTS LIST
ITEM
QTY DESCRIPTION
1 1 LATCH
2 2 #8 X 3/4" FHWS OR 8-32 X 3/8 FHMS UC
3 2 BASE ASSEMBLY
4 4 10-32 X 2-1/2 PHMS
5 4 10-32 HEX NUT
6 1 HANDLE ASSEMBLY, PULL
7 1 HANDLE ASSEMBLY, PUSH
8 4 6-32 X 3/8" SHCS
9 2 STOP PIN
10 2 COVER
11 4 8-32 X 3/8" OVAL HEAD M.S.
7
8
10
11
ISSUED 06-30-14
11
69800-02.IDW
LR6000
