CANADA
UNITED STATES
With your inspiring rating, COSTWAY will be more consistent to offer you EASY
SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE!
Mit Ihrer inspirierenden Bewertung wird COSTWAY konsistenter sein, um Ihnen
EIN SCHÖNES EINKAUFSERLEBNIS, GUTE PRODUKTE und EFFIZIENTEN
SERVICE zu bieten!
Avec votre évaluation inspirante, COSTWAY continuera à fournir une
EXPÉRIENCE D'ACHAT PRATIQUE, des PRODUITS DE QUALITÉ et un
SERVICE EFFICACE !
Con su calificación inspiradora, COSTWAY será más consistente para ofrecerle
EXPERIENCIA DE COMPRA FÁCIL, BUENOS PRODUCTOS y SERVICIO
EFICIENTE.
Con la tua valutazione incoraggiante, COSTWAY sarà più coerente per offrirti
ESPERIENZA DI ACQUISTO FACILE, BUONI PRODOTTI e SERVIZIO
EFFICIENTE!
Dzięki twojej opinii COSTWAY będzie mógł oferować jeszcze WYGODNIEJSZE
ZAKUPY, LEPSZE PRODUKTY i SPRAWNIEJSZĄ OBSŁUGĘ KLIENTA.
US office: Fontana
UK office: Ipswich
DE office: FDS GmbH, Neuer Höltigbaum 36, 22143 Hamburg, Deutschland
FR office : 26 RUE DU VERTUQUET, 59960 NEUVILLE EN FERRAIN, FRANCE
UNITED KINGDOM
GERMANY
FRANCE
ITALY
SPAIN
RUSSIA
JAPAN
AUSTRALIA
Advertisement
Related Manuals for Costway NP10163
Summary of Contents for Costway NP10163
- Page 1 JAPAN SPAIN AUSTRALIA With your inspiring rating, COSTWAY will be more consistent to offer you EASY SHOPPING EXPERIENCE, GOOD PRODUCTS and EFFICIENT SERVICE! Mit Ihrer inspirierenden Bewertung wird COSTWAY konsistenter sein, um Ihnen EIN SCHÖNES EINKAUFSERLEBNIS, GUTE PRODUKTE und EFFIZIENTEN SERVICE zu bieten! Avec votre évaluation inspirante, COSTWAY continuera à...

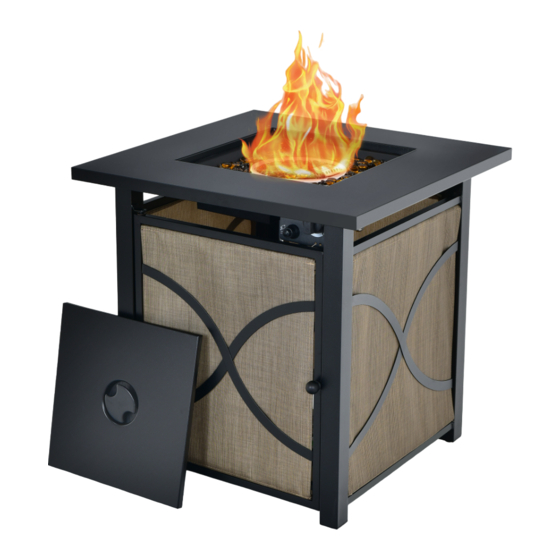

- Page 2 NOT use any phone in your building. • Immediately call your gas supplier FIRE TABLE from a neighbor's phone. • Follow the gas supplier's instructions. NP10163 • If you cannot reach your gas supplier, call the fire department. FHTS80021P Installation and service must be performed by a qualified installer, service agency or gas supplier.
-
Page 3: Table Of Contents
Table of Contents Package Contents Important Safety Information Propane (LP) Dangers And Warnings Caution Hose & Regulator Assembly and replacement Assembly Instructions Operating Instructions Cleaning and Care This appliance complies with "ANSI Z21.97-2017-/CSA2.41 -2017, Outdoor Decorative Gas Appliances." California Proposition 65: This product can expose you to carbon monoxide, which is a combustion by product known to the State of California to cause cancer birth defects or other reproductive harm. -
Page 4: Package Contents
PACKAGE CONTENTS... - Page 5 a pictorial diagram in at least two views or a single exploded view depicting proper positioning of field assembled parts. The following statement must be included with the pictorial diagrams: “WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.”...
-
Page 10: Important Safety Information
IMPORTANT SAFETY INFORMATION WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners and circulating air passageways of the appliance are kept clean. - Page 11 Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing ignition. This outdoor fire table is not to be operated by children. Young children should be carefully supervised when they are in the area of the appliance. Clothing or other flammable materials should not be hung from the appliance or placed on or near the appliance.
- Page 12 ▪ DO NOT use this outdoor fire table until it is COMPLETELY assembled and all parts are securely fastened and tightened. ▪ DO NOT store another LP gas tank within 10 feet (3.05 m) of this outdoor fire table while it is in operation. ▪...
-
Page 13: Propane (Lp) Dangers And Warnings
▪ DO NOT throw anything onto the fire when the unit is in operation. ▪ Glass Beads are very hot; please keep children or pets at a safe distance. ▪ It is essential to keep the outdoor fire table valve compartment, burners, and circulating air passages clean. - Page 14 • Contact with propane could burn your skin. • Propane is extremely flammable and hazardous if handled improperly. LP GAS WARNINGS: • Cylinders must be stored outdoors in a well-ventilated area out of reach of children. • Disconnected cylinders must have threaded valve plugs tightly installed and must not be stored in a building, garage or any other enclosed area.
- Page 15 • Do not store the LP gas cylinder in direct sun light or near a source of heat or combustion. • Never keep a filled LP gas tank in a hot car or car trunk. Heat will cause the gas pressure to increase, which may open the relief valve and allow gas to escape.
-
Page 16: Caution
by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psi (3.5 kPa); CAUTION CAUTION: After lighting - using a fireplace tool and heat-resistant gloves, carefully move the Glass Beads back to their proper position, being careful to avoid the flame. -
Page 17: Hose & Regulator Assembly And Replacement
PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time: 60 minutes HOSE &... - Page 18 2. Be sure to protect the hose from any hot surfaces. Serious danger may result if the hose contacts any hot surface. 3. Regular maintenance of the hose and regulator: a. Inspect the hose before each use of the fire table. If the hose shows signs of cracks, abrasions, cuts or damage of any kind, do not operate the appliance.
- Page 19 4. IMPORTANT: Do not exceed a height of 1 inch above the burner when placing Glass Beads media. Ensure no media covers the igniter screen. Store any excess media in a safe location. 5. Keep away from the unit for the first 20 minutes after igniting your unit for the first time, as lava rocks/pumice stones /glass shards/glass beads could pop out and cause injury.
-
Page 20: Assembly Instructions
ASSEMBLY INSTRUCTIONS... -
Page 24: Operating Instructions
OPERATING INSTRUCTIONS Installing LP Gas Tank To operate, you will need one precision -filled standard grill LP gas tank with external valve threads. CAUTION: LP gas tank must be properly disconnected and removed prior to moving this outdoor fireplace. Inserting LP Gas Tank WARNING: Make sure LP gas tank valve is closed. - Page 25 Connecting LP Gas Tank 1． Before connecting be sure there is no debris caught in the head of the LP gas tank head of the regulator valve or in the head of the burner or burner ports. 2． Connect regulator/hose assembly to tank by turning knob clockwise until it stops.
- Page 26 Disconnecting LP Gas Tank 1. Make sure the regulator hose and valve connections are securely fastened to the burner and the tank. 2. Visually check the connection between the burner/venturi tube and orifice. 3. Make sure the burner/venturi tube fits over the orifice.
- Page 27 Disconnecting LP Gas Tank 5. Close the firepit door pan el (Figure 5). 6. Turn LP gas tank valve to “OPEN”. 7. Spoon several drops of solution or use a squirt bottle, at all “X” locations (Figures 1 and 2). a.
- Page 28 OPERATING INSTRUCTIONS Nests. A clogged tube can lead to a fire. 1. Make sure all labels, packaging and protective films have been removed from the outdoor fireplace. 2. Check for obstructions of airflow to the burner. Spiders, insects and webs can clog the burner/venturi tube.
-
Page 29: Cleaning And Care
Turning Off 1. Turn LP gas tank valve to “CLOSED". 2. Turn control knob to the " OFF" position. Note: A "poof sound is normal as the last of the LP gas is burned. 3. Disconnect LP gas tank per ''Disconnecting LP Gas Tank" section. OPERATING INSTRUCTIONS (CONTINUED) CLEANING AND CARE CAUTION:... - Page 30 4. Visually check the burner flames to make sure your outdoor fire table is working properly (Figure 7). 5. See below for proper cleaning instructions. 6. Check all gas connections for leaks. 7. Check components for any signs of damage or rust. 8.
