WARNING
FOR YOUR SAFETY:
For Outdoor Use Only (outside,
non-enclosed area Do Not Use For Cooking.
Installation and service must be
performed by a qualified installer,
service agency, or the gas supplier.
WARNING
FOR YOUR SAFETY:
If the information in this manual is not
followed exactly, a fire or explosion
may result causing property damage,
personal injury or loss of life.
WHAT TO DO IF YOU SMELL GAS:
• Do NOT try lighting any appliance.
• Do NOT touch any electrical switch;
do NOT use any phone in your building.
• Immediately call your gas supplier
from a neighbor's phone.
• Follow the gas supplier's instructions.
• If you cannot reach your gas
supplier, call the fire department.
Installation and service must be
performed by a qualified installer,
service agency or gas supplier.
If you are assembling this unit for
someone else, give this manual to
him or her to read and save for
future reference.
WARNING
FOR YOUR SAFETY:
Improper installation, adjustment,
alteration, service or maintenance
can cause injury or property damage.
Read the installation, operation and
maintenance instructions thoroughly
before installing or servicing this
equipment.
DANGER
FIRE OR EXPLOSION HAZARD
If you smell gas:
1.Shut off gas to appliance.
2.Extinguish any open flame.
3.If odor continues, leave the area
immediately.
4.After leaving the area, call your gas
supplier or fire department.
Failure to follow these instructions
could result in fire or explosion, which
could cause property damage,
personal injury, or death.
WARNING
FOR YOUR SAFETY:
1. Do not store or use gasoline , or other flammable
vapors and liquids, in the vicinity of this or any other
appliance.
2. An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
DANGER
Do NOT leave this appliance unattended while it is in
operation.
DANGER

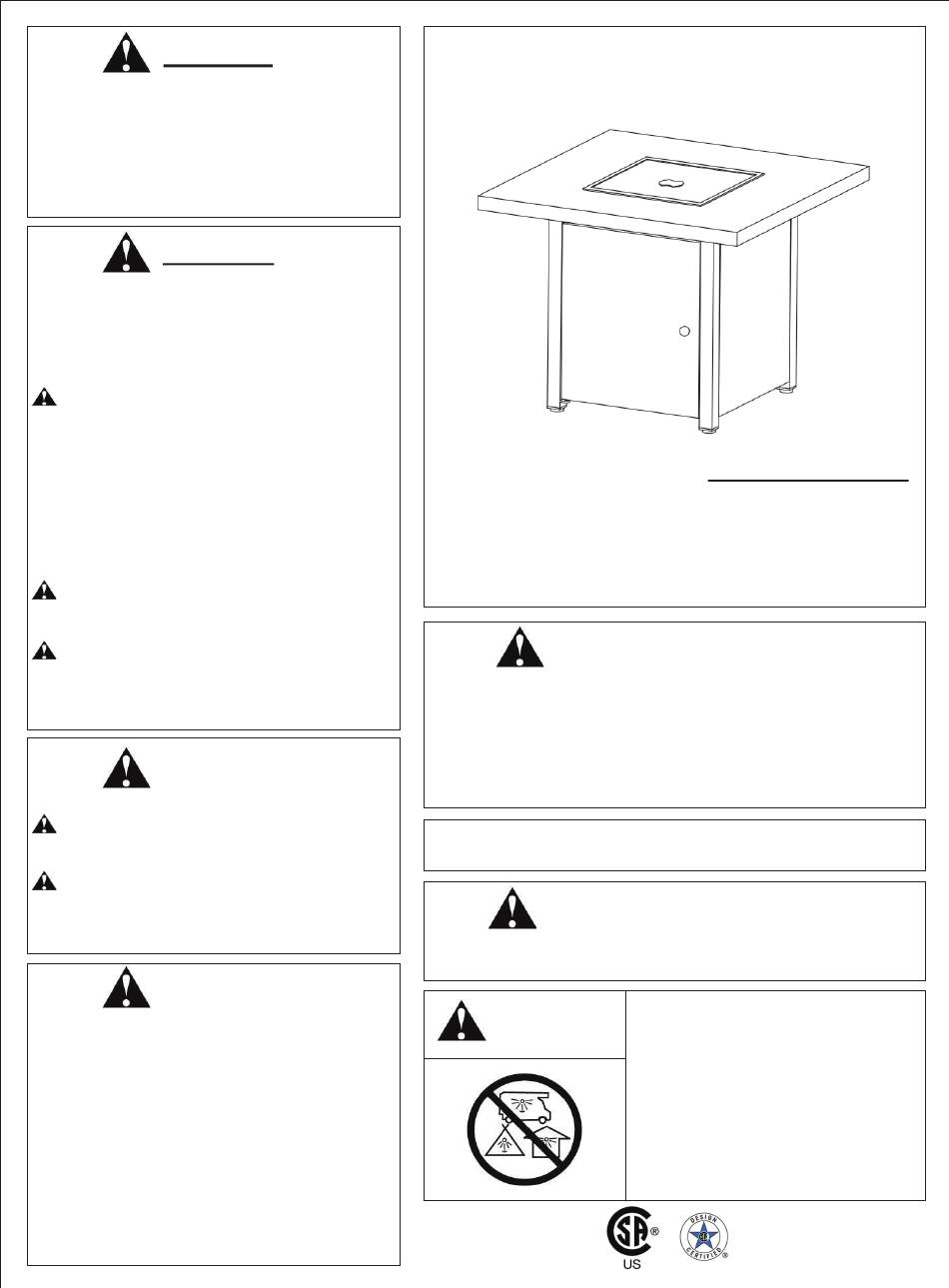

USER'S MANUAL
FIRE TABLE
NP10164
FHTS80217B
CARBON MONOXIDE HAZARD
• This appliance can produce
carbon monoxide which has
no odor.
• Using it in an enclosed space
can kill you.
• Never use this appliance in
an enclosed space such as a
camper,tent, car or home.

Advertisement

loading
Need help?

Need help?

Do you have a question about the FHTS80217B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

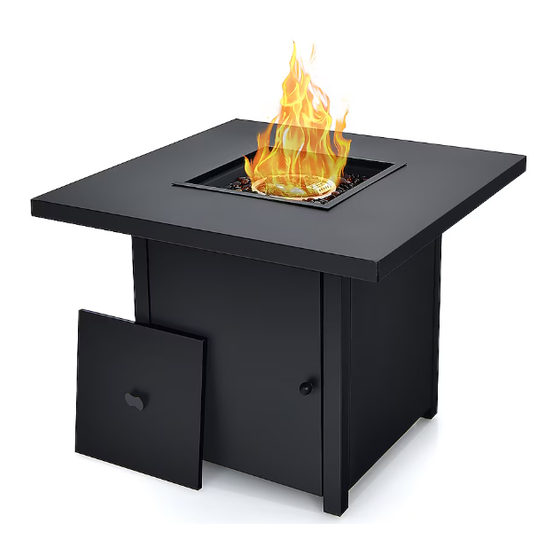

Summary of Contents for Costway FHTS80217B

  • Page 1 • Follow the gas supplier's instructions. NP10164 • If you cannot reach your gas supplier, call the fire department. FHTS80217B Installation and service must be performed by a qualified installer, service agency or gas supplier. WARNING...
  • Page 2: Table Of Contents

    Table of Contents Package Contents Important Safety Information Propane (LP) Dangers And Warnings Caution Hose & Regulator Assembly and replacement Assembly Instructions Operating Instructions Cleaning and Care This appliance complies with "ANSI Z21.97-2017-/CSA2.41 -2017, Outdoor Decorative Gas Appliances." California Proposition 65: This product can expose you to carbon monoxide, which is a combustion by product known to the State of California to cause cancer birth defects or other reproductive harm.
  • Page 3: Package Contents

    PACKAGE CONTENTS...
  • Page 10 a pictorial diagram in at least two views or a single exploded view depicting proper positioning of field assembled parts. The following statement must be included with the pictorial diagrams: “WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts specifically approved with this appliance may result in property damage or personal injury.”...
  • Page 11: Important Safety Information

    IMPORTANT SAFETY INFORMATION WARNING FIRE TABLE IS FOR OUTDOOR USE ONLY Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a qualified service person. More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners and circulating air passageways of the appliance are kept clean.
  • Page 12 Clothing or other flammable materials should not be hung from the appliance or placed on or near the appliance. Any guard, barrier, or other protective device removed for servicing the appliance shall be replaced prior to operating the appliance. ・ Keep these instructions for future reference. If you are assembling this unit for someone else, give this manual to him or her to read and keep for future reference.
  • Page 13 ▪ DO NOT store another LP gas tank within 10 feet (3.05 m) of this outdoor fire table while it is in operation. ▪ DO NOT use this outdoor fire table near automobiles, trucks, vans or recreational vehicles. ▪ DO NOT use this outdoor fire table under any overhead structure or near any unprotected combustible constructions.
  • Page 14 ▪ It is essential to keep the outdoor fire table valve compartment, burners, and circulating air passages clean. Inspect outdoor fire table before each use. ▪ Check for leaks after not using the unit for long periods of time. ▪ Prior to each fire table operation, visually check the hose for evidence of excessive abrasion or wear.
  • Page 15: Propane (Lp) Dangers And Warnings

    PROPANE (LP) DANGERS AND WARNINGS LP GAS LP gas is flammable and hazardous if handled improperly. Become aware of the characteristics before using any LP gas product. Propane Characteristics: • Flammable, explosive under pressure, heavier than air and settles in pools in low areas.
  • Page 16 • Never use an LP gas tank with a damaged body, valve, collar, or footing. Dented or rusted LP gas tanks may be hazardous and should be checked by your LP gas supplier prior to use. • The LP gas tank should not be dropped or handled roughly. •...
  • Page 17: Caution

    CAUTION CAUTION: After lighting - using a fireplace tool and heat-resistant gloves, carefully move the Glass Beads back to their proper position, being careful to avoid the flame. CAUTION: If ignition does not occur in 5 seconds, turn control knob to “ OFF”, wait 5 minutes, fan with a newspaper or magazine and repeat lighting procedure.
  • Page 18: Hose & Regulator Assembly And Replacement

    PREPARATION Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Estimated Assembly Time: 60 minutes HOSE &...
  • Page 19 b. Inspect the seal inside the CGA No 791 service valve on the LP gas cylinder when replacing the cylinder or at least once per year. If there is any indication of damage, have the seal replaced by a certified gas dealer before operating the appliance.
  • Page 20: Assembly Instructions

    ASSEMBLY INSTRUCTIONS...
  • Page 26: Operating Instructions

    OPERATING INSTRUCTIONS Installing LP Gas Tank To operate, you will need one precision -filled standard grill LP gas tank with external valve threads. CAUTION: LP gas tank must be properly disconnected and removed prior to moving this outdoor fireplace. Inserting LP Gas Tank WARNING: Make sure LP gas tank valve is closed.
  • Page 27 Connecting LP Gas Tank 1. Before connecting be sure there is no debris caught in the head of the LP gas tank head of the regulator valve or in the head of the burner or burner ports. 2. Connect regulator/hose assembly to tank by turning knob clockwise until it stops.
  • Page 28 Burner Connections 1. Make sure the regulator hose and valve connections are securely fastened to the burner and the tank. 2. Visually check the connection between the burner/venturi tube and orifice. 3. Make sure the burner/venturi tube fits over the orifice.
  • Page 29 7. Spoon several drops of solution or use a squirt bottle, at all “X” locations (Figures 1 and 2). a. If any bubbles appear, turn LP gas tank valve to “CLOSED”, reconnected and re-test. b. If you continue to see bubbles after several attempts turn LP gas tank valve to “CLOSED”...
  • Page 30 OPERATING INSTRUCTIONS Nests. A clogged tube can lead to a fire. 1. Make sure all labels, packaging and protective films have been removed from the outdoor fireplace. 2. Check for obstructions of airflow to the burner. Spiders, insects and webs can clog the burner/venturi tube.
  • Page 31: Cleaning And Care

    Turning Off 1. Turn LP gas tank valve to “CLOSED". 2. Turn control knob to the " OFF" position. Note: A "poof sound is normal as the last of the LP gas is burned. 3. Disconnect LP gas tank per ''Disconnecting LP Gas Tank" section. CLEANING AND CARE CAUTION: 1.
  • Page 32 7. Check components for any signs of damage or rust. 8. Check for obstructions of airflow to the burner. Spiders, insects and webs can clog the burner/venturi tube. A clogged burner/venturi tube can lead to a fire. 9. If damage to any component is detected, do NOT operate until repairs are completed.
  • Page 33 CARE AND MAINTENANCE Cleaning your fire table top on a consistent and regular basis will help aid in a longer lasting top. Cover your fire table with the included cover when not in use to protect it from the elements. We recommend that your fire table be stored indoors during the winter months.
