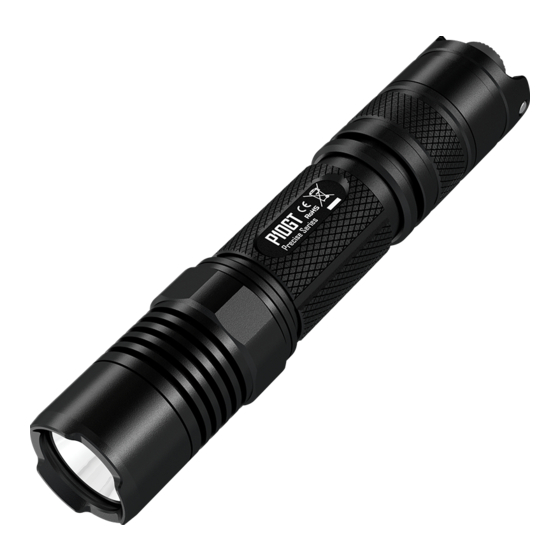

Nitecore P10GT - 900 Lumen Long Throw Tactical Flashlight Manual

Battery Options

Brightness & Runtime

FL1 STANDARD		HIGH (Mode 1,2,3)	MID (Mode 3)	LOW (Mode 2)	LOW (Mode 3)
1×18650		820 LUMENS	250 LUMENS	140 LUMENS	40 LUMENS
		*1h	8h30min	11h45min	17h
2×CR123		900 LUMENS	300 LUMENS	190 LUMENS	60 LUMENS
		*45min	2h15min	3h15min	9h45min
			286m (Beam Distance)
			20,500 cd (Peak Beam Intensity)
			1.5m (Impact Resistant)
			IPX8,2m (Waterproof AND Submersible)

NOTICE: The above data has been measured in accordance with the international flashlight testing standards ANSI/NEMAFL1 using 1×3.7V 3400mAh Nitecore 18650 battery and 2×3V 1700mAh CR123 batteries under laboratory conditions. The data may vary slightly during real-world use due to battery type, individual usage habits and environmental factors.

* The runtime for "High" measured in the chart includes the runtime for when brightness is adjusted from "High" to prevent overheating.

Operating Instructions

Battery Installation

Install one 18650 Li-ion battery or two CR123 Li-ion batteries with the positive pole pointing forward (toward the bezel).

NOTE: Integrated LEDs within the tail switch will blink to indicate remaining battery power after battery installation. Please refer to Power Tips for more information.

1. Install the batteries as instructed. Incorrect battery installation can cause unsuccessful activation.
2. Battery magazine holds 2×CR123 Primary Lithium batteries, inhibits battery movement inside the tube and helps maintain electrical continuity.
3. This product CANNOT be powered by flat-top batteries.
4. AVOID direct eye exposure.

Tactical Momentary Illumination

Simply half press and hold the tail switch to turn on the flashlight, and release to turn it off.

Switching ON/OFF

To switch ON: Press the tail button until a "click" is heard.

To switch OFF: with the light turned on, press the tail button again until a "click" is heard.

Mode Selection

The P10GT offers three different modes of illumination for different users and situations.

Mode 1-Tactical Mode:
this mode only provides high output, and is ideal for self-defense, emergencies and tactical operations.

Mode 2-Law Enforcement Mode:
this mode provides two brightness levels: low and high. This mode is designed for law enforcement officers and patrol guards.

Mode 3-General Mode (default mode for initial activation):
this mode provides three brightness levels: low, medium and high. With the light on, press the STROBE READY^TM button on the tail to cycle through all three brightness levels.

NOTE: When in high, the P10GT will reduce output luminance automatically after 2.5 minutes to prevent battery overheating and extend battery longevity.

To select a desired mode:

1. Ensure the P10GT is switched off.
2. Loosen the bezel.
3. Press and hold the STROBE READY^TM button on the tailcap while simultaneously tightening the bezel.
4. Once the bezel has been tightened, the P10GT will indicate a mode has been selected by flashing once for Tactical Mode, twice for Law Enforcement Mode or three times for General Mode.
5. To cycle through all three modes, simply repeat the above procedures

STROBE READY^TM

1. With batteries loaded and the light off, press and hold STROBE READY^TM button on the tailcap to enter Strobe mode, release to exit.
2. With the light on in Tactical Mode, press STROBE READY^TM button on the tailcap to enter Strobe mode. To exit, simply press STROBE READY^TM button again or switch the light off.
3. With the light on in Law Enforcement Mode or General Mode, press and hold STROBE READY^TM button on the tailcap for more than 0.5 second to enter strobe mode. To exit, simply press STROBE READY^TM button again.

Note: This P10GT's general mode has memory effect to ensure direct access to the last used brightness levels or strobe when resumed.

Power Tips

Upon battery installation, the red power indicator LEDs in the tail switch will blink to indicate battery power:

1. Three blinks indicate power levels above 50%;
2. Two blinks indicate power levels below 50%;
3. One blink indicates power levels below 10%.

Note: The power indication is set to be activated after 20 seconds of power cutoff. To inspect battery power, please loosen the tail cap, wait 20 seconds and retighten it.

Changing Batteries

Batteries should be replaced when any of the following occurs: The power indicators blink rapidly, output appears to be dim or the flashlight becomes unresponsive.

Maintenance

Every 6 months, threads should be wiped with a clean cloth followed by a thin coating of silicon-based lubricant.
