Magnus REX VT-4000-PRO-2 Owner's Manual

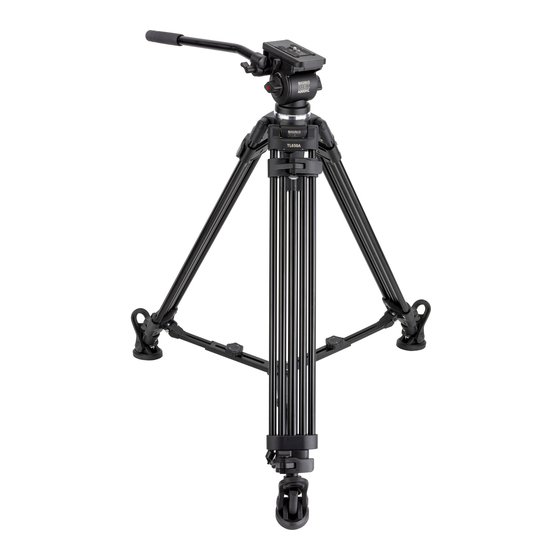

Two-stage video tripod with fluid head
Hide thumbs

Advertisement

Table of Contents

VT-4000-PRO-2
4000HL/TL650A
Two-Stage Video Tripod
with Fluid Head
Owner's
Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REX VT-4000-PRO-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Magnus REX VT-4000-PRO-2

Summary of Contents for Magnus REX VT-4000-PRO-2

  • Page 1 VT-4000-PRO-2 4000HL/TL650A Two-Stage Video Tripod with Fluid Head Owner’s Manual...
  • Page 2 Thank you for choosing Magnus. Magnus REX VT-4000-PRO-2 tripod is designed with advanced features that professional videographers and cinematographers require of their camera-support systems. It’s constructed with sturdy, high-grade aluminum legs with flip locks that provide stable support in the most demanding environments.
  • Page 3 Overview Head (4000HL) Guide pin Quick-release plate Increment scale Pan-handle Rosette LOCK Locking lever & safety hatch Tilt lock knob Bubble level Pan lock knob 1/4-20 mounting Mounting plate screw Balance slide lock Arm angle lock Tilt drag knob Mounting post Reversible handle Leveling knob...
  • Page 4 Tripod (TL650A) 65 mm bowl Also Includes: • Shoulder strap • Padded carry case...
  • Page 5 Precautions • Please read and follow these instructions, and keep this manual in a safe place. • Never set up or pull down a tripod while a camera is mounted. • Do not move the tripod or adjust the legs while a camera is mounted.

  • Page 6: Setting Up The Tripod

    Setting Up the Tripod Extend the legs from the top flip-locks first. Determine whether the rubber feet or the spikes are appropriate for the setup surface. To use the spikes, remove the rubber feet by pulling up on the circular tabs and sliding the rubber feet off the spikes.

  • Page 7: Attaching A Camera

    Attaching a Camera Remove the quick-release plate: Slide the locking lever to the left until it stops. Then press down the safety latch, and continue to slide the lever to the left. The plate will pop out of the mounting plate. Attach the quick-release plate to the base of your camera with the 1/4-20 mounting screw and guide pin.
  • Page 8 Operating the VT-4000-PRO-2 Make a note of your camera’s position on the increment scale, so you can easily balance your camera the next time you use it.

  • Page 9: Specifications

    Specifications General Load Capacity: 11 lb. (5 kg) Maximum Working Height: 63.5 in. (161.3 cm) Minimum Working Height: 28.3 in. (72 cm) Folded Length: 31.5 in. (80 cm) Weight: 9.9 lb. (4.5 kg) Materials: Anodized aluminum alloy Bubble Level: Yes Head Counterbalance System: Spring loaded Quick-Release Plate: 0.3 ×1.7×2.7 in.

  • Page 10: Five-Year Limited Warranty

    Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Magnus along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
