- Page 1 VT-5000 5000H/TL750A Two-Stage Video Tripod with Fluid Head Owner’s Manual...
- Page 2 Thank you for choosing Magnus. The Magnus REX VT-5000 tripod is designed with advanced features that professional videographers and cinematographers need for their camera-support systems and shooting styles. It’s constructed with sturdy, high-grade aluminum legs with flip locks that provide stable support in the most demanding environments.
- Page 3 Specifications General Load Capacity: 17 lb. (7.7 kg) Maximum Working Height: 64.25 in. (163.2 cm) Minimum Working Height: 29 in. (73.6 cm) Folded Length: 32.6 in. (82.8 cm) Weight: 11.2 lb. (5.1 kg) Materials: Anodized aluminum alloy Bubble Level: Yes Head Counterbalance System: Spring loaded Quick-Release Plate: 4.7 ×...
- Page 4 Overview Head (5000H) Quick-release plate Tilt lock QR plate locking knob Reversible handle Handle locking knob Mounting post Handle length adjustment knob Leveling knob Mounting screw holes Mounting screw Guide pin 1/4-20 mounting hole QR plate release button Tilt drag Bubble level Pan lock...
- Page 5 Tripod (TL750A) 75 mm bowl Also Includes • Shoulder strap • Padded carry case...
- Page 6 Operating the VT-5000 Handle Loosen the handle locking knob to adjust the vertical angle of the handle and to turn the handle to adjust the curve angle. Use the length adjustment knob to lengthen or shorten the handle. Tilt Control Turn the tilt lock clockwise to lock the tilting action.
- Page 7 Turn the tilt drag knob clockwise to increase the tension. Pan Control The VT-5000 is designed with fixed pan to ensure smooth panning. When the panning motion is unlocked, the head will always have the same amount of tension. Turn the pan lock a quarter-turn clockwise to lock the panning motion.
- Page 8 Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Magnus along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
Need help?
Do you have a question about the Rex VT-5000 and is the answer not in the manual?
Questions and answers

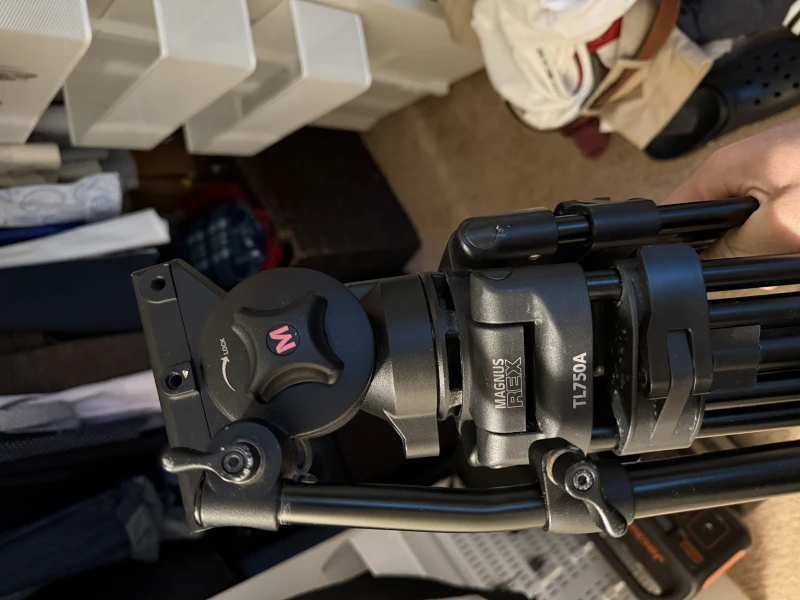

magnus rex tl750a fluid head tripod is missing a balance slide lock. Otherwise, the tripod works great. Can I order this piece specifically? Or is there a piece of hardware (size/ thread) I could buy from the Hardware store locally?
