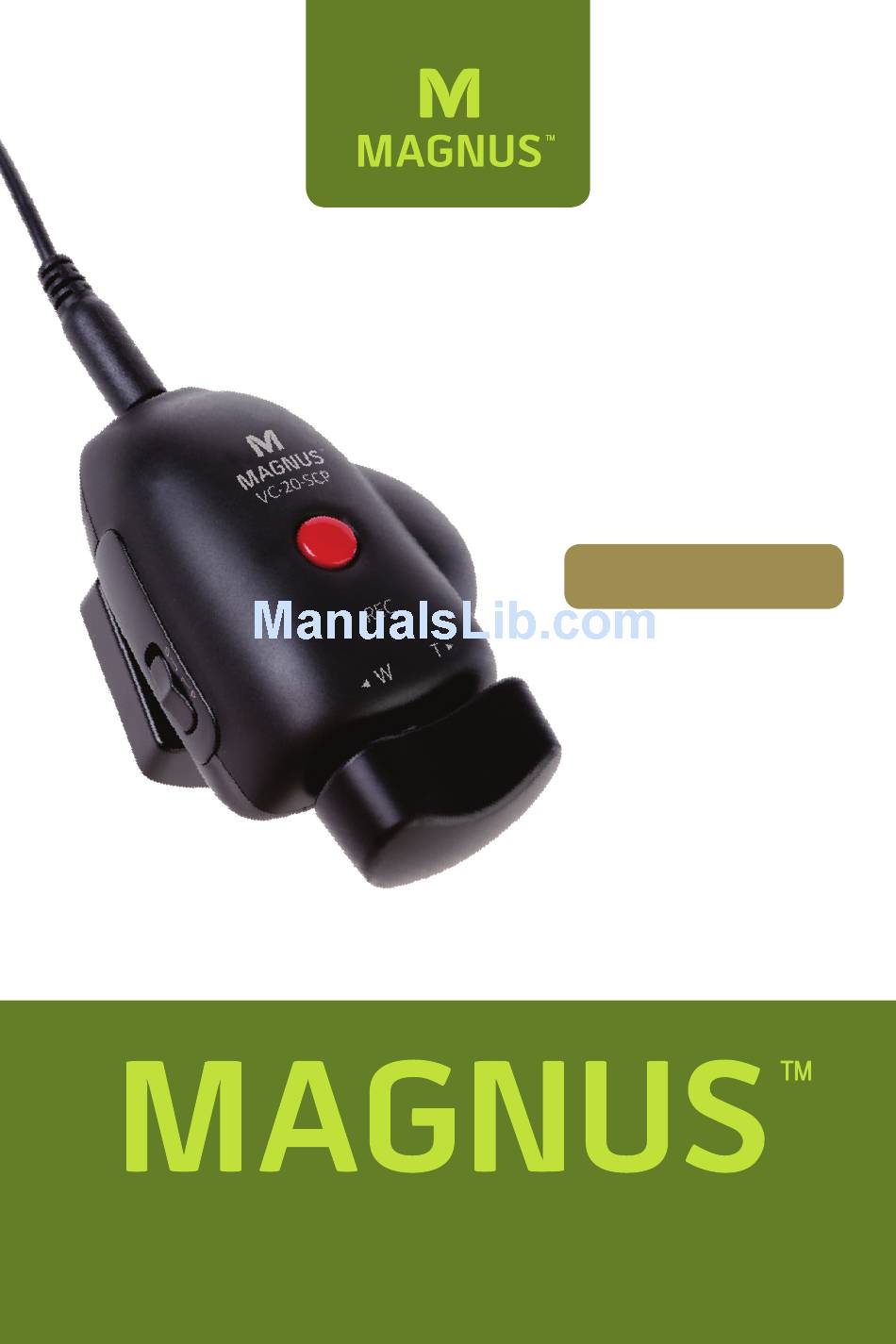

- Page 1 VC-20-SCP Owner’s Manual Zoom Controller...
- Page 2 Record and Zoom functions for a variety of compatible Canon, Sony, and Panasonic camcorders. The VC-20-SCP has a built-in clamp that allows you to mount it to the pan handle of your tripod, or to a jib, tube, pipe, or bar.
-
Page 3: Controller Components

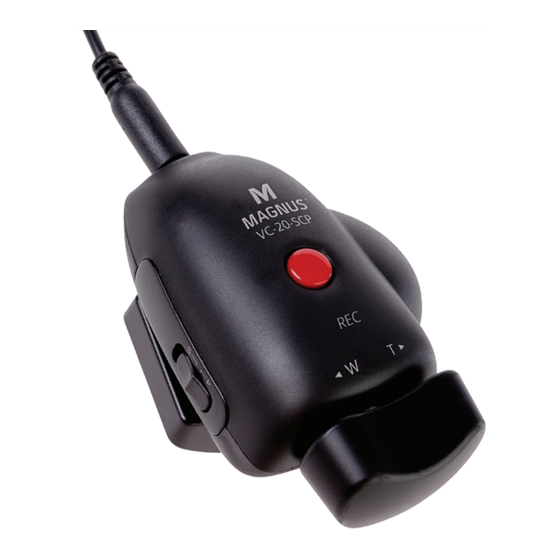

Controller Components Control Cable Record Button Camcorder Selector Slider Switch Clamp Zoom Control Rocker Switch Clamp Knob .Image is for illustration purposes only... - Page 4 Includes: • Magnus VC-20-SCP Zoom Controller • One cable for use with Canon, Sony or Panasonic camcorders • User instruction manual • On-year limited warranty Mount the controller to the pan handle Move the selector slider to the correct position—“S” for Sony or Canon, “P” for Panasonic.
- Page 5 Loosen the clamp using the clamp knob. Place the controller on the pan handle, with the handle centered in the clamp’s V shape. Hand-tighten the clamp securely.
- Page 6 Attach the cable to the camcorder With the camcorder turned off, carefully insert the control cable plug into the camcorder’s LANC socket. Note: When plugging or unplugging the control cable, always hold the plug firmly—don’t pull the cable.
-
Page 7: Operation
Operation Press the red REC button to begin recording; to stop recording, press the red button again. Use the variable-speed zoom rocker switch to control the zoom function. - Page 8 Press the side of the switch marked “W” to zoom out to a more wide-angle view; press the “T” side to zoom into a more telephoto view. Pressing the switch with more force increases the speed of the zoom; pressing with less force decreases the speed of the zoom.
-
Page 9: Specifications
Specifications • Stereo cable jack: 2.5 mm (3/32″) • Cable length: 22.5″ (57.15 cm) • Clamp size (open): 1.25″ (31.75 mm) • Dimensions: 3.58 × 2.22 × 3.28″ (90.9 × 56.4 × 83.3 mm) • Weight: 4 oz. (113.4 g) - Page 10 • Do not attempt to disassemble or repair the equipment—doing so will void the warranty, and Magnus will not be responsible for any damage. • Handle the unit with care. • Keep cable socket and mini jack clean.
-
Page 11: One (1) Year Limited Warranty
Inoperability product that fails during normal consumer use. Inoperability of the product or part(s) shall be determined by Magnus. If of the product or part(s) shall be determined by Magnus. If the product has been discontinued, we reserve the right to the product has been discontinued, we reserve the right to replace it with a model of equivalent quality and function. - Page 12 www.MagnusTripods.com © Copyright 2013 Gradus Group LLC...
