O W N E R ' S M A N U A L
1. Read this manual carefully before starting assembly. Read each step completely before beginning
each step.
2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons
before assembling or ordering parts.
3. Tomake assembly of your basketball system easier, use the Hardware Identifier on page 3
and 4 to identify and sort all fasteners. Check all cartons for kits. All hardware is not
located in one kit.
4. Do not tighten hardware until instructed to do so. If hardware is tightened too soon, mounting
holes may not align and parts may not easily fit together. Leave locknuts slightly loose until you are
instructed to tighten them.
5.
An electric screwdriver is helpful in assembly. However, please set at low torque and use caution
because you could overtighten the hardware and strip the screws.
6.
Save this instruction and your proof of purchase (receipt) in the event that the manufacturer
has to be contacted for replacement parts.
Please Do Not Return This Product To The Store!
Contact Escalade Sports customer service department at:
Phone:
1-888-USA-GOAL
Fax:
1-866-873-3536
E-mail:
basketball@escaladesports.com
Mailing Address:
Escalade Sports
PO Box 889
Evansville, IN 47706
Please visit our World Wide Web site at:
ON-LINE TROUBLE SHOOTING
ON-LINE PARTS REQUESTS
ADDITIONAL ESCALADE® SPORTS PRODUCT INFORMATION
Escalade® Sports products may be manufactured and/or licensed under the following patents.
6419596, 6179733, 5919102, 5071120, 4798381, 4424968, D326128
Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.
®
Toll
Free !
Toll
Free !
www.G oalrilla.com
TECHNICAL ASSISTANCE
FREQUENTL Y ASKED QUESTIONS
MODEL NO.
B6101W
DC72E1

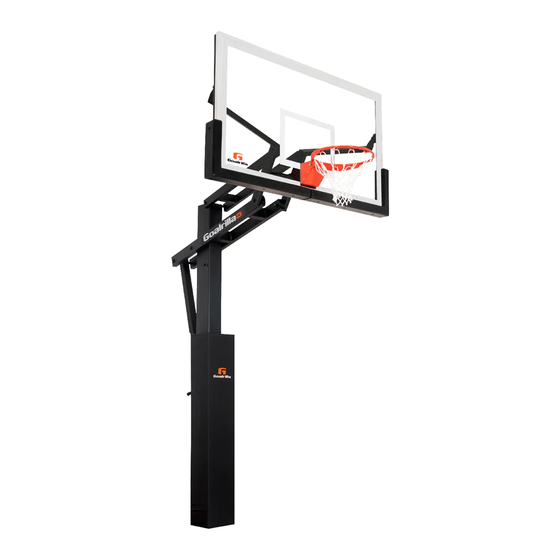

BASKETBALL SYSTEM
2L-7252-00
2011 Escalade Sports
Advertisement
Related Manuals for GOALRILLA B6101W
Summary of Contents for GOALRILLA B6101W
- Page 1 MODEL NO. B6101W DC72E1 BASKETBALL SYSTEM O W N E R ' S M A N U A L 1. Read this manual carefully before starting assembly. Read each step completely before beginning each step. 2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons before assembling or ordering parts.
-
Page 3: Hardware Identifier
HARDWARE IDENTIFIER 5/8”-11 x 11-1/2” Hex Bolt (1 Piece) 1/2” X 1-1/4” Dia. Plastic-Washer (4 Pieces) / 1 2” -13 x 1” / 1 2” Flat Washer Hex Bolt (2 Pieces) (2 Pieces) Pull Pin (1 Piece) 1/2” Split Lock Washer (2 Pieces) Hardware located in 4A-7810-00 box 1/2”-13... - Page 4 HARDWARE IDENTIFIER 3/8” X 19mm Flat Washer (4 pieces) Hardware required for rim assembly 1/2”-13 x 11 1/2” 3/8”-16 X 2” (2 Pieces) 1/2” X 1-1/4” Dia. Peel & Stick Plastic-Washer (4 Pieces) 1/2”-13 X 1-1/2” Hex Bolt (2 Pieces) 3/8”-16 X 3-1/2”...
- Page 5 Vertical main post assembly is a two part process. PART 1 PART 2 Day 1. Complete Anchor System Installation Instructions. Day 5. Complete Goalrilla assembly instructions. (Requires (Below) four adults) Day 2-4. Allow concrete to cure. ANCHOR SYSTEM INSTALLATION INSTRUCTIONS (Day 1)
- Page 6 Bolt (#7), two Flatwashers (#3), four Plastic Washers (#5) and Lock Nut (#4). Do not tighten Bolt (#7) at this time. NOTE: Make sure "Goalrilla lettering is right side up. " DO NOT tighten bolt (#7) at this time.
- Page 7 Secure Actuator (#16) to Lower Arm (#11) using one Bolt (#8), two flatwashers (#37), four Plastic Washers (#53) and one Lock Nut (#54). See Figure 5. Tighten bolts (#7) and (#8) snug but, do not over tighten. Board Arms must pivot freely.
-
Page 8: Drain Hole
Note: part #56 are Peel & stick Plastic Washers. DRAIN HOLE Figure 7A DRAIN HOLE (Attached in step 9A) Figure 7 (Attached in step 9A.) IMPORTANT: Upper Arm (#6) must be turned exactly as shown with drain holes toward backboard or your backboard will not be straight. Attach Peel &... - Page 9 12. Attach Rim Beam (#25) to Upper Arm (#6), using four bolts (#46), four Flat Washers (#26), four Flat Washers (#45) and Lock Nut (#33) but do not tighten completely until instructed to do so in Step 19. Make sure that angled end is attached to Upper Arm (#6).
- Page 10 13. Locate hardware needed to mount pole to anchor bolts. You will need, eight flatwashers (#37), four lock Washers (#36), four hex nuts (#35) and four thread protectors (#34). Note: Do not remove the nuts you installed in step 2 (pg. 5). PLACING THE POST ON THE ANCHOR SYSTEM 14.
- Page 11 Place level across bottom frame of the backboard as shown in figure 11. If leveling is needed have a second person push up on one end of the backboard and adjust the backboard until level. While holding the backboard level, ATTACHING BACKBOARD TO BOARD ARMS tighten hardware from Step 12.
- Page 12 23. Adjust unit to lowest position. Use a tape measure to measure from the top of the rim to the playing surface. Stick Height Decal (#17) to back of Actuator (#16) with the measured height mark aligned with bottom of Actuator Sleeve (#15). See Figure 12. Figure 12 Grease fitting Figure 13...
- Page 13 Two adults are recommended for this step, one to level and one to adjust the bottom #35 nuts. If further leveling is required loosen top #35 nuts but do not loosen past the top of #39 “J” Bolt. DO NOT REMOVE NUTS #35 Place a level on pole and adjust bottom nuts #35 with a 15/16”...
-
Page 14: Limited Lifetime Warranty
Subject to proper installation and normal Residential use, Escalade Sports warrants, subject to the limitations below, to the original retail purchaser all structural components of the Goalrilla™ System to be free of defects in material and workmanship for the duration of ownership by the original retail purchaser. -
Page 15: Care And Maintenance
To ensure ease of operation, lubricate all pivot points at least every 6 months or as needed with a good lubricant such as WD-40. RUST , remove loose paint, sand lightly, primer and paint with exterior flat matte finish Inspect your pole periodically, if rust should appear enamel paint. B6101W PARTS LIST Key# Part # Description Qty. - Page 16 2L-7252-00...
- Page 17 2L-7252-00...
