GOALRILLA B4800W Assembly Instruction Manual

72" backboard, fixed height basketball system
Hide thumbs

Advertisement

Quick Links

Download this manual

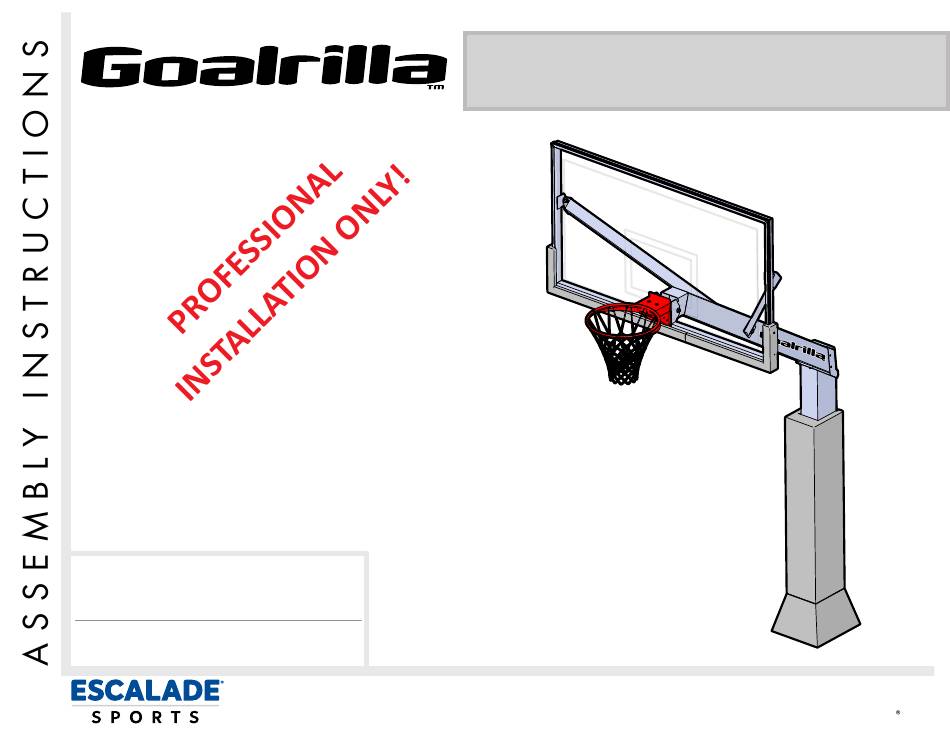

7 2 " B A C K B O A R D , F I X E D H E I G H T
B A S K E T B A L L S Y S T E M
MODEL NO.
B4800W
Please Do Not Return This
Product to the Store!
Contact Escalade® Sports customer service department at:
Phone: 1-888-USA-GOAL Toll-Free!
Fax: 1-866-873-3536 Toll-Free!
E-mail: customerservice@escaladesports.com
2L-7987-01
2023 Escalade Sports

Advertisement

loading
Need help?

Need help?

Do you have a question about the B4800W and is the answer not in the manual?

Questions and answers

Related Manuals for GOALRILLA B4800W

Summary of Contents for GOALRILLA B4800W

  • Page 1 7 2 ” B A C K B O A R D , F I X E D H E I G H T B A S K E T B A L L S Y S T E M MODEL NO. B4800W Please Do Not Return This Product to the Store! Contact Escalade®...

  • Page 2: P R E - A S S E M B L Y T I P S

    7/32” Hex Key Escalade Sports Physical Location: Mailing Address: (Correspondence Only) Please visit our Website at: 817 Maxwell Ave. PO Box 889 www.Goalrilla.com Evansville, 47711 Evansville, 47706 ON-LINE TROUBLE SHOOTING TECHNICAL ASSISTANCE PRODUCT REGISTRATION FREQUENTLY ASKED QUESTIONS ADDITIONAL GOALRILLA PRODUCT INFORMATION...
  • Page 3 If using a ladder during assembly, use extreme caution. 4 people are recommended for this operation. Backboard installation must be performed by a professional with capable lifting equipment. Seat the pole sections properly (if applicable). Failure to do so could allow the pole sections to separate during play.
  • Page 4 P A R T S L I S T ( N O T A C T U A L S I Z E ) NOTICE DO NOT REMOVE THE PROTECTIVE FILM ON THE UPPER BASE POLE UNTIL INSTALLATION IS COMPLETE. Warning label on the backside of pole Do Not remove...
  • Page 5 A C C E S S O R I E S ( N O T A C T U A L S I Z E ) UNIVERSAL POLE PAD BOARD PAD LEFT BOARD PAD CENTER BOARD PAD RIGHT 3M-8926-00 3M-8904-00 3M-8907-00 3M-8905-00 (QTY.
  • Page 6 H A R D W A R E I D E N T I F I E R ( A C T U A L S I Z E ) NOTE: There will be leftover, unused hardware in the hardware 1/2-13 X 7 3/4"...
  • Page 7 A N C H O R K I T H A R D W A R E I D E N T I F I E R ( A C T U A L S I Z E ) 5/8"-11 HEX NUT 5/8"...
  • Page 8 Vertical main post assembly is a two part process. PART 1 PART 2 Day 1. Complete Anchor System Installation Instructions. Day 5. Complete Goalrilla assembly instructions. (Requires (Below) four adults) Day 2-4. Allow concrete to cure. ANCHOR SYSTEM INSTALLATION INSTRUCTIONS (Day 1) Items needed for Anchor Installation (not included) 11 - 80 lb.
  • Page 9 ANCHOR SYSTEM INSTALLATION INSTRUCTIONS (Day 1) NOTE: Using a concrete form for the top 4" of the concrete is recommended. Cardboard forms can be purchased at some hardware and home stores or a wooden form can be constructed out of 2 x 4's. NOTE: Failure to dig and fill the hole as instructed will result in increased system vibration.
  • Page 10 2B-6098-03 (QTY. 8) *Hardware located in Anchor kit box GOALRILLA ASSEMBLY INSTRUCTIONS (Day 5) 1. Lift the lower pole (#2) and place it onto the anchor system and secure it with the hardware as shown. Tighten the Fasteners finger tight, and leave them loose enough to level the pole.
  • Page 11 HARDWARE NEEDED (ACTUAL SIZE) TOOLS NEEDED DETAIL A 3/8-16 x 1” Button 1/2-13 X 1.5 Hex Head Screw - Zinc 1/2” Drive Torque 7/32” Hex Key Head Bolt - Zinc Wrench with 3/4” 1B-7221-00 1B-6486-10 Socket (QTY. 2) (QTY. 2) Counter Sunk Threaded Washer 1/2”-13 DETAIL B...
  • Page 12 HARDWARE NEEDED (ACTUAL SIZE) TOOLS NEEDED NOTICE DO NOT REMOVE THE PROTECTIVE FILM ON THE #10-32 X 3/4 Thread UPPER BASE POLE UNTIL INSTALLATION IS COMPLETE. Cutting Screws Phillips 1B-7271-00 (QTY. 4) 6. Install Board Arm Cap (#4) onto the Upper Base Pole (#3) using screws (#36) as shown in Detail A.
  • Page 13 NOTE: Adjustments to the front 7. Using the Leveling nuts, adjust the system so the bottom inside leveling nut will have the largest surface of the upper base pole is 113 7/8" from the playing surface. influence on achieving the 113 7/8” See Detail A &...
  • Page 14 8. Attach Right Arm (#5) & Left Arm (#6) as shown in Detail A. Hand tighten the Locknuts only. You will be instructed to tighten the Locknuts in a later step. DETAIL A NOTICE DO NOT REMOVE THE PROTECTIVE FILM ON THE UPPER BASE POLE UNTIL INSTALLATION IS COMPLETE.
  • Page 15 Attaching metal net cable to the rim. DETAIL A 1. Place the Rim on a Non-Abrasive table upside down and locate the small cable tubes. See Figure 1 & Detail A. 2. Insert the net cable through the first cable tube. See Detail A.
  • Page 16 Attaching net to the rim. DETAIL A 4. Pick a loop on the nylon rim net and put it through the net cable as shown in Detail A & Detail B. Note: Make sure there are no twists in net loops. 5.
  • Page 17 Tighten the Set Screws DETAIL A 6. Repeat steps 1-5 until all the net loops are through the net cable and the net cable is through all the cable tubes. See Figure 3 & Detail A. NOTE: Using needle nose pliers is recommended to make it easier to hold and pull the net cable through the small metal tubes but it is not required.
  • Page 18 Inserting top Carriage Bolts to top rim slots. 9. Slide the Carriage Bolts (#15) outward into the 8. Insert the top Carriage Bolts (#15) into the carriage bolt holes located at the top back of slots as shown below. Carriage Bolts should stay in the rim.
  • Page 19 TOOLS NEEDED Mounting Goal Assembly to the backboard. Open lid of box containing backboard (#1). With the help of another capable adult rotate the backboard upright to a vertical position. 9/16” Level Note: Do not take Backboard out of the box. Use the cardboard box under backboard to protect backboard paint from scratches.
  • Page 20 IT IS RECOMMENDED THAT THE FOLLOWING STEPS ARE DONE BY A PROFESSIONAL WITH CAPABLE EQUIPMENT. PLEASE TAKE PROPER SAFETY MEASURES WHEN ATTACHING THE BACKBOARD TO UPPER ARM. Before proceeding to the next step have the hardware and tools ready along with professional equipment.
  • Page 21 DANGER DANGER THE FOLLOWING STEPS MUST BE COMPLETED BY A PROFESSIONAL EXTREMELY HEAVY BACKBOARD! HANDLE WITH WITH CAPABLE LIFTING EQUIPMENT. PLEASE TAKE PROPER MEASURES CARE, IT IS A GLASS PRODUCT. ALWAYS WEAR WHEN ATTACHING THE BACKBOARD TO UPPER BASE POLE. BE SAFETY GLASSES AND GLOVES WHEN HANDLING PREPARED TO ATTACH THE UPPER BOARD ARMS IMMEDIATELY AFTER GLASS.
  • Page 22 DANGER DANGER THE BACKBOARD WILL PIVOT UNTIL THE UPPER BOARD ARMS ARE EXTREMELY HEAVY BACKBOARD! HANDLE WITH CARE, IT IS A GLASS PRODUCT. ALWAYS WEAR INSTALLED. DO NOT LEAVE THE SYSTEM UNATTENDED UNTIL THE SAFETY GLASSES AND GLOVES WHEN HANDLING UPPER BOARD ARMS ARE ATTACHED AND SECURED.
  • Page 23 HARDWARE NEEDED (ACTUAL SIZE) #8 X 1/2" THREAD CUTTING SCREW 1B-6238-01 (QTY. 4) TOOLS NEEDED Place level here Phillips Level #2 Bit Cordless Drill 4. Place Level across the Goal Assembly and adjust until level. Finish tightening the four (#17) nuts on the back of the Goal assembly until Goal Assembly is secure.
  • Page 24 TOOLS NEEDED HARDWARE NEEDED (ACTUAL SIZE) NOTICE TWO ADULTS ARE RECOMMENDED FOR THIS STEP , ONE TO LEVEL AND ONE TO ADJUST THE BOTTOM #29 NUTS. 5/8" THREAD PROTECTOR CAP 3M-9040-00 NOTE: At this time, measure the height of the (QTY.
  • Page 25 Secure Post Pad (#7) to front of pole by wrapping straps around the back pole and sticking to velcro on opposite side of pad as shown.
  • Page 26 Important Note: Cordless Drill and board pad screws must be drilled in straight to avoid shattering the backboard glass. *Net not shown for clarity. Backboard Pads Backboard Pads Mounting Screw (#37) Detail A DetailA Note: Part (#10) is a Right Backboard pad & (#8) is a Left Backboard pad. Note: Safety glasses required for Step 8.

  • Page 27: Care And Maintenance

    CARE AND MAINTENANCE BACKBOARD CARE AND MAINTENANCE Items needed to clean backboard: 100% cotton soft cloth, (only) Ammonia-free glass cleaner Clean backboard using only a 100% Cotton soft cloth and Ammonia-free glass cleaner. Clean glass as you would clean household windows.

  • Page 28: Limited Lifetime Warranty

    Subject to proper installation and normal use, Escalade Sports warrants, subject to the limitations below, to the original retail purchaser all structural components of the Goalrilla™ System to be free of defects in material and workmanship for the duration of ownership by the original retail purchaser.
