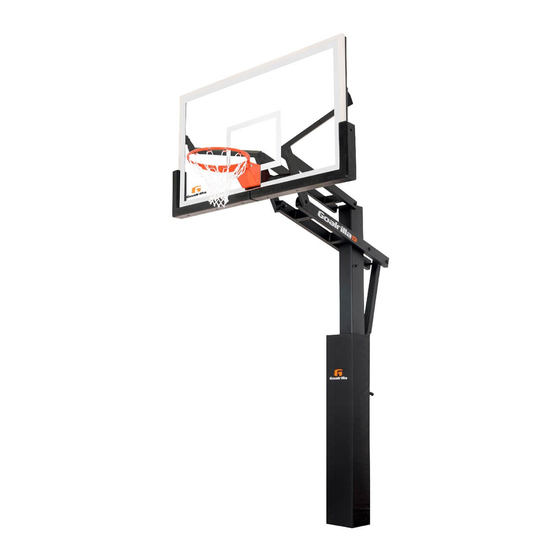

Basketball system

Advertisement

Quick Links

O W N E R ' S M A N U A L
1. Read this manual carefully before starting assembly. Read each step completely before beginning
each step.
2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons
before assembling or ordering parts.
3. Tomake assembly of your basketball system easier, use the Hardware Identifier on page 3
and 4 to identify and sort all fasteners. Check all cartons for kits. All hardware is not
located in one kit.
4. Do not tighten hardware until instructed to do so. If hardware is tightened too soon, mounting
holes may not align and parts may not easily fit together. Leave locknuts slightly loose until you are
instructed to tighten them.
5.
An electric screwdriver is helpful in assembly. However, please set at low torque and use caution
because you could overtighten the hardware and strip the screws.
6.
Save these instructions and your proof of purchase (receipt) in the event that the manufacturer
has to be contacted for replacement parts.
Please Do Not Return This Product To The Store!
Contact Escalade Sports customer service department at:
Phone:
1-888-USA-GOAL
Fax:
1-866-873-3536
E-mail:
basketball@escaladesports.com
Mailing Address:
Escalade Sports
PO Box 889
Evansville, IN 47706
Please visit our World Wide Web site at:
ON-LINE TROUBLE SHOOTING
ON-LINE PARTS REQUESTS
ADDITIONAL ESCALADE® SPORTS PRODUCT INFORMATION
Escalade® Sports products may be manufactured and/or licensed under the following patents.
6419596, 6179733, 5919102, 5071120, 4798381, 4424968, D326128, 8398509
Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.
®
Toll
Free !
Toll
Free !
www.G oalrilla.com
TECHNICAL ASSISTANCE
FREQUENTL Y ASKED QUESTIONS
MODEL NO.
B6101
DC72E1
BASKETBALL SYSTEM
2L-7252-06
2018 Escalade Sports

Advertisement

loading
Need help?

Need help?

Do you have a question about the B6101 and is the answer not in the manual?

Questions and answers

Gary Merrell
July 27, 2025

I purchased a Goalrilla adjustable goal in 1993. Its getting very hard to crank it up. Any suggestions

Summary of Contents for GOALRILLA B6101

  • Page 1 MODEL NO. B6101 DC72E1 BASKETBALL SYSTEM O W N E R ' S M A N U A L 1. Read this manual carefully before starting assembly. Read each step completely before beginning each step. 2. Some smaller parts may be shipped inside larger parts. Check inside all parts and cartons before assembling or ordering parts.
  • Page 3: Hardware Identifier

    HARDWARE IDENTIFIER 5/8”-11 x 11-1/2” Hex Bolt (1 Piece) 1/2” X 1-1/4” Dia. Plastic-Washer (4 Pieces) / 1 2” -13 x 1” / 1 2” Flat Washer Hex Bolt (2 Pieces) (2 Pieces) Pull Pin (1 Piece) 1/2” Split Lock Washer (2 Pieces) Hardware located in 4A-7810-00 box 1/2”-13...
  • Page 4 HARDWARE IDENTIFIER 3/8” X 19mm Flat Washer (4 pieces) Hardware required for rim assembly 1/2”-13 x 11 1/2” 3/8”-16 X 2” (2 Pieces) 1/2” X 1-1/4” Dia. Peel & Stick Plastic-Washer (4 Pieces) 1/2”-13 X 1-1/2” Hex Bolt (2 Pieces) 3/8”-16 X 3-1/2”...
  • Page 5 Vertical main post assembly is a two part process. PART 1 PART 2 Day 1. Complete Anchor System Installation Instructions. Day 5. Complete Goalrilla assembly instructions. (Requires (Below) four adults) Day 2-4. Allow concrete to cure. ANCHOR SYSTEM INSTALLATION INSTRUCTIONS (Day 1)
  • Page 6 Bolt (#7), two Flatwashers (#3), four Plastic Washers (#5) and Lock Nut (#4). Do not tighten Bolt (#7) at this time. NOTE: Make sure "Goalrilla" lettering is right side up. DO NOT tighten bolt (#7) at this time.
  • Page 7 Secure Actuator (#16) to Lower Arm (#11) using one Bolt (#8), two flatwashers (#21), four Plastic Washers (#53) and one Lock Nut (#54). See Figure 5. Tighten bolts (#7) and (#8) snug but, do not over tighten. Board Arms must pivot freely.
  • Page 8: Drain Hole

    Note: part #56 are Peel & stick Plastic Washers. DRAIN HOLE Figure 7A DRAIN HOLE (Attached in step 9A) Figure 7 (Attached in step 9A.) IMPORTANT: Upper Arm (#6) must be turned exactly as shown with drain holes toward backboard or your backboard will not be straight. Attach Peel &...
  • Page 9 Attach Rim Beam (#25) to Upper Arm (#6), using four bolts (#46), four Flat Washers (#26), four Flat Washers (#45) and Lock Nut (#33) but do not tighten completely until instructed to do so in Step 20. Make sure that angled end is attached to Upper Arm (#6).
  • Page 10 Locate hardware needed to mount pole to anchor bolts. You will need, eight flat washers (#37), four lock washers (#36), four hex nuts (#35) and four thread protectors (#34). NOTE: Do not remove the nuts #35 you installed in step 2 (pg. 5). PLACING THE POST ON THE ANCHOR SYSTEM REQUIRES AT LEAST FOUR CAPABLE ADULTS.
  • Page 11 16. Slide Actuator Crank (#42) onto shaft on the bottom of Actuator (#16). Line up hole in shaft with hole in Actuator Crank and insert Pull Pin (#41) to secure. See Figure 10. 17. To aid in the assembly of the backboard lower the backboard, by turning the Actuator Crank, until the lower arm makes contact with the Safety Stop.
  • Page 12 21. Place a level across rim assembly and adjust rim until it is level. Finish tightening the four nuts from Step 19. If you want to see a video on how to level the backboard go to: HANDLE BACKBOARD WITH CARE, IT IS A GLASS http://www.escaladesports.com/customer-service/instruction- PRODUCT.
  • Page 13 #49 Left Backboard pad marked with an “L” #48 Right Backboard pad marked with an “R” Backboard Figure 12 Pads (# 48 & 49) Mounting Screw (# 51) Detail C Note: Part #48 is a Right Backboard pad & #49 is a Left Backboard pad. Use the Backboard Pads as a Template and mark the hole locations on the backboard frame.
  • Page 14 Two adults are recommended for this step, one to level and one to adjust the bottom #35 nuts. If further leveling is required loosen top #35 nuts but do not loosen past the top of #39 “J” Bolt. DO NOT REMOVE NUTS #35 Place a level on pole and adjust bottom nuts #35 with a 15/16”...
  • Page 15 Raise Backboard to 10 FT. regulation playing height. Measure from top of rim straight down to the playing surface. Using tape - mark the side of the steel actuator (#16) just under the plastic actuator sleeve (#15) at this 10 ft rim height. See Figure 14. Tape at 10 Lower backboard all the way down.
  • Page 16: Limited Lifetime Warranty

    Subject to proper installation and normal Residential use, Escalade Sports warrants, subject to the limitations below, to the original retail purchaser all structural components of the Goalrilla™ System to be free of defects in material and workmanship for the duration of ownership by the original retail purchaser.
  • Page 17: Care And Maintenance

    To ensure ease of operation, lubricate all pivot points at least every 6 months or as needed with a good lubricant such as WD-40. RUST , remove loose paint, sand lightly, primer and paint with exterior flat matte finish Inspect your pole periodically, if rust should appear enamel paint. B6101 PARTS LIST Key# Part # Description Qty.
  • Page 18 2L-7252-06...
  • Page 19 2L-7252-06...
