O W N E R ' S M A N U A L
1. Read this manual carefully before starting assembly. Read each step completely
before beginning each step.
2. Some smaller parts may be shipped inside larger parts. Check inside all parts and
cartons before assembling or ordering parts.
3. To make assembly of your basketball system easier, use the Hardware Identifier on
page 3 and 4 to identify and sort all fasteners. Check all cartons for kits. All hardware
is not located in one kit.
4. 4. Do not tighten hardware until instructed to do so. If hardware is tightened too soon,
mounting holes may not align and parts may not easily fit together. Leave locknuts slightly
loose until you are instructed to tighten them.
5.
Save these instructions and your proof of purchase (receipt) in the event that the manufacturer
has to be contacted for replacement parts.
Please Do Not Return This Product to the Store!
Contact Escalade
Phone:
1-888-USA-GOAL
Fax:
1-866-873-3536
E-mail:
basketball@escaladesports.com
Mailing Address:
Escalade Sports
PO Box 889
Evansville, IN 47706
Please visit our World Wide Web site at:
ON-LINE TROUBLE SHOOTING
ON-LINE PARTS REQUESTS
ADDITIONAL ESCALADE® SPORTS PRODUCT INFORMATION
Escalade® Sports products may be manufactured and/or licensed under the following patents.
6419596, 6179733, 5919102, 5071120, 4798381, 4424968, D326128
Additional patents may be pending. One or more of the listed patents and/or pending patents may cover specific product.
® ® ® ® ®
Sports customer service department at:
Toll – Free !
Toll – Free !
www.goalrilla.com
TECHNICAL ASSISTANCE
FREQUENTLY ASKED QUESTIONS

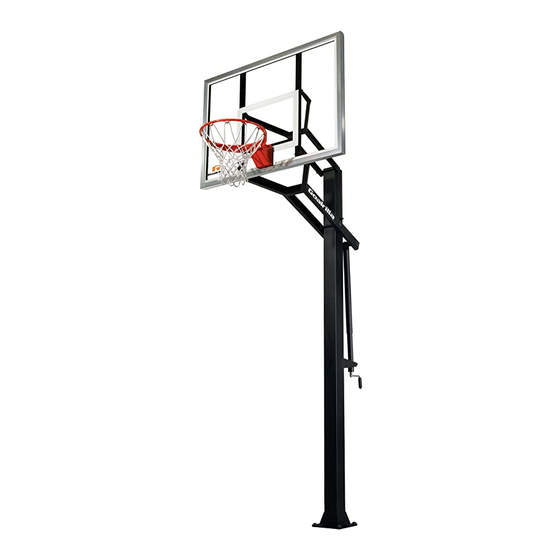

MODEL NO.
B B 3200W
GSII
BASKETBALL SYSTEM
2L-7164-05
Ó2018 Escalade
Ò
Sports
Advertisement
Related Manuals for GOALRILLA B3200W
Summary of Contents for GOALRILLA B3200W
- Page 1 Toll – Free ! E-mail: basketball@escaladesports.com Mailing Address: Escalade Sports PO Box 889 Evansville, IN 47706 www.goalrilla.com Please visit our World Wide Web site at: ON-LINE TROUBLE SHOOTING TECHNICAL ASSISTANCE ON-LINE PARTS REQUESTS FREQUENTLY ASKED QUESTIONS ADDITIONAL ESCALADE® SPORTS PRODUCT INFORMATION 2L-7164-05 Escalade®...
-
Page 3: Hardware Identifier
HARDWARE IDENTIFIER 1/2” X 1-1/4” Dia. Plastic-Washer (4 Pieces) / 1 2” -13 x 1” / 1 2” Flat Washer Hex Bolt (2 Pieces) (2 Pieces) Pull Pin (1 Piece) 1/2” Split Lock Washer (2 Pieces) (Actuator) 1/2”-13 x 10” Hardware located in 4A-7081-00 box Hex Bolt (1 Piece) - Page 4 HARDWARE IDENTIFIER 3/8”-16 Nylon Insert Locknut 3/8” X 19mm Flat Washer (4 Pieces) (4 pieces) Hardware required for rim assembly 3/8”-16 1/2”-13 x 11” Nylon Insert Locknut 3/8” X 19mm Flat Washer (4 Pieces) (8 pieces) 3/8”-16 X 1-1/4” Hex Bolt (4 Pieces) 1/2”...
- Page 5 Vertical main post assembly is a two part process. PART 1 PART 2 Day 1. Complete Anchor System Installation Instructions. Day 5. Complete Goalrilla assembly instructions. (Requires (Below) four adults) Day 2-4. Allow concrete to cure. ANCHOR SYSTEM INSTALLATION INSTRUCTIONS (Day 1)
- Page 6 ASSEMBLY INSTRUCTIONS (Day 5) GOALRILLA TOOLS REQUIRED FOR THE FOLLOWING STEPS 1 - 15/16" open end wrench 1 - Level 1 - 15/16” socket and ratchet (optional) 1 - Tape Measure 1 - 9/16” Deep Well Socket & Ratchet 1 - Rubber Mallet 1 - 3/4”...
- Page 7 NOTE: All board arms are made of rectangular tubing. Tightening hardware too tight may damage tubing and make adjustment of system difficult. NOTE: Make sure “Goalrilla” lettering is right side up. Attach lower arm (#11) to Pole (#2), as Figure 5...
- Page 8 Attach Upper Arm (#6) to Pole (#2), as shown in Figure 7, using a bolt (#7), two flat washers (#3), four plastic washers (#5) and hex nut (#4). Note: Tighten bolts snug but, do not over tighten. Board Arms must pivot freely. If the two Tube Plugs (#9) are not already installed insert them into open ends of Upper Arm (#6).
- Page 9 Locate hardware needed to mount pole to anchor bolts. You will need, eight flat washers (#37), four lock washers (#36), four hex nuts (#35) and four thread protectors (#34). NOTE: Do not remove the nuts #35 you installed in step 2 (pg. 5). PLACING THE POST ON THE ANCHOR SYSTEM REQUIRES AT LEAST FOUR CAPABLE ADULTS.
- Page 10 Slide Actuator Handle (#42) onto shaft on the back of Actuator (#16). Line up hole in shaft with hole in Actuator Handle and insert Pull Pin (#41) to secure. Toaid in the assembly of the backboard lower the lower board arm (#11), by turning the Actuator Crank, until the lower arm makes contact with the Safety Stop.
- Page 11 ATTACHING BACKBOARD TO BOARD ARMS REQUIRES AT LEAST FIVE CAPABLE ADULTS. HANDLE BACKBOARD WITH CARE, IT IS A GLASS PRODUCT . ALWAYS WEAR SAFETY GLASSES AND GLOVES WHEN HANDLING GLASS. 3 20 Figure 10 20 3 Note: Be sure to install board arms to the OUTSIDE of tube as shown.
- Page 12 Mount Goal Assembly (#28) to Backboard, as shown in Figure 11, using four bolts (#29), four washers (#26), and four locknuts (#33). Tighten fasteners, but leave them loose enough to level rim. Place a level across rim assembly and adjust rim until it is level.
- Page 13 Raise Backboard to 10 FT. regulation playing height. Measure from top of rim straight down to the playing surface. Using tape - mark the side of the steel actuator (#16) just under the plastic actuator sleeve (#15) at this 10 ft rim height. See Figure 13. Lower backboard all the way down.
-
Page 14: Care And Maintenance
To ensure ease of operation, lubricate all pivot points at least every 6 months or as needed with a good lubricant such as WD-40. RUST , remove loose paint, sand lightly, primer and paint with exterior flat matte finish Inspect your pole periodically, if rust should appear enamel paint. B3200W PARTS LIST Key# Part # Description Qty. - Page 15 3 20 20 3 2L-7164-05...
- Page 16 2L-7164-05...
-
Page 17: Limited Lifetime Warranty
Subject to proper installation and normal Residential use, Escalade Sports warrants, subject to the limitations below, to the original retail purchaser all structural components of the Goalrilla™ System to be free of defects in material and workmanship for the duration of ownership by the original retail purchaser.
