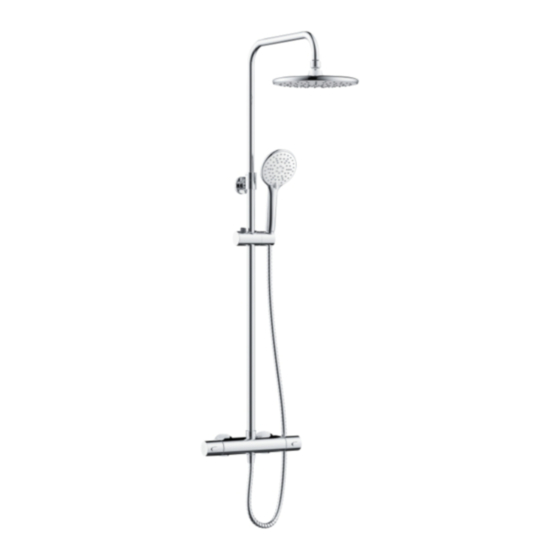

Bristan BUZ2 SHXDIVCTFF C (D4) Installation Instructions & User Manual

Specifications
Cold Water Supply
Working Pressures
Max: 5.0 bar
Min: 1.0 bar
3.0
2.0 3.0
2.0
4.0
1.0 4.0
1.0
Min: 5°C Max: 25°C
0.2 5.0
0.2 5.0
Pressure Pressure
BAR BAR
Factory pre-set
Maximum Static Pressure: 10.0 bar 38°C
Tools You'll Need
Flat Head Screwdriver Drill Cross Head Screwdriver
Prior to Installation
All products manufactured and supplied by Bristan are safe to use
provided that they are installed, operated and receive regular
maintenance in accordance with these instructions.
This product needs to be installed in accordance with, and meet the
requirements of the Water Supply (Water Fittings) Regulations 1999
and current by-laws. For full Installation Requirements & Notes (IRN)
please visit wras.co.uk/directory.
Isolation valves must be fitted to the inlet water supplies to ensure ease
of future maintenance. Before installing this product the water supply
must be thoroughly flushed in order to remove any swarf, solder etc.
Full access must be made available for future maintenance/
servicing purposes.
Before drilling into walls, check that there are no hidden electrical
wires, cables or water supply pipes. This can be checked with the
aid of an electronic detector.
If power tools are used do not forget to:
- Wear eye protection
- Unplug equipment after use
This product must not be modified in any way
as this will invalidate the guarantee.
If in doubt, contact a registered plumber, your Local Water
Authority or the Secretary of the Institute of Plumbing,
address as follows:-
The Institute of Plumbing,
64 Station Lane,
Hornchurch,
Essex,
RM12 6NB, Tel: 01708 472791
Installation Instructions
& User Guide
Please leave these instructions
with the end user
Product Code: BUZ2 SHXDIVCTFF C (D4)
Inlet Water Temperature Inlet Dimensions
Hot Water Supply
65°C
25°C
60°C
5°C
60-65°C Recommended
IMPORTANT
The inlet hot water must
be at least 10°C above the
required blend temperature.
Spanner Pipe Cutter Hexagonal Keys Safety Glasses
Pack Contents
x1
x1
x2
x2
x1
x2
x1
x1
x1
x1
x1
x2
x1
x2
x2
x2
x2
x8
x2
x8
Installation
1
Identify the
required position of
the valve and prepare
the water supply pipes.
Supply pipes should be
150mm apart.
Using the backplate
supplied with the
wallmount, mark and
150mm
drill holes.
Centres
3
Inlet Connections
1/2"
Compression
Secure the isolator
onto the backplate
ensuring the olive is
positioned over the
pipework correctly.
Isolation
Detector
1
Remove the
concealing cap
from the shroud.
x1
Slide the
bracket onto the
riser rail, then
push the riser
extension into
the riser rail.
Press & hold
knob on the
bracket to slide
up or down.
x1
Secure the
bracket to
the wall.
2
Secure the rubber backplate
and backplate into place.
4 5
Push shrouds to the back
of the wall outlet, securing
them against the rubber
fixing plate
2
Rotate the
shroud until
To reduce the build up of limescale
the opening
and to ensure this shower works to
aligns with the
its maximum performance we
isolation screw.
recommend this shower is serviced
Turn the screw to isolate the water. every 6-12 months depending on the
Reverse the process when turning hardness of your water.
the water back on.
Tighten nut to
secure riser.
To adjust the
height unscrew
the nut and
move the pole
to the desired
height. Tighten
nut again to
secure in place.
Secure the riser
bracket and riser
To adjust height of head, slide the riser
rail.
to desired height (see step 2).
Insert filter washer and
secure the shower to
the wall mount.
Using a spirit level
to ensure the
riser is positioned
correctly, use
the assembled
riser to mark the
desired position
of the bracket.
Attach the fixed head.
