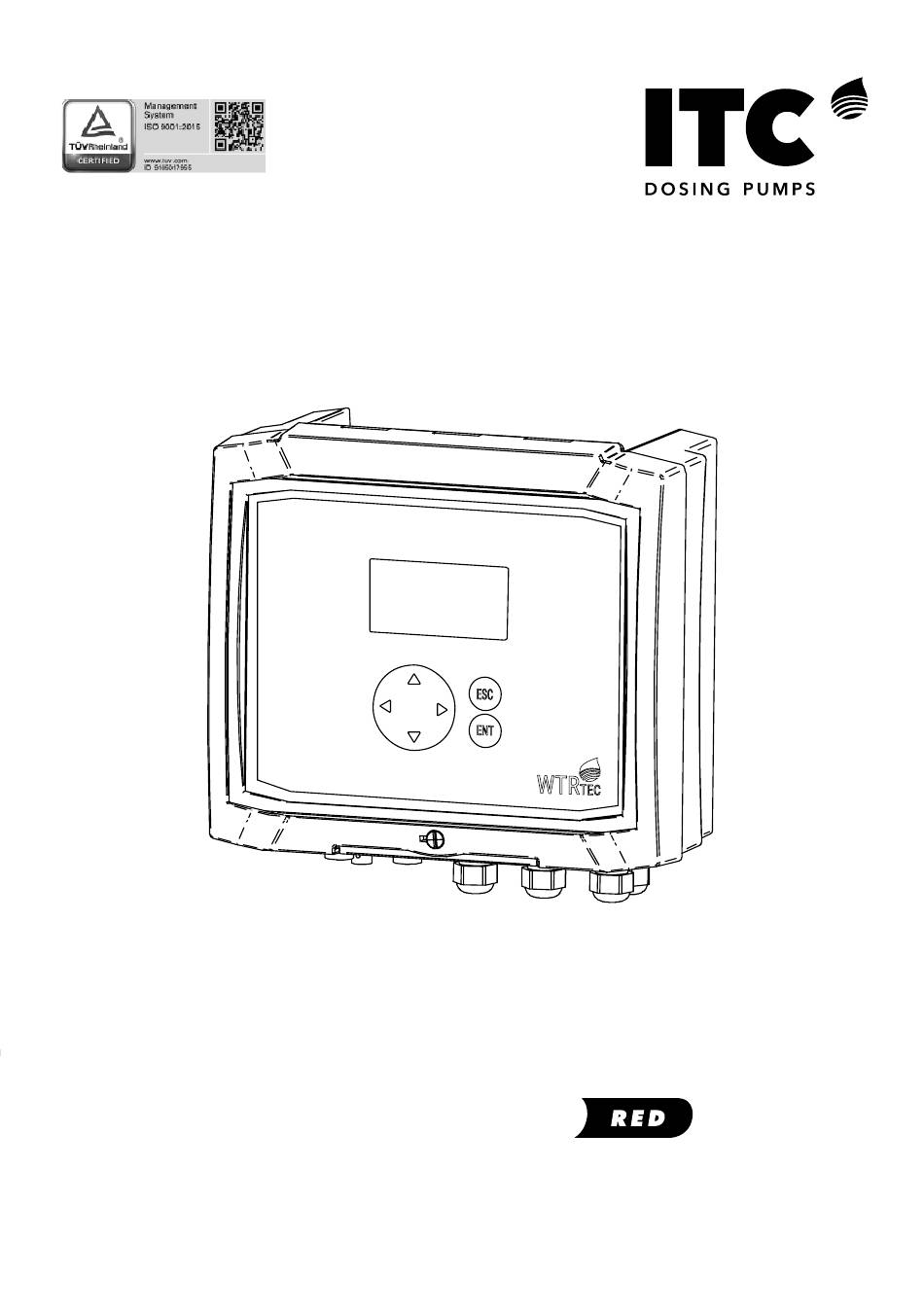

  • Page 1 ENGLISH...

  • Page 2: Table Of Contents

    CONTENTS 1. GENERAL DESCRIPTION 2. TRANSPORT AND HANDLING 3. TECHNICAL SPECIFICATIONS 4. OPERATION 4.1 Main screen and navigation 4.2 Setpoint configuration 4.3 Calibration 4.3.1 pH calibration 4.3.2 Flow rate calibration 4.4 Control configuration 4.4.1 Activation of the control 4.4.2 Advanced control configuration. PIQ control 4.5 Alarms 4.5.1 pH alarms 4.5.2 Zero flow alarm...
  • Page 3 6. START UP AND ADJUSTMENT 7. MAINTENANCE CE DECLARATION OF CONFORMITY WARRANTY SAFETY INSTRUCTIONS To avoid personal injury risks and damage to the environment, and to ensure proper equipment operation, personnel responsible for installing, commissioning and maintaining the equipment must follow the instructions in this manual, with special attention to the detailed recommendations and warnings.

  • Page 4: General Description

    Product description 1. GENERAL DESCRIPTION Red is a high-precision pH controller that at the same time is simple to install and operate. Specially designed for in-line or in-tank regulating processes, where pH adjustment with acid or with base is needed, and for neutralisation processes using acid and base. The controller has two analogue (4-20 mA) and digital (relay) control outputs for acid and/or base dosing pumps.

  • Page 5: Technical Specifications

    Product description 3. TECHNICAL SPECIFICATIONS Power supply: 100-240 V 50-60 Hz. 10.8-14.4 VDC Power: 6 W IP65 protection Housing material: ABS Working temperature: 0 - 45 °C / 32 - 113 °F Maximum relative humidity: 95% without condensation Inputs Flow meter 0.00-9999 m3/h / gph NPN isolated Flow meter (power supply)

  • Page 6: Operation

    Configuration 4. OPERATION 4.1 Main screen and navigation Regulating Regulating Confirm output 1 output 2 ACID ALK. Exit without confirming Increase / decrease value, 10.5 and move up /down Move left / right Flow rate reading Warnings on the main screen: Flashing reading: pH alarm ACID ALK.

  • Page 7: Setpoint Configuration

    Configuration 4.2 Setpoint configuration Setting the desired values for pH for the two control channels by reference values or setpoints for alarm. To enter the setpoint: 07.00 change the value with the up/down CONTROL arrows and confirm with ENT ALARM REGISTER 4.3 Calibration Calibration of the sensors used for pH and flow rate.

  • Page 8: Control Configuration

    Configuration - K (l/p): This type of flow meter requires entry of the configuration value the manufacturer indicates in litres/pulse. - Time Q=0: In these flow meters, which calculate the flow rate from the time between two consecutive pulses, a wait time from which the flow rate is considered to be zero needs to be defined.

  • Page 9: Advanced Control Configuration. Piq Control

    Configuration which the output will be ON for the proportional part of the time corresponding to the regulating output. Salida al 100% Salida al 25% 5’ 5’ 10’ 10’ - Limit out: If a 4-20 mA output is used, this parameter allows you to limit the output value so as to limit the maximum dosing pump flow rate.
  • Page 10 Configuration Example: For a flow rate of 200,000 l/h of water and a PpH = 1, proportional dosing of acid will be: (1 / 100,000) x 200,000 l/h = 2 l/h The proportion needed to achieve a specific pH will depend not only on its nature and concentration, but also on the nature of the water to be treated and the rest of the dosed products that can influence this parameter.

  • Page 11: Alarms

    Configuration Bear in mind that if there are any filters between the injection point and the sensor, the calculation of 10 metres x 1 m/s = 10 seconds will no longer be valid. 4.5 Alarms 4.5.1 pH alarms To set the alarms, enter the upper and lower tolerance values with respect to the value entered as the setpoint and the time from which, with the reading outside tolerance range, the alarm must be activated.

  • Page 12: Configuration Of The Register Outputs

    Configuration Q ALARM DET 0.20 % Q = 0 200 s CONTROL ALARM Reset: N ALARM DETECTOR Stop: None REGISTER Reset: enables automatic alarm reset when the reading is back within the permissible values. Stop: enables the dosing control outputs to be shut down. 4.6 Configuration of the register outputs If any of the 4-20 mA analogue control outputs is unused, these can be used to be configured as outputs for logging any sensor readings.

  • Page 13: Communications Settings

    Configuration - Units: Enables selection of the working units for the flow rate (litres or gallons) and temperature (Celsius or Fahrenheit) - pH Control: Enables selection of whether the pH control is performed with an acid or a base and, in case of neutralisation, enables specification of which channel the acid and base are on - Temp.

  • Page 14: Installation

    Installation 5. INSTALLATION A place protected from water, away from heat and direct sunlight must be chosen for installation. 5.1. Installation diagram In-line pH control ºC 21.0 10.5 ACID BASE Device Mixer In-tank pH control ºC 21.0 10.5 ACID BASE...

  • Page 15: Wiring

    4-20 mA output. Output 2. 12 V power supply Temperature sensor input PT100. Remote ON/OFF input (can be activated with 12-24 V Temperature sensor input NTC (ITC EC sensor). AC/DC pH alarm output. Relay Flow detector input. Flow rate alarm output. Relay Input for pH sensor (BNC connector) Control relay output.

  • Page 16: Remote Start/Stop Activation

    Installation 5.3. Remote start/stop activation 100-240 V AC power supply - External voltage-free signal - External 12-24 V signal AC/DC 100-240V AC 230V 12-24V AC/DC 12-24 V DC power supply - External voltage-free signal - External 12-24 V signal AC/DC 12V DC (IN) 12V DC (IN) 12-24V AC/DC...
  • Page 17 Maintenance 7. MAINTENANCE 45602 45603 45604 40604 45606 45607 44619 45606...
  • Page 18 Maintenance SPARE PARTS CODE DESCRIPTION QUANTITY 45602 WTRTec display 45603 Display cable 45604 Ferrite 45606 Female angled terminal strip, 3 pins, 3.81 pitch, black 45607 Female angled terminal strip, 4 pins, 3.81 pitch, black 44619 Female angled terminal strip, 3 pins, 5 pitch 40604 Female angled terminal strip, 6 pins, 5 pitch 45605...
  • Page 19 CE DECLARATION OF CONFORMITY I.T.C. S.L. Vallès, 26 Polígono Industrial Can Bernades-Subirà 08130 Santa Perpètua de Mogoda Declares that the WTR products identified by serial number and year of manufacture meet the requirements of the Low Voltage Directive 2014/35/EU and the Electromagnetic Compatibility Directive 2014/30/EU, provided that installation, use and maintenance are carried out in accordance with current regulations and according to the instructions in the instruction manual.
  • Page 20 Original Manual Ed: 6/3/2020-EN C/ Vallès, 26 Pol. Ind. Can Bernades - Subirà P.O. Box 60 08130 Santa Perpètua de Mogoda BARCELONA, SPAIN Tel. +34 93 5443040 Fax +34 93 5443161 e-mail: itc@itc.es www.itc-dosing-pumps.com...
