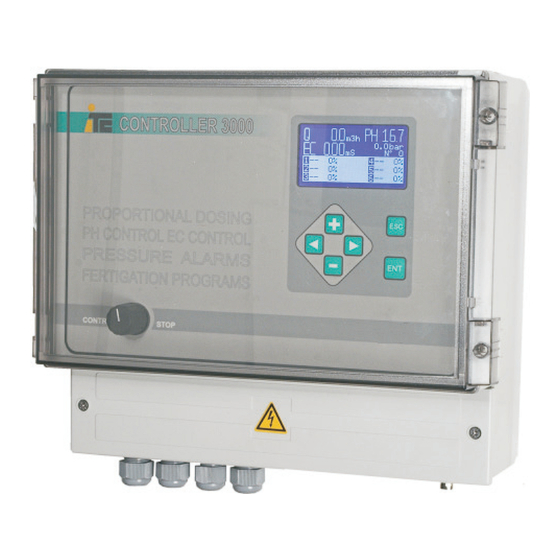

WATER CONTROLLER 3000
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WATER CONTROLLER 3000 and is the answer not in the manual?

Questions and answers

Related Manuals for ITC WATER CONTROLLER 3000

Summary of Contents for ITC WATER CONTROLLER 3000

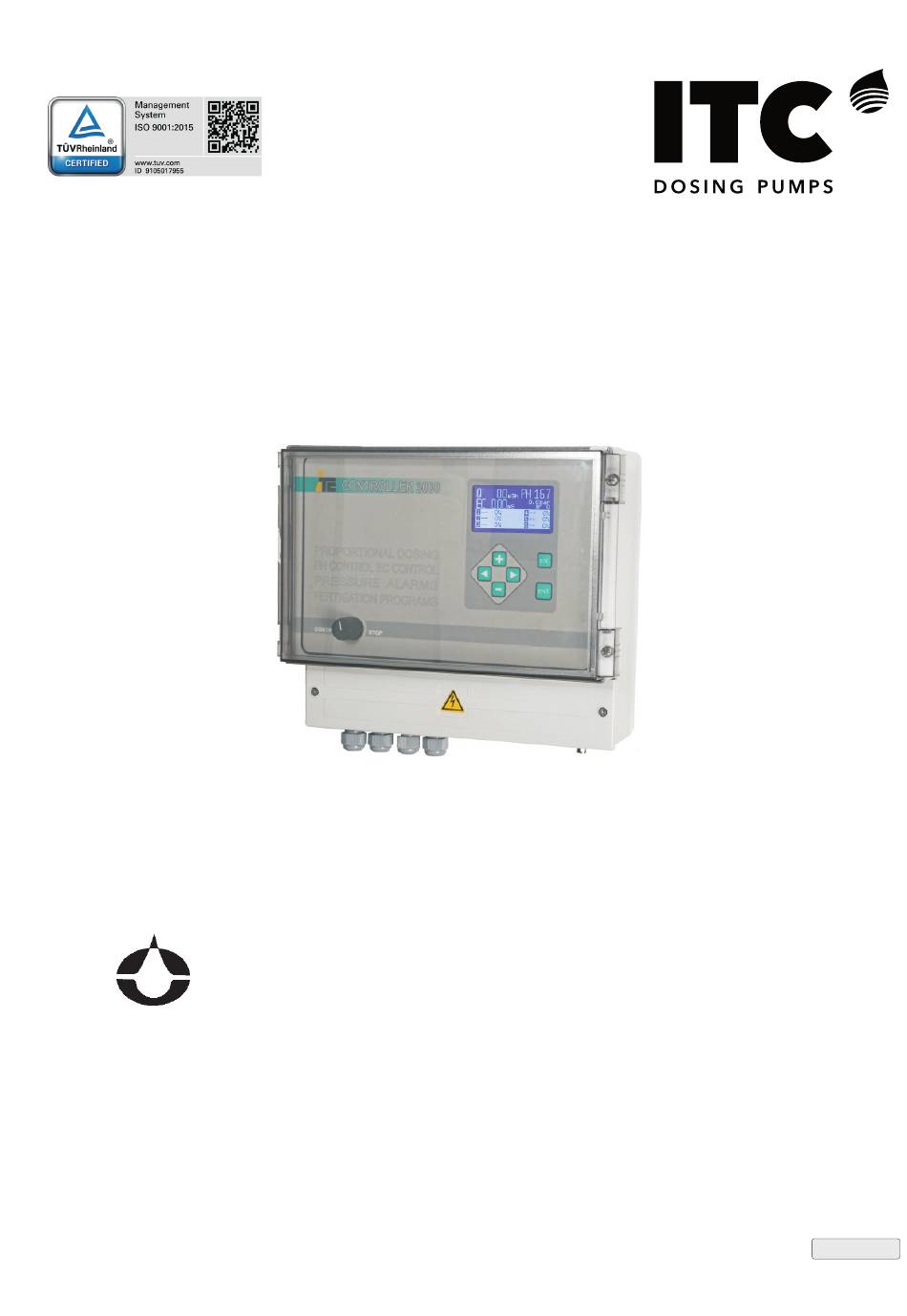

  • Page 1 WATER CONTROLLER 3000 ENGLISH...
  • Page 3 1.1 Equipment description 1.2 Console description 1.3 Menu scheme 1.4 Fertirrigation menus 1.5 RS-485 communication port 2. INSTALLATION 2.1 Water Controller 3000 installation 2.2 Hydraulic scheme 2.3 Electric scheme 3. CONFIGURATION 3.1 SET UP 3.2 Irrigation pumps set up 3.3 Filters set up 3.4 Mixers set up...

  • Page 4: General Description

    Fertigation control by means of 48 programs, which can be linked to the watering programs. The PIQ algorithm developed by ITC, can control the addition of 6 different products proportionally to water flow and simultaneously according to EC and pH set points.
  • Page 5 1. GENERAL DESCRIPTION. WATER CONTROLLER 3000 1.3 MENU SCHEME MAIN SCREEN 60" without pressing any key 5.4bar EC 1.5mS PH 7.5 Start:12:45 00:45 12:55Tu (AC) IRRIGATION FERTIRRIGACIÓN W09 F02 5.4bar 1.05 5.4bar Fr Sa Su Start:12:45 00:45 01 02 05 06 08 22...

  • Page 6: Rs-485 Communication Port

    1. GENERAL DESCRIPTION. WATER CONTROLLER 3000 1.4. FERTIRRIGATION MENUS Readings Screen with Readings Screen with Menus Display Outputs Display 1.05 1.05 5.4bar 5.4bar CONT PROG HIST Water Flow Reading EC Reading PH Control Channel PH Reading Pressure Reading 1.05 5.4bar...

  • Page 7: Installation

    2. INSTALLATION WATER CONTROLLER 3000 2. INSTALLATION 2.1 WATER CONTROLLER 3000 INSTALLATION Console Module 1 Module 2 Module 3 Module 4 Output 1 ... 24 Output 25 ... 48 Output 49 ... 72 Output 73 ... 96 WATER 3000 module...

  • Page 8: Hydraulic Scheme

    2. INSTALLATION WATER CONTROLLER 3000 2.2 HYDRAULIC SCHEME FREQUENCY VARIATOR - INVERTER WATER 3000 module MOTOR MOTOR MOTOR MOTOR SMART DROP TECHNOLOGY VENT VENT VENT VENT INJECTION PIPE: 0 - 10 meters INJECTION PIPE: 0 - 2 meters Flow Inner...

  • Page 9: Electric Scheme

    2. INSTALLATION WATER CONTROLLER 3000 2.3 ELECTRIC SCHEME FREQUENCY REGULATORS - INVERTERS WATER 3000 module MOTOR VENT SMART DROP TECHNOLOGY 230V 230V 24V AC MOTOR VENT MOTOR VENT MOTOR VENT 2x1,5mm VENT. 3x1,5mm +1,5mm +1,5mm 230V 230V 230V 9 10...
  • Page 10 3. CONFIGURATION. WATER CONTROLLER 3000 3. CONFIGURATION 3.1. SET UP SET UP menu W09 F02 W09 F02 W09 F02 5.4bar 5.4bar 5.4bar Fr Sa Su Fr Sa Su Start:12:45 00:45 00:45 Start:12:45 EC 1.5mS PH 7.5 01 02 05 06 08 10 25 26...
  • Page 11 3. CONFIGURATION. WATER CONTROLLER 3000 3.3. FILTERS SETUP FILTERS menu FILTER CLEANING CONFIG CONFIG CONFIG STOP WATERING: NO PUMPS PUMPS WHILE WATERING: YES PUMPS FILTERS OUT: FILTERS MIXERS FREQ.: 00:00 MIXERS EXPRESS PROGRAM CLEAN: 60 s EXPRESS PROGRAM WATERING FACTOR...
  • Page 12 3. CONFIGURATION. WATER CONTROLLER 3000 Activation mode of a mixer MIXERS 1. -- - - - - - - -: - - 2. 12 MAN - - - -: - - 3. 15 PRE 01 - -: - - 4. 16 CON - - - -: - - 5.

  • Page 13: Irrigation Program

    3. CONFIGURATION. WATER CONTROLLER 3000 6. W ATERING FACTOR WATERING FACTOR menu allows to increase or decrease proportionally all the irrigation time of all the programs. Pre-irrigation time and post-irrigation time are not afected by watering factor. CONFIG CONFIG CONFIG...
  • Page 14 3. CONFIGURATION. WATER CONTROLLER 3000 4.- START: time of irrigation start When an irrigation program starts, and two or more programs should be activated, the program with lowest number has priority. Start times screen to configure up to 15 daily start up.
  • Page 15 3. CONFIGURATION WATER CONTROLLER 3000 3.8 FERTIRRIGATION 3.8.1 CALIBRATION MENU To Calibrate, set the switch to STOP PUMP 1.05 1.05 5.4bar 5.4bar CONT PRES HIST PROG TIME 3.8.1.1 DOSING PUMPS CONFIGURATION Dosing Pump Rated Flow PUMP PUMP 200 L / H...
  • Page 16 3. CONFIGURATION WATER CONTROLLER 3000 3.8.1.2 FLOWMETER CALIBRATION PUMP 1.05 1.05 5.4bar 5.4bar Units: Qtype: HIGH CONT PRES K-Factor: 2.00 PROG HIST TIME Change Units by pressing +/- and validate by ENT: m3h: Water Flow in m3/h Units: m3h Units: m3h...
  • Page 17 3. CONFIGURATION WATER CONTROLLER 3000 3.8.1.3.2. PH SENSOR CALIBRATION PUMP 1.05 1.05 5.4bar 5.4bar CONT PRES PROG HIST TIME Introduce the PH CALIBRATION PUMP Sensor in the Buffer WAIT SAMPLE PH = 7 of pH7, press ENT 100% PRES PRESS ENT. WAIT...
  • Page 18 3. CONFIGURATION WATER CONTROLLER 3000 3.8.2. ALARMS 3.6.2.1 PH ALARM 1.05 1.05 5.4bar 1.05 5.4bar 5.4bar CONT CONT HIST PROG PROG HIST Differential ALM PH Time PH+ 0.0 ----- s Reset PH - 0.0 ----- s PRES REARM: Stop STOP:...
  • Page 19 3. CONFIGURATION WATER CONTROLLER 3000 3.8.2.3 PRESSURE ALARM 1.05 1.05 1.05 5.4bar 5.4bar 5.4bar CONT CONT PROG HIST PROG HIST PRES M AX 0.0 ----- s M I N 0.0 ----- s PRES PRES STOP: Change Units by pressing +/- and validate by ENT:...
  • Page 20 3. CONFIGURATION WATER CONTROLLER 3000 3.8.3 ADVANCED CONTROL OPTIONS. 3.8.3.1. REMOTE CONTROL: CONFIGURATION CHANNELS A/B. Configuration from channels A and B. INPUT A START INPUT B START B 1.05 1.05 5.4bar 1.05 5.4bar OUTPUTS 5.4bar Qtest = 0 CONT CONT...
  • Page 21 3. CONFIGURATION WATER CONTROLLER 3000 3.8.3.3 CONFIGURATION FOR A pH CONTROL IN PIQ MODE (PPH) INPUT A START A 1.05 INPUT B START B 1.05 1.05 5.4bar 5.4bar 5.4bar OUTPUTS Qtest = 0 CONT CONT A Tdelay PROG HIST PROG...
  • Page 22 3. CONFIGURATION WATER CONTROLLER 3000 3.8.3.4 CONFIGURATION FOR A EC CONTROL IN PIQ MODE (PEC) INPUT A START A INPUT B START B 1.05 1.05 1.05 5.4bar 5.4bar 5.4bar OUTPUTS Qtest = 0 CONT CONT A Tdelay PROG HIST PROG...

  • Page 23: Advanced Set Up Options

    3. CONFIGURATION WATER CONTROLLER 3000 3.8.4. ADVANCED SET UP OPTIONS. 3.8.4.1. ADVANCED CONFIGURATION OF PI CONTROL PARAMETERS PH+ 0.0 ----- s PH - 0.0 ----- s REARM: STOP: 1.05 5.4bar 1.05 1.05 5.4bar 5.4bar CONT CONT PROG HIST PROG HIST...

  • Page 24: Control Modes

    3. CONFIGURATION. WATER CONTROLLER 3000 3.8.5. CONTROL MODES 1.05 1.05 1.05 5.4bar 5.4bar 5.4bar CONT CONT PROG HIST PROG HIST Program number Virtual EC set point (reference value for the EC alarm when proportional dosing) PROG: 1 ----- 0.550 Remote Control Channel...
  • Page 25 4. PROGRAMATION. WATER CONTROLLER 3000 4. PROGRAMATION 4.1 EXAMPLES OF IRRIGATION PROGRAM EXAMPLE 1: Instalation with 2 pumps, 2 filters, 3 programs, 24 outputs - 3 irrigation programs - Reset Time: at 00:00 all the programs not activated yet are reset.
  • Page 26 4. PROGRAMATION. WATER CONTROLLER 3000 EXAMPLE 2: Instalation with 2 water pumps, 4 filters, 48 outputs (2 modules Water 3000), water counter. - 4 irrigation programs - Reset Time: at 07:30 all the programs not activated are reset. - Water counter of 1000 liters/pulse, flow is 0 after 60 seconds without a pulse.
  • Page 27 4. PROGRAMATION. WATER CONTROLLER 3000 4.2. EXAMPLE: FERTIRRIGATION PROGRAM 1x Multifertic 2 heads with 2 servos, 2x Dostec, 1xDositec. Inverter Pumps configurationss PUMP ---- L / H 120 % 300 L / H 120 % 200 L / H 120 %...

  • Page 28: Operation

    5. OPERATION. WATER CONTROLLER 3000 5. OPERATION 5.1. SWITCH FUNCTIONS WATER CONTROLLER 3000 SWITCH RUN W+F : Water+Fertirrigation RUN W: Water(calibration) STOP (calibration) Options selectable from the Switch: STOP (calibration): Stops irrigation and fertigation. When selecting another position of the switch irrigation continues from the program that was stopped.
  • Page 29 5. OPERATION. WATER CONTROLLER 3000 5.3. MANUAL ACTIVATION OF IRRIGATION PROGRAM MANUAL menu. W09 F02 W09 F02 W09 F02 5.4bar 5.4bar 5.4bar F S S F S S Start:12:45 00:45 Start:12:45 00:45 EC 1.5mS PH 7.5 01 02 05 06 08 10 11 13...

  • Page 30: Technical Features

    Modules: Up to 4 modules of 24 outputs each. Inputs: Pulse input flow optically insulated for high-frequency flowmeters (pallets or electromagnetic) EC: Input optically insulated for ITC conductivity sensor PH: Input optically insulated for connecting a pH sensor Pressure: 4-20mA analogue input for a pressure transmitter Module 1, Input 2: Activates filters cleaning by a switch.
  • Page 31 6. TECHNICAL FEATURES WATER CONTROLLER 3000 DIMENSIONS 160* 90** *Water Controller 3000-2: 118 mm **Water Controller 3000-2: 48 mm ***Water Controller 3000-2: 255 mm ****Water Controller 3000-2: 210 mm USER'S MANUAL...

  • Page 32: Maintenance

    7. MAINTENANCE WATER CONTROLLER 3000 7. MAINTENANCE 40100 40600 220V-24Vac 40621 42350 33503 33503 40622 1 2 3 4 40621 1 2 3 4 24Vac RS-485 P+ P- Ref: 40662 10 11 12 13 14 15 16 17 18 19 20 21 22 23...
  • Page 33 6. MAINTENANCE. WATER CONTROLLER 3000 CONTROLLER 3000 TRANSPARENT PROPORTIONAL DOSING 40614 PH CONTROL EC CONTROL PRESSURE ALARMS FERTIGATION PROGRAMS CONTROL FORAT STOP RCP/PCPM 3500 SMART DROP TECHNOLOGY 25304 25108 RS-485 Switch 40613 FIBOX EURONORD II 230X300x55 BASE 40-636 BROWN MARRON...
  • Page 34 Manual. Anton Planas General Manager ITC warranties the Product specified in this Document for 1 year period from the Purchase Date, against any manufacture or material Defect, and as long as the Installation, Use and Maintenance have been correct.
  • Page 36 Original manual Ed: 08/05/2019 - EN C/ Vallès, 26 Pol. Ind. Can Bernades - Subirà P.O. Box 60 08130 Santa Perpètua de Mogoda BARCELONA Tel. 93 544 30 40 Fax 93 544 31 61 e-mail: itc@itc.es www.itc-dosing-pumps.com...
