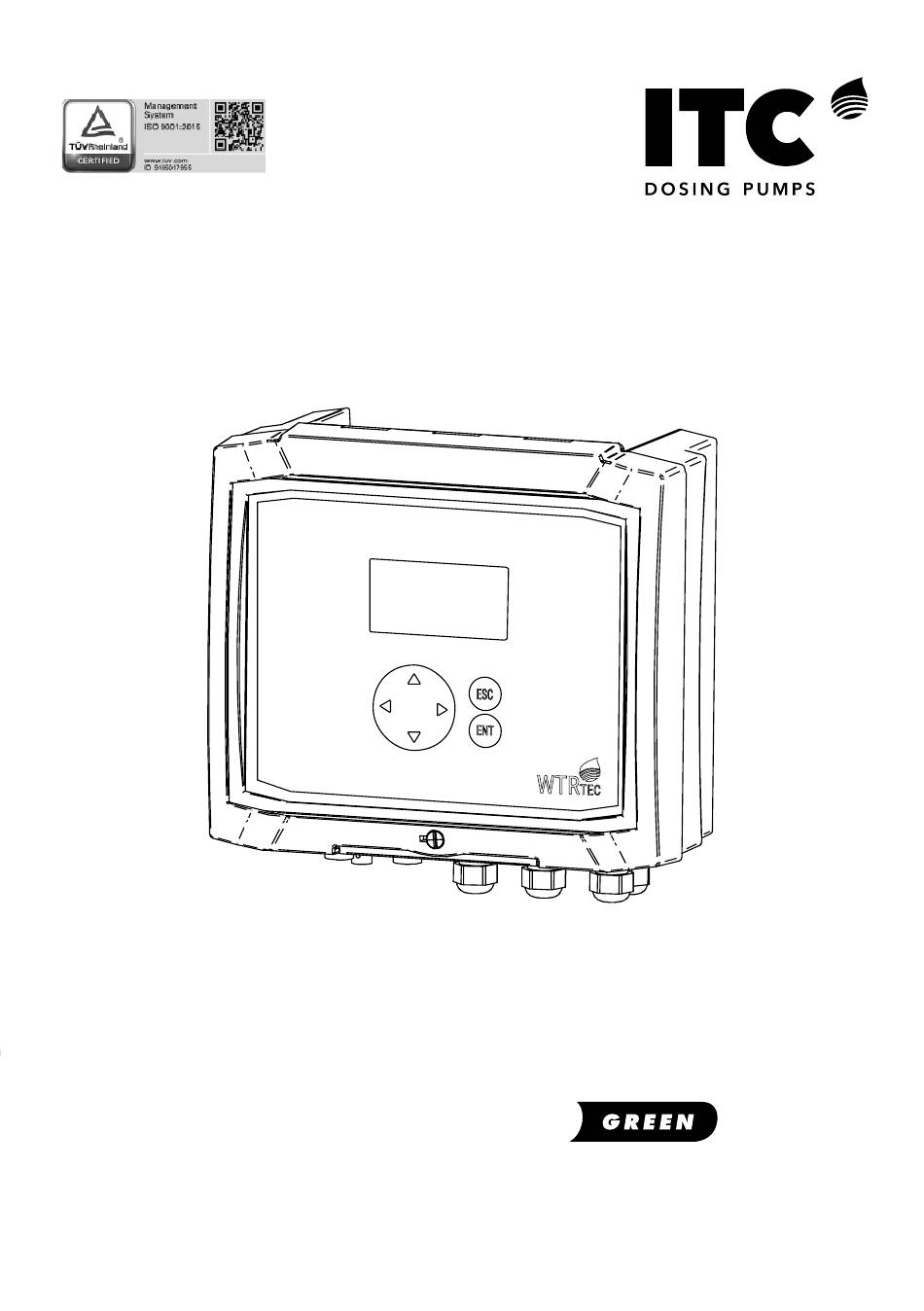

- Page 1 ENGLISH...
-
Page 2: Table Of Contents
CONTENTS 1. GENERAL DESCRIPTION 2. TRANSPORT AND HANDLING 3. TECHNICAL SPECIFICATIONS 4. OPERATION 4.1 Main screen and navigation 4.2 Setpoint configuration 4.3 Calibration 4.3.1 EC calibration 4.3.2 pH calibration 4.3.3 Flow rate calibration 4.4 Control configuration 4.4.1. Activation of the control 4.4.2. - Page 3 6. START UP AND ADJUSTMENT 7. MAINTENANCE CE DECLARATION OF CONFORMITY WARRANTY SAFETY INSTRUCTIONS To avoid personal injury risks and damage to the environment, and to ensure proper equipment operation, personnel responsible for installing, commissioning and maintaining the equipment must follow the instructions in this manual, with special attention to the detailed recommendations and warnings.
-
Page 4: General Description
Product description 1. GENERAL DESCRIPTION Green is a high-precision pH, conductivity and proportional dosing controller that at the same time is simple to install and operate. It is specially designed for processes such as fertigation, where correction of pH and EC is needed. The WTR controller enables monitoring of flow, pH and EC, as well as their adjustment through analogue and digital control outputs for dosing pumps. -
Page 5: Technical Specifications
Product description 3. TECHNICAL SPECIFICATIONS Power supply: 100-240 V 50-60 Hz. 10.8-14.4 VDC Power: 6 W IP65 protection Housing material: ABS Working temperature: 0 - 45 °C / 32 - 113 °F Maximum relative humidity: 95% without condensation Inputs Flow meter 0.00-9999 m3/h / gph NPN isolated Flow meter (power supply) -
Page 6: Operation
Configuration 4. OPERATION 4.1 Main screen and navigation Control Control parameter 1 Confirm parameter 2 EC (or flow Exit without rate) confirming Regulation Increase / decrease value, output and move up /down ºC 21.0 10.5 Move left / right Flow rate (or EC) reading Temperature Warnings on the main screen: Flashing reading: parameter alarm... -
Page 7: Setpoint Configuration
Configuration 4.2 Setpoint configuration Configuration of the desired EC, pH or % values for the two channels for control through values or setpoints. Choose the control parameter for channel 1 between dosing by EC setpoint (mS) or by proportionality value (%) of the product to be dosed with the irrigation water. Parameter selection is performed by activating the control through the selected parameter’s Control menu. -
Page 8: Ph Calibration
Configuration 4.3.2 pH calibration PH CAL. PH CAL. 07.00 Point 1 07.00 Point 1 07.00 Point 2 04.00 Point 2 04.00 CONTROL ALARM Reading 07.23 Reading 07.23 REGISTER If necessary for pH calibration point 1, modify the buffer value using the up/down arrows. Insert the sensor into the point 1 buffer, wait until the sensor reading is stable and confirm with ENTER. -
Page 9: Control Configuration
Configuration 4.4 Control configuration 4.4.1. Activation of the control Activate control in the two parameters chosen for the regulation. EC CONTROL EC CONTROL 02.00 Control: CONTROL Out: 4-20 mA 2 CONTROL PI CONTROL Limit out: 080% ALARM Pump: 200 l/h REGISTER Q CONTROL 0.20 %... -
Page 10: Advanced Control Configuration. Pi Control
Configuration The regulating output will need to be selected for each control channel: - Out: Choose between the two 4-20 mA channels for analogue regulation or between the relay outputs for ON/ OFF regulation. Salida al 100% Salida al 25% 5’... - Page 11 Configuration of the EC reading, even with highly variable flow rates. PEC=0 PI control. PIQ control disabled. PEC= 0.01 - 2% Dosing will be proportional to the water flow at the % rate entered and with adjustment to setpoint through a PI algorithm. - PIQ (PpH): The PIQ control mode to adjust pH is a PI algorithm conditioned on the flow rate of water to be treated.
-
Page 12: Alarms
Configuration - Ki: Integral PI adjustment. This parameter acts on the accumulated error and enables reading stabilisation once the setpoint value has been achieved. It is only valid for in-line controls. For recirculating controls it must be Ki=0. - T delay (seconds): T delay is the time between two consecutive controller orders to position the regulating output. -
Page 13: Zero Flow Alarm
Configuration mS+ 2.00: the alarm is activated when EC ALARM the reading is 2.00 mS above the 02.00 mS + 2.00 025 s setpoint value for 25 seconds mS - 1.50 060 s mS - 1.5: the alarm is activated when CONTROL Reset: No ALARM... -
Page 14: Configuration Of The Register Outputs
Configuration Q ALARM DET 0.20 % Q = 0 200 s CONTROL ALARM Reset: N ALARM DETECTOR Stop: None REGISTER Reset: enables automatic alarm reset when the reading is back within the permissible values. Stop: enables the dosing control outputs to be shut down. 4.6 Configuration of the register outputs If any of the 4-20 mA analogue control outputs is unused, these can be used to be configured as outputs for logging any sensor readings. -
Page 15: Initial Configuration (Set Up)
To enable or disable the pH reading, or set the reading manually - Temp. Reading: To enable or disable the temperature reading, or fix a value manually. If using an ITC EC sensor, which includes an internal temperature sensor, the reading will be the measure by this sensor. -
Page 16: Information On The Unit And Monitor
Configuration 4.7.3 Information on the unit and monitor This screen displays information on the equipment and the raw value sensor, input and output readings. CONFIG INFO. UNIT > SENSORS > Serial No. 9999 mV pH -0.4 SET UP Soft. Vers. 1.07 Temp 24.1... -
Page 17: Installation
Installation 5. INSTALLATION A place protected from water, away from heat and direct sunlight must be chosen for installation. 5.1. Installation diagram In-line dosing ºC 21.0 10.5 Device Mixer Alternative system for obtaining a homogeneous mixture It must be ensured that the velocity in the branch of diameter d is the same or somewhat higher than that in the main pipe of diameter D. -
Page 18: Wiring
4-20 mA output. Output 2. 12 V power supply Temperature sensor input PT100. Remote ON/OFF input (can be activated Temperature sensor input NTC (ITC EC sensor). with 12-24 V Flow detector input. AC/DC pH alarm output. Relay Input for pH sensor (BNC connector) EC alarm output. -
Page 19: Remote Start/Stop Activation
Installation The probe cables must run through separate channelling. Must be fitted with a power supply circuit-breaking device according to the EN-60204-1 standard. A device for disconnection in case of emergency must be installed. The equipment must be protected to prevent abrupt starts 5.3. - Page 20 Installation 6. START UP AND ADJUSTMENT 1. Installation: Install the equipment and connect the pumps (see Installing and Wiring) 2. Equipment calibration and configuration: Calibrate the sensors (pH, flow meter, etc.) (see Calibration) Configure the equipment: - Setpoint - Type of control - Installation and equipment configurations 3.
- Page 21 Maintenance 7. MAINTENANCE 45602 45603 45604 40604 45606 45607 44619 45606...
- Page 22 Maintenance SPARE PARTS CODE DESCRIPTION QUANTITY 40604 Female angled terminal strip, 6 pins RDC06x 44604 Female angled terminal strip, 3 pins RDC03x 45602 WTRTec display 45603 Display cable 45604 Ferrite 45606 Female angled terminal strip, 3 pins, 3.81 pitch, black 45607 Female angled terminal strip, 4 pins, 3.81 pitch, black 44619...
- Page 23 CE DECLARATION OF CONFORMITY I.T.C. S.L. Vallès, 26 Polígono Industrial Can Bernades-Subirà 08130 Santa Perpètua de Mogoda Declares that the WTR products identified by serial number and year of manufacture meet the requirements of the Low Voltage Directive 2014/35/EU and the Electromagnetic Compatibility Directive 2014/30/EU, provided that installation, use and maintenance are carried out in accordance with current regulations and according to the instructions in the instruction manual.
- Page 24 Original Manual Ed: 6/3/2020-EN C/ Vallès, 26 Pol. Ind. Can Bernades - Subirà P.O. Box 60 08130 Santa Perpètua de Mogoda BARCELONA, SPAIN Tel. +34 93 5443040 Fax +34 93 5443161 e-mail: itc@itc.es www.itc-dosing-pumps.com...
