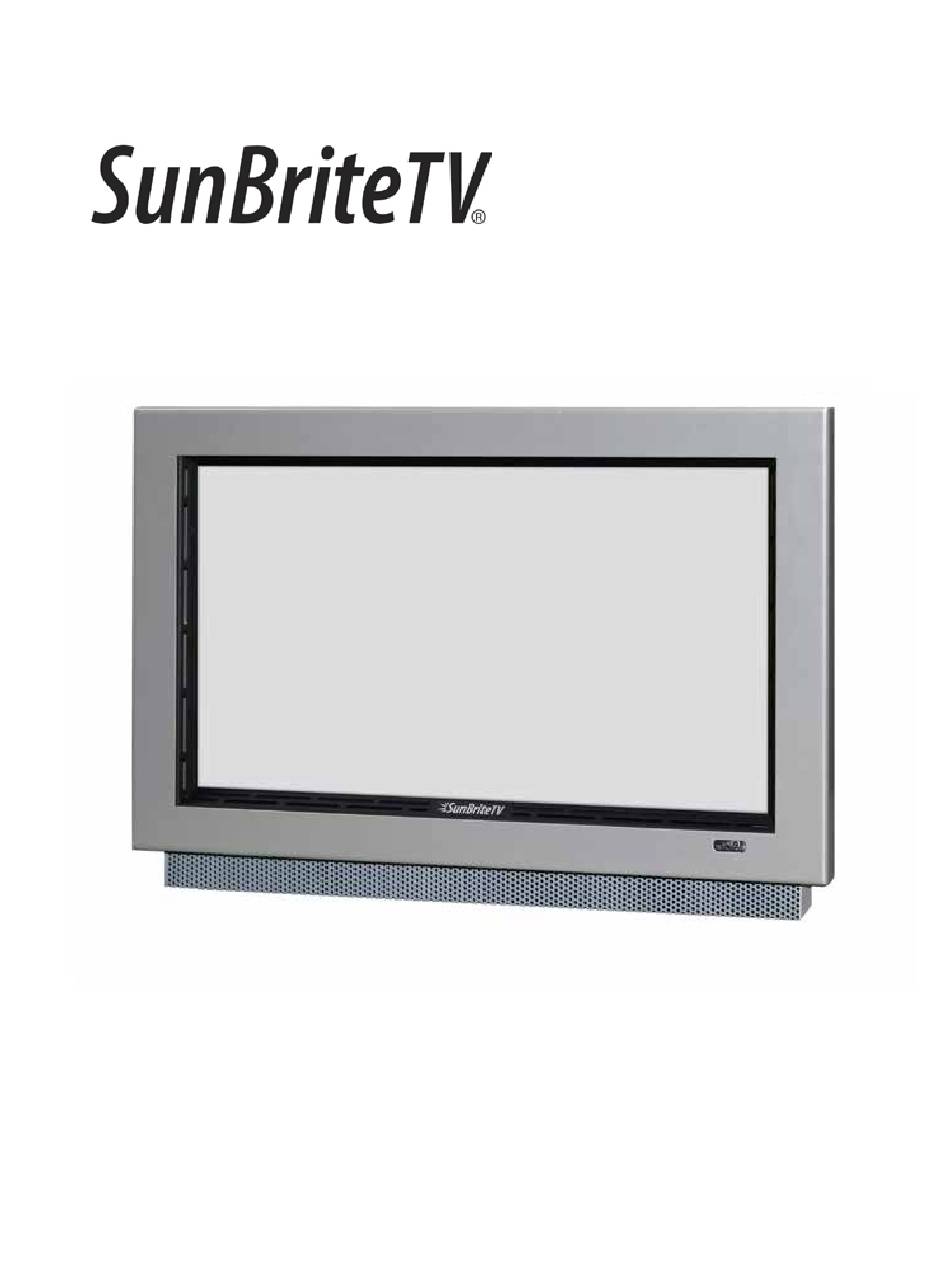

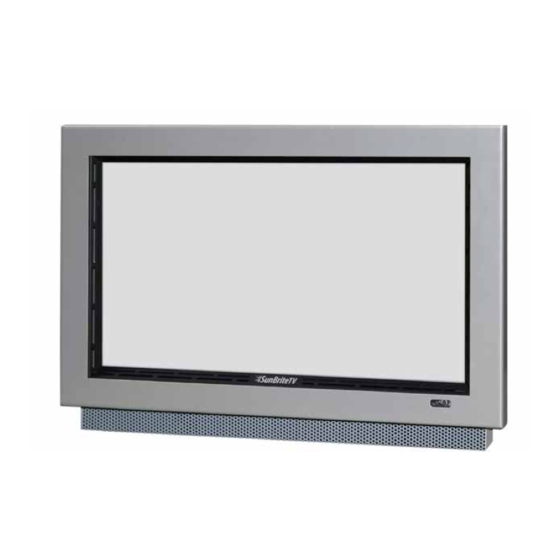

- Page 1 All-Weather Outdoor LCD Television Operator’s Manual Model SB-2220HD Rev. 2220HD-Rev318-120801 PN: M22-001-01...
-
Page 2: Important Safety Instructions
Electronic Industries Alliance: www.eia.org. Disclaimer: While SunBriteTV LLC intends to make this manual accurate and complete, we do not make claims that the information contained within covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. - Page 3 Power Source: SunBriteTV must operate on a power source indicated on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company. When using the TV outdoors, you must use a GFI- protected AC outlet with “in-use”...
- Page 4 However, it is not designed to withstand pressure washers, high-pressure water jets, or hurricane-type weather. Do not service SunBriteTV yourself: Removal of the television screen cover may expose you to high voltage or other dangerous risks. Refer all servicing to a qualified service professional. Warranty will not be honored if you service the unit yourself.
-
Page 5: Table Of Contents
Features Information and Instructions Extreme Climate Warning Programming Other Manufacturers’ Universal Remote Control Devices SunBriteTV Pixel Quality Policy Appendix A - RS232 Control Cable Pinout Appendix B - RS232 Control Codes SunBriteTV Model SB-2220HD Operator’s Manual Page 5 Page 5... -
Page 6: Supplied Accessories
Supplied Accessories Unpacking After unpacking the SunBriteTV television, please make sure that the following items are included in the carton and that they are in good condition. If items are damaged or missing, contact your dealer immediately. SunBriteTV LCD Television Model 2220HD Remote Control with Batteries Operator’s Manual... -
Page 7: Tv Installation
LCD panel, and will not cause damage to the screen. Either turn the screen away from the sun, or apply shade to the TV, and the dark areas will quickly disappear. SunBriteTV Model SB-2220HD Operator’s Manual Page 7... -
Page 8: Detachable Speaker Module Installation
TV Installation - Detachable Speaker Module Installation Removing the Detachable Speaker Module This model is shipped with the speaker module attached to the TV. Follow these instructions if, for any reason, you wish to remove the speaker module. Figure 1 Tools Needed: Phillips screwdriver, Plastic Plug that is packaged in the Operator’s Manual plastic envelope. -
Page 9: Rear Panel Internal Connect Source
Connect the power cord to a GFCI protected AC outlet with an “in-use” waterproof cover. WARNINg: TV AND gFCI RECEPTAClE MUST BE INSTAllED AT lEAST 5 FEET AWAY FROM STANDINg WATER , SUCH AS (BUT NOT lIMITED TO) A POOl OR SPA. SunBriteTV Model SB-2220HD Operator’s Manual Page 9 Page 9... -
Page 10: Rear Panel Connections
TV Installation – Rear Panel Connections SERVICE PORT - This USB Service Port is for factory service only...do not use. SERVICE PORT - This Service Port is for factory service only...do not use. HDMI 1 - Connects to devices that use HDMI cables such as Blu-ray or HD DVD player or HD cable / satellite set-top box. This connection port receives pure digital audio and high definition signal through one single cable. - Page 11 TV Installation – Rear Panel Connections Cable Descriptions: Connection Descriptions: Green Blue Yellow Green White SunBriteTV Model SB-2220HD Operator’s Manual Page 11...
- Page 12 TV Installation – Rear Panel Connections Switching Sources for Ports: This model offers several options when connecting your devices to the TV. The chart below will help you understand which source you switch to for each of the ports. CONNECTINg TO AN ANTENNA Connecting to Digital Cable without Cable Box or Antenna Connecting to Cable or Antenna 1.
- Page 13 If HDMI 1 is occupied, use HDMI 2 as your connection configured to output correctly to the TV. port. This TV will turn off automatically if there’s no signal present for more than 15 minutes. SunBriteTV Model SB-2220HD Operator’s Manual Page 13...
- Page 14 TV Installation – Rear Panel Connections CONNECTINg TO A DVD PlAYER (Continued) Connecting with S-Video (fair) Connecting with Composite (Fair) Make sure the power of the TV and your DVD player is Make sure the power of the TV and your DVD player is turned off.
- Page 15 TV. This SunBriteTV model supports SONY’s universal remote code. If SunBriteTV is not listed in the manufacturer list, look up SONY’s codes in your universal remote’s hand book. This TV will turn off automatically if there’s no signal present for more than 15 minutes.
- Page 16 This SunBriteTV model supports SONY’s universal remote box is configured to output correctly to the TV. code. If SunBriteTV is not listed in the manufacturer list, look up SONY’s codes in your universal remote’s hand book. This SunBriteTV model supports SONY’s universal remote code.
- Page 17 The TV will turn off automatically if there’s no signal present for more than 15 minutes. If HDMI 1 is already occupied, use HDMI 2 as your connection port, and switch source to HDMI 2. Continued on next page SunBriteTV Model SB-2220HD Operator’s Manual Page 17...
-
Page 18: Ir Emitter Connections
* Neither the emitter or control block are supplied by SunBriteTV. See instructions that come with your IR IR Emitter Tie-Down Block Place IR Emitter Cable... -
Page 19: Side Panel And Front Panel Controls
In OSD menu, both keys are used to navigate within the menu. Adjusts volume. Vol+ /Vol- In OSD menu, both keys are used to navigate within menu. Vol+ is used to select the highlighted options. Front Panel IR Sensor SunBriteTV Model SB-2220HD Operator’s Manual Page 19... -
Page 20: Remote Control Guide
The functionality of the remote control is under warranty for one year. If the remote control malfunctions within the one-year warranty period, replace the batteries with new long-life alkaline batteries. If the problem is not solved with new batteries, contact the SunBriteTV Customer Care Center. SunBriteTV will repair or replace the remote control at SunBriteTV’s option. -
Page 21: On-Screen Display Controls
Digital Output and Audio Closed Caption Scanning Channels, Brightness, Color, Language, etc. Menu Settings Editing Channels, Sharpness. Language, Checking Signal Advanced Video controls: and Transparency Strength, etc. Color Temper, Zoom Mode, Noise Reduction and Adaptive Contrast SunBriteTV Model SB-2220HD Operator’s Manual Page 21... -
Page 22: Picture Menu
On-Screen Display Menu - Picture Menu Picture Menu From the PICTURE menu you can adjust PICTURE MODE, CONTRAST, BRIGHTNESS, COLOR, TINT SHARPNESS, ADVANCED VIDEO. Picture Mode 1. Press qp buttons to move the cursor to the item to be selected. 2. -
Page 23: Sound Menu
The language code must be programmed for this option to be available. If there is no selection it has not been programmed for this model. Note: Digital Out and Audio Language are available only in DTV. SunBriteTV Model SB-2220HD Operator’s Manual Page 23... -
Page 24: Setting Menu
Adjusting On-Screen Displays – Setting Menu Setting Menu Parental Controls 1. Press qp buttons to move the cursor to the item to be selected. Press qp buttons to Parental Controls, then use 2. Press u buttons to make the desired adjustments. u button to change Parental Control settings. - Page 25 ON or OFF. When System Lock is ON, Unrated programming cannot be accessed Press the u button to enter the submenu list to set the US rating functions. (US Menu is on the next page.) SunBriteTV Model SB-2220HD Operator’s Manual Page 25...
- Page 26 Adjusting On-Screen Displays – Setting Menu Parental Control - US Menu From the US Menu, press qp buttons to the TV function. Press u button to enter the submenu shown below. TV Menu TV-Y: For all children TV-Y7: For children above 7 TV-g: For anyone TV-Pg: Children can watch with guardian TV-14: Need parent guide...
- Page 27 When Daylight Saving Time is ON, the clocks are set one hour ahead of local standard time. Clock The time is decoded from the digital signal and displayed (such as DTV,HDMI) This item is available only in English. SunBriteTV Model SB-2220HD Operator’s Manual Page 27...
- Page 28 Adjusting On-Screen Displays – Setting Menu Closed Caption From the Setup Menu, press qp buttons to Closed Caption, then press u button to enter the Closed Caption submenu shown below. To turn on the CC Mode. Closed Caption Submenu CC Mode Press qp buttons and then use t u buttons to turn the CC Mode ON or OFF Basic Selection...
-
Page 29: Channel Menu
Press the u button to enter the submenu list below Auto Scan Cable system Press the t u button to select the cable system. Start to Scan Press the u button to start auto scan. SunBriteTV Model SB-2220HD Operator’s Manual Page 29... - Page 30 Adjusting On-Screen Displays – Channel Menu Favorite Favorite From the Channel Menu, press the qp buttons to select Favorite. Press the u button to enter the submenu shown at left. Press qp keys to select channels, and press OK to add current channel to Favorite Channel Table.
-
Page 31: Trouble Shooting
If you have cable, call the cable provider and ask to have your signal strength checked. TV’s Universal This television follows SONY’s universal remote code. If SunBriteTV is not listed in Remote Code the manufacturer list, look up SONY’s codes in your universal remote’s hand book. -
Page 32: Care Of Sunbritetv
Also available is SunBriteTV’s special outdoor formula Cleaning Kit. OUTDOOR DUST COVER When the TV is not in use, we recommend that you keep it covered with a SunBriteTV fitted Outdoor Dust Cover. This will keep the TV clean, protect the finish and ensure years of maximum enjoyment. -
Page 33: Specifications
Two-year, in-factory, parts and labor Warranty, Commercial One year, in factory, parts and labor Mount Pattern 75mm x 75mm or 100mm x 100mm Specifications are subject to change. *Temperature range is for operation in shaded location. SunBriteTV Model SB-2220HD Operator’s Manual Page 33... -
Page 34: Features Information And Instructions
Programming Other Manufacturers’ Universal Remote Control Devices When programming a DirectTV, local cable universal remote control or Control system, you may find that SunBriteTV is not on the list of TV manufacturers. If that is the case, this model supports SONY’s universal remote code. -
Page 35: Appendix B - Rs232 Control Codes
[ESC]a 1B 61 [ASPECT] Enter [ESC]e 1B 65 [ENTER] Info [ESC]i 1B 69 [INFO] [ESC]c 1B 63 [CC] Sleep [ESC]z 1B 7A [SLEEP] Picture [ESC]p 1B 70 [PICT] Sound [ESC]s 1B 73 [SND] SunBriteTV Model SB-2220HD Operator’s Manual Page 35... - Page 36 www.sunbritetv.com...
