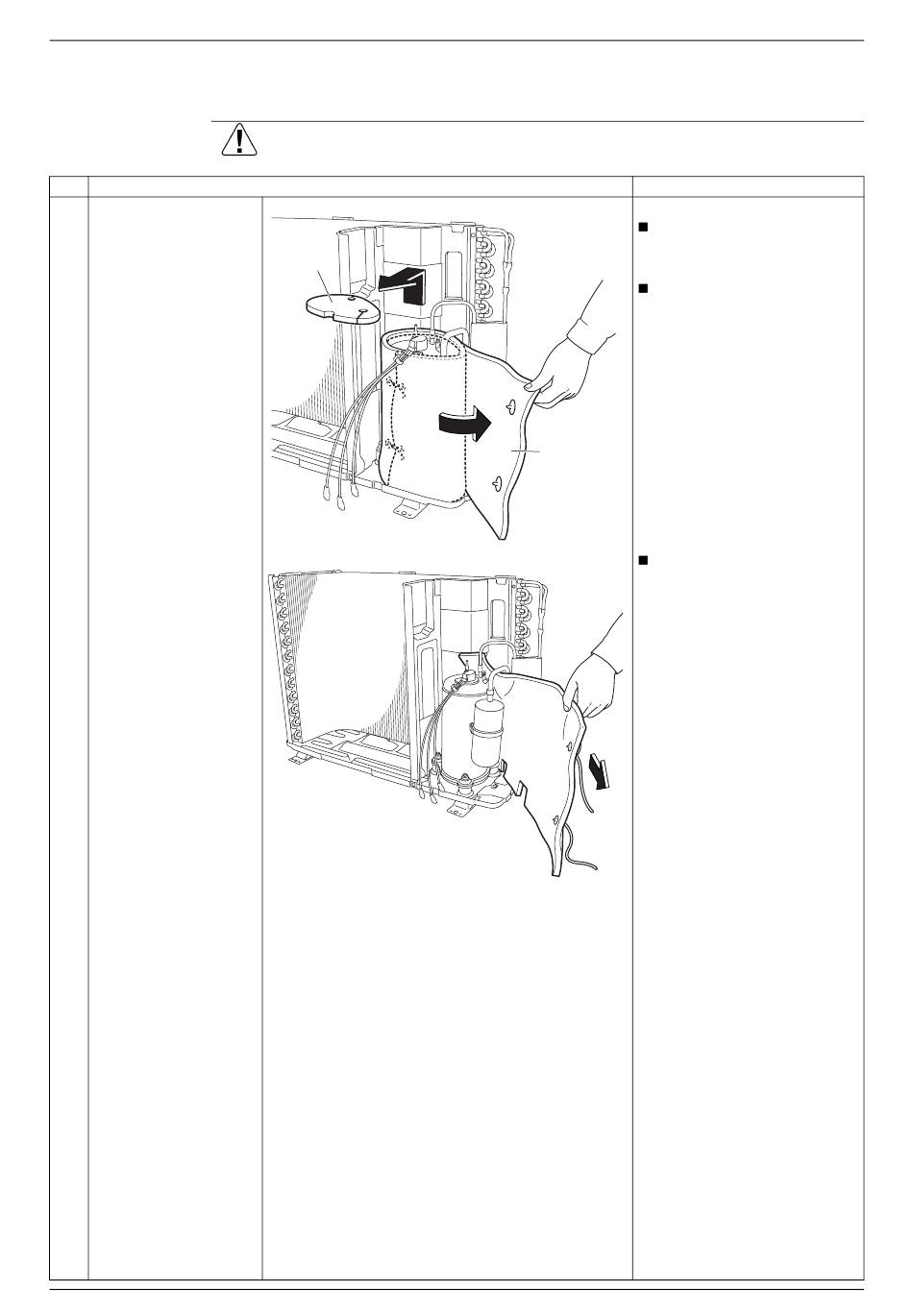

3. Removal of Sound Blankets

Procedure
Step
Remove the sound
1
blanket (top).
Untie the 2 strings and
2
open the sound blanket
(body).
3 Remove the sound
blanket (body).
Removal Procedure
Warning Be sure to wait for 10 minutes or more after turning off all power
supplies before disassembling work.
Procedure
Sound
blanket
(top)
Removal of Sound Blankets
Preparation
Remove the outer panels
according to the "Removal of
Outer Panels / Fan Motor".
Remove the electrical
components ASSY
according to the "Removal of
Electrical Components
ASSY".
Sound
blanket
(body)
(R15242)
Since the piping ports on the
sound blanket are torn
easily, remove the sound
blanket carefully.
(R15243)
Points
