Falcon 24 Series Quick Start Manual

Exit alarm (ea) kit

Advertisement

Quick Links

*47344937*
47344937
9 Volt Battery
Battery Clip
Alarm Hardware
Cylinder Nut
Important Note:
1
Remove and discard existing cover plate.
A
b
a
B

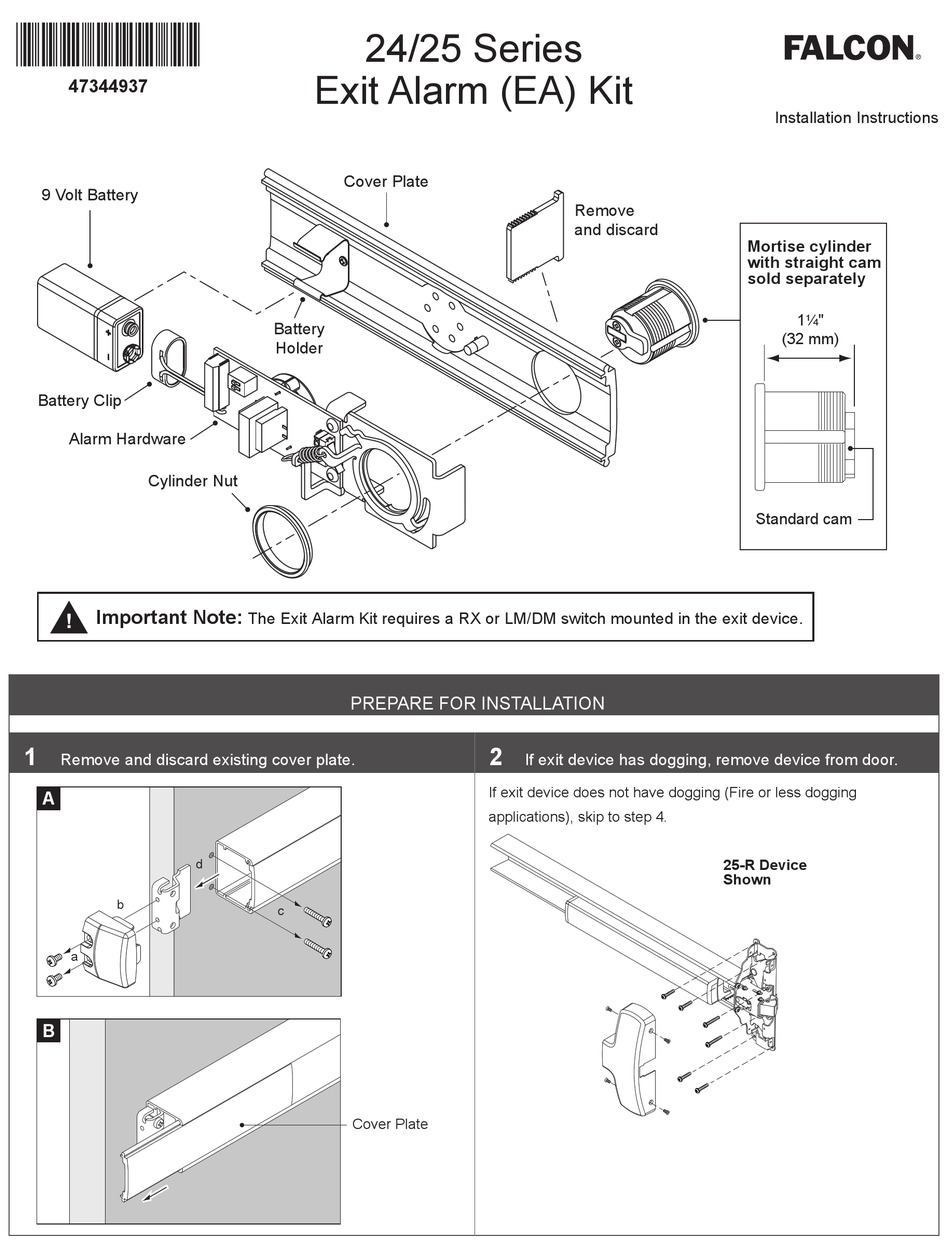

24/25 Series
Exit Alarm (EA) Kit
Cover Plate
Battery
Holder
The Exit Alarm Kit requires a RX or LM/DM switch mounted in the exit device.
PREPARE FOR INSTALLATION
d
c
Cover Plate
Remove
and discard
2
If exit device has dogging, remove device from door.
If exit device does not have dogging (Fire or less dogging
applications), skip to step 4.
Installation Instructions
Mortise cylinder
with straight cam
sold separately
1¹⁄₄"
(32 mm)
Standard cam
25-R Device
Shown

Advertisement

loading
Need help?

Need help?

Do you have a question about the 24 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Falcon 24 Series

  • Page 1 *47344937* 24/25 Series Exit Alarm (EA) Kit 47344937 Installation Instructions Cover Plate 9 Volt Battery Remove and discard Mortise cylinder with straight cam sold separately 1¹⁄₄" Battery (32 mm) Holder Battery Clip Alarm Hardware Cylinder Nut Standard cam Important Note: The Exit Alarm Kit requires a RX or LM/DM switch mounted in the exit device.
  • Page 2 Remove and discard dogging assembly. ASSEMBLE AND INSTALL Dogging assemblies are shown below. Assemble the exit alarm unit with the parts in order as shown below. Ensure cylinder nut is adequately tightened down. A loose cylinder Cut new cover plate as needed to match exit device Cylinder nut nut can result in inconsistent length.
  • Page 3 Adjust alarm reset time, as needed. Reinstall end cap bracket. Adjust dip switches as shown below to adjust reset time. L Auto Reset Time (minutes): Amount of time alarm will sound before resetting automatically (no manual intervention). S2-2 S2-1 Reset NONE Partially install new cover plate.
  • Page 4 Changing the Battery Operating Instructions If the battery is low, a beep will sound and the LED will flash every 10 to 15 seconds until the battery is changed. The low battery alarm Insert the key into the cylinder and arm the unit by can be stopped by disarming the unit.

This manual is also suitable for:

25 series
